HM1F41 Series

Catalog

CONN RCPT HIGH SPEED 24P EDGE MT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Material Flammability Rating	Connector Type	Connector Style	Pitch [x]	Pitch [x]	Termination	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Type	Color	Number of Positions	Number of Positions Loaded	Current Rating (Amps)

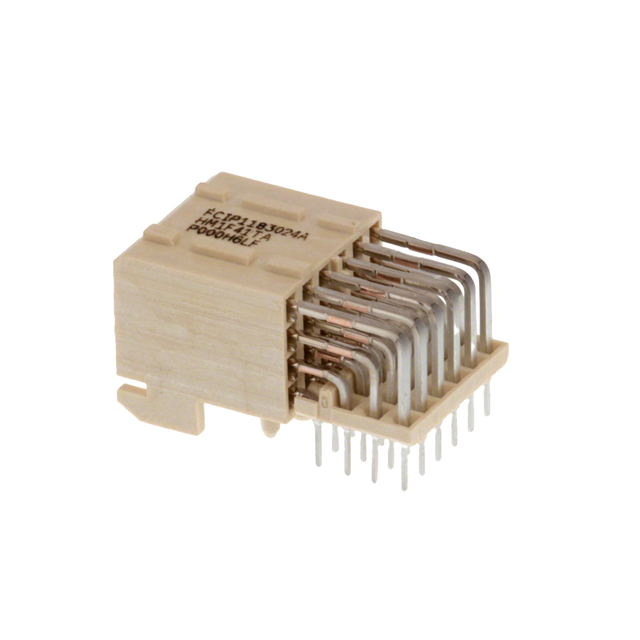

Amphenol ICC (FCI) HM1F41TAP000H6LF	-55 C	105 ░C	1000 VDC	UL94 V-0	Receptacle Female Sockets	High Speed	0.079 in	2 mm	Solder	Board Guide Spacer	30 Áin	0.76 Ám	Gold	Board Edge Right Angle Through Hole	Natural	24	All
Amphenol ICC (FCI) HM1F41FDP131H6LF	-55 C	125 °C		UL94 V-0	Receptacle Female Sockets	Blade Power	0.079 in	2 mm	Press-Fit	Board Guide				Board Edge Right Angle Through Hole	Natural	12	All	1.5 A
Amphenol ICC (FCI) HM1F41TAPC61H6LF					Receptacle Female Sockets	High Speed	0.079 in	2 mm	Solder	Board Guide Spacer	30 Áin	0.76 Ám	Gold Gold GXT™	Board Edge Right Angle Through Hole	Natural	24	All
Amphenol ICC (FCI) HM1F41TBP400H6PLF					Receptacle Female Sockets		0.079 in	2 mm	Press-Fit	Board Guide Spacer	30 Áin	0.76 Ám	Gold	Board Edge Right Angle Through Hole	Natural	24	All
Amphenol ICC (FCI) HM1F41TAR000H6LF
Amphenol ICC (FCI) HM1F41TBP000H6LF	-55 C	85 °C	1000 VDC	UL94 V-0	Receptacle Female Sockets	High Speed	0.079 in	2 mm	Solder	Board Guide Spacer	29.5 µin	0.75 µm	Gold	Board Edge Right Angle Through Hole	Natural	24	All
