322-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 24POS 0.1 GOLD PCB

Part	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Mounting Type	Termination	Insulation Color	Fastening Type	Number of Positions Loaded	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions	Contact Finish - Post	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Termination Post Length	Termination Post Length	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Contact Material - Post	Contact Material - Mating	Type	Housing Material	Number of Positions [custom]
Mill-Max Manufacturing Corp. 322-13-124-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	Beryllium Copper	Circular	Receptacle	0.1 "	2.54 mm	0.76 Ám	30 Áin	Female Socket	Through Hole	Wire Wrap	Black	Push-Pull	All	3 A	9.4 mm	0.37 in	Gold	24	Gold	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 322-13-154-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	Beryllium Copper	Circular	Receptacle	0.1 "	2.54 mm	0.76 Ám	30 Áin	Female Socket	Through Hole	Wire Wrap	Black	Push-Pull	All	3 A	9.4 mm	0.37 in	Gold	54	Gold	1	-55 C	125 °C

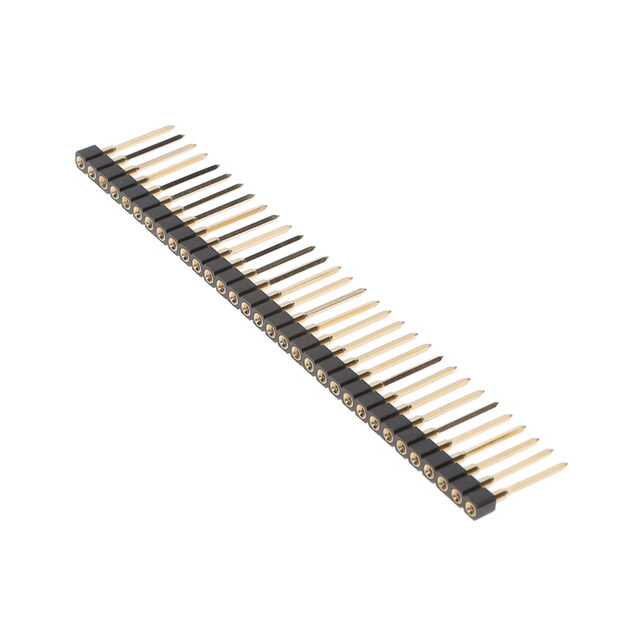

Mill-Max Manufacturing Corp. 322-13-132-41-001000		10 Áin	0.25 çm				0.1 "	2.54 mm	0.76 Ám	30 Áin		Through Hole	Wire Wrap				3 A			Gold		Gold		-55 C	125 °C	9.4 mm	0.37 in	0.1 in	2.54 mm	32	1 x 32	Brass Alloy	Beryllium Copper	SIP	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester
Mill-Max Manufacturing Corp. 322-13-160-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	Beryllium Copper	Circular	Receptacle	0.1 "	2.54 mm	0.76 Ám	30 Áin	Female Socket	Through Hole	Wire Wrap	Black	Push-Pull	All	3 A	9.4 mm	0.37 in	Gold	60	Gold	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 322-13-105-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	Beryllium Copper	Circular	Receptacle	0.1 "	2.54 mm	0.76 Ám	30 Áin	Female Socket	Through Hole	Wire Wrap	Black	Push-Pull	All	3 A	9.4 mm	0.37 in	Gold	5	Gold	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 322-13-112-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	Beryllium Copper	Circular	Receptacle	0.1 "	2.54 mm	0.76 Ám	30 Áin	Female Socket	Through Hole	Wire Wrap	Black	Push-Pull	All	3 A	9.4 mm	0.37 in	Gold	12	Gold	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 322-13-131-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	Beryllium Copper	Circular	Receptacle	0.1 "	2.54 mm	0.76 Ám	30 Áin	Female Socket	Through Hole	Wire Wrap	Black	Push-Pull	All	3 A	9.4 mm	0.37 in	Gold		Gold	1	-55 C	125 °C											31
Mill-Max Manufacturing Corp. 322-13-101-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	Beryllium Copper	Circular	Receptacle			0.76 Ám	30 Áin	Female Socket	Through Hole	Wire Wrap	Black	Push-Pull	All	3 A	9.4 mm	0.37 in	Gold	1	Gold	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 322-13-135-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	Beryllium Copper	Circular	Receptacle	0.1 "	2.54 mm	0.76 Ám	30 Áin	Female Socket	Through Hole	Wire Wrap	Black	Push-Pull	All	3 A	9.4 mm	0.37 in	Gold	35	Gold	1	-55 C	125 °C
Mill-Max Manufacturing Corp. 322-13-141-41-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	Beryllium Copper	Circular	Receptacle	0.1 "	2.54 mm	0.76 Ám	30 Áin	Female Socket	Through Hole	Wire Wrap	Black	Push-Pull	All	3 A	9.4 mm	0.37 in	Gold	41	Gold	1	-55 C	125 °C
