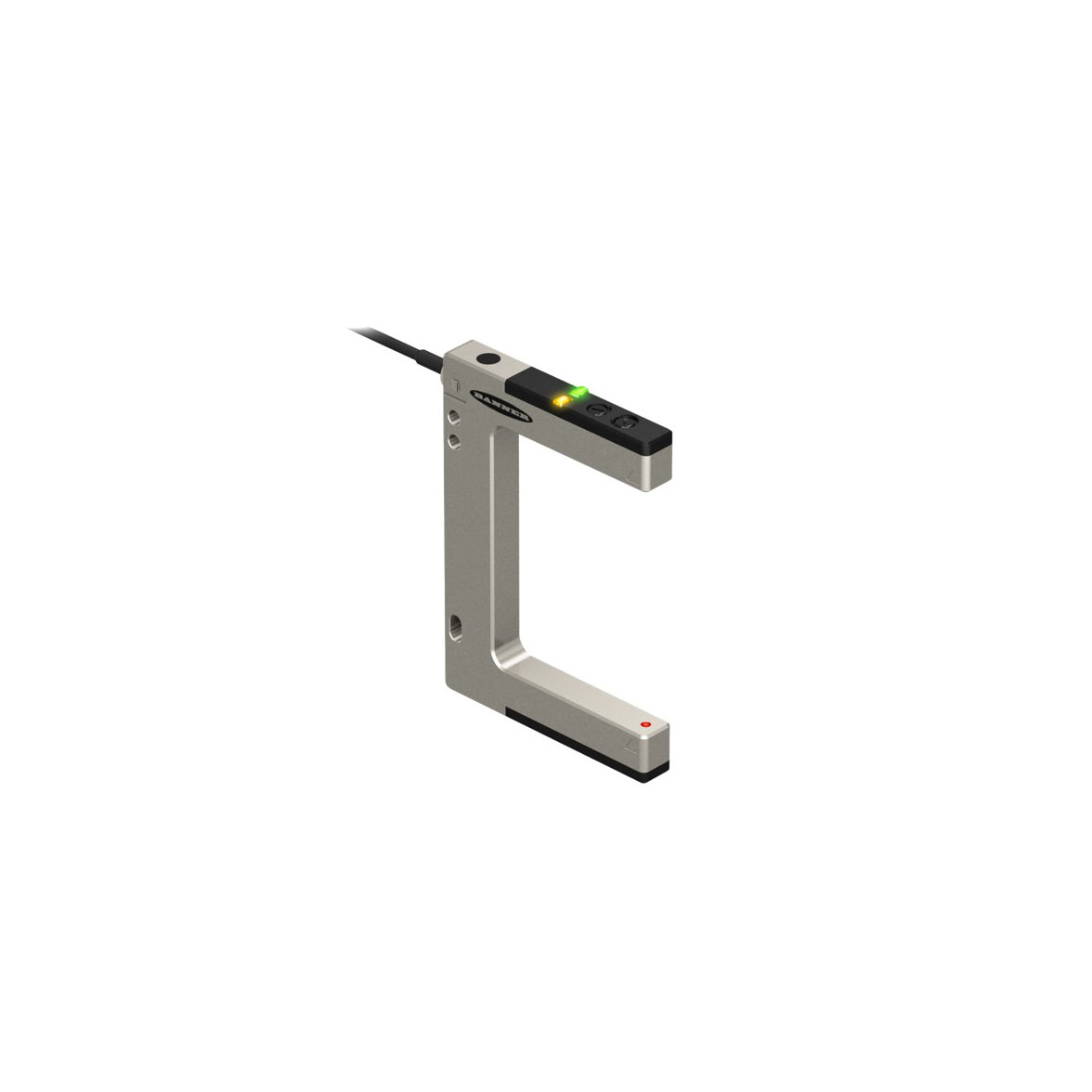

SLM80B6 Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K
DISTANCE SENSOR MODULES - FINISHED UNITS SLM SERIES: RUGGED NICKEL-PLATED METAL FIXED-DISTANCE SLOT SENSOR; SLOT WIDTH:80 MM; INPUT: 10-30 V DC; OUTPUT: BIPOLAR: 1 NPN; 1 PNP; 9 M (30 FT) CABLE
| Part | Ingress Protection | Light Source | Voltage - Supply [Min] | Voltage - Supply [Max] | Cable Length | Cable Length | Adjustment Type | Output Configuration | Sensing Distance | Sensing Distance | Connection Method | Response Time | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | IEC IEC IP67 IP67 NEMA 6P | LED | 10 VDC | 30 VDC | 354.33 in | 9 m | Adjustable Potentiometer | NPN/PNP - Dark-ON/Light-ON - Selectable | 3.15 " | 80 mm | Cable | 500 µs | -20 ░C | 60 °C |
