86704CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

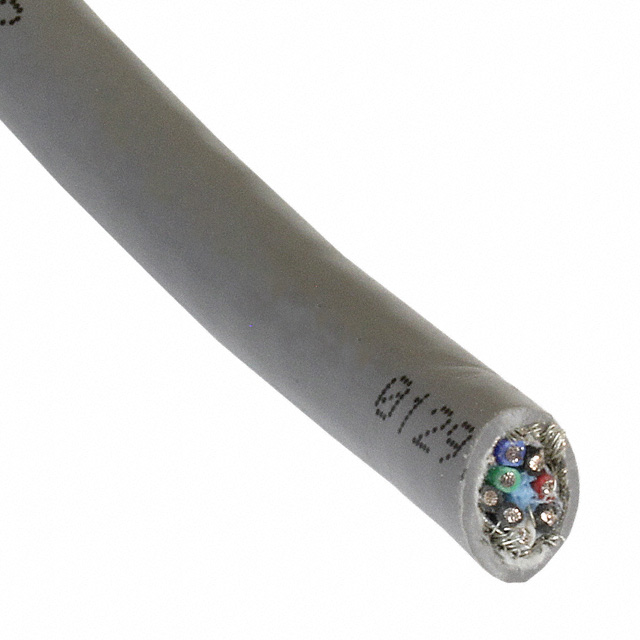

MULTI-PAIR 8CON 22AWG SLATE 100'
| Part | Shield Coverage | Shield Material | Length [x] | Length [x] | Shield Type | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Cable Type | Features | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Jacket (Insulation) Material | Ratings | Voltage | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % 100 % | Aluminum Copper Tinned | 100 ft | 30.5 m | Braid Foil | Copper Tinned | 1.016 mm | 0.04 in | Slate | Multi-Pair | Biological Compatibility Drain Wire | 8 | 8.23 mm | 0.324 " | 34 AWG | 19 | 22 AWG | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2661 | 300 VDC | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | 85 % 100 % | Aluminum Copper Tinned | Braid Foil | Copper Tinned | 1.016 mm | 0.04 in | Slate | Multi-Pair | Biological Compatibility Drain Wire | 8 | 8.23 mm | 0.324 " | 34 AWG | 19 | 22 AWG | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2661 | 300 VDC | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
