LMZ12002EXT Series

2A SIMPLE SWITCHER Power Module with 20V Maximum Input Voltage for Military and Rugged App

Catalog

2A SIMPLE SWITCHER Power Module with 20V Maximum Input Voltage for Military and Rugged App

Part	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Mounting Type	Efficiency	Current - Output (Max) [Max]	Package / Case	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Control Features	Voltage - Input (Min) [Min]	Applications	Number of Outputs	Supplier Device Package	Type	Board Type	Main Purpose	Supplied Contents	Regulator Topology	Outputs and Type	Outputs and Type	Utilized IC / Part	Current - Output	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Frequency - Switching [Max]
Texas Instruments LMZ12002TZE-ADJ/NOPB	0.8 V	6 V	Surface Mount	92 %	2 A	TO-PMOD-7 Power Module	UVLO	125 °C	-40 °C	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	20 V	Active High Enable	4.5 V	ITE (Commercial)	1	TO-PMOD-7	Non-Isolated PoL Module

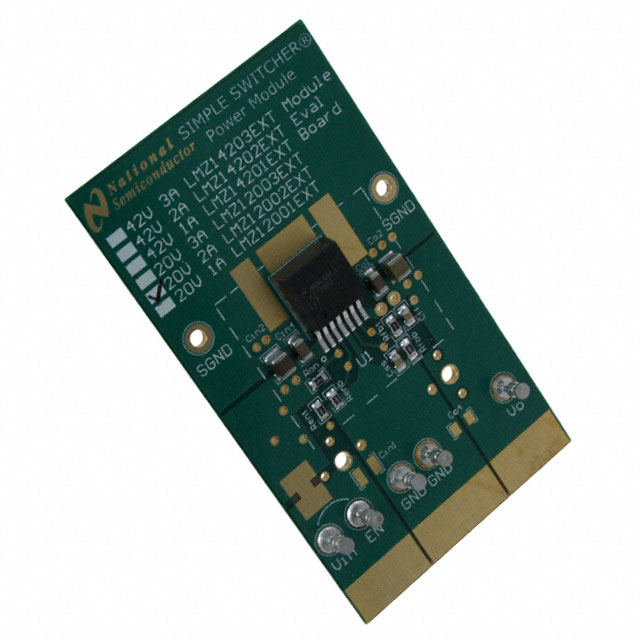

Texas Instruments LMZ12002EXTEVAL/NOPB																							Fully Populated	DC/DC Step Down	Board(s)	Buck	Non-Isolated	1	LMZ12002EXT	2 A	4.5 V	20 V	1.8 V	1 MHz
Texas Instruments LMZ12002EXTTZE/NOPB	0.8 V	6 V	Surface Mount	92 %	2 A	TO-PMOD-7 Power Module	UVLO	125 °C	-55 °C	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	20 V	Active High Enable	4.5 V	ITE (Commercial)	1	TO-PMOD-7	Non-Isolated PoL Module
Texas Instruments LMZ12002TZ-ADJ/NOPB	0.8 V	6 V	Surface Mount	92 %	2 A	TO-PMOD-7 Power Module	UVLO	125 °C	-40 °C	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	20 V	Active High Enable	4.5 V	ITE (Commercial)	1	TO-PMOD-7	Non-Isolated PoL Module
Texas Instruments LMZ12002EXTTZ/NOPB	0.8 V	6 V	Surface Mount	92 %	2 A	TO-PMOD-7 Power Module	UVLO	125 °C	-55 °C	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	20 V	Active High Enable	4.5 V	ITE (Commercial)	1	TO-PMOD-7	Non-Isolated PoL Module
Texas Instruments LMZ12002TZX-ADJ/NOPB	0.8 V	6 V	Surface Mount	92 %	2 A	TO-PMOD-7 Power Module	UVLO	125 °C	-40 °C	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	20 V	Active High Enable	4.5 V	ITE (Commercial)	1	TO-PMOD-7	Non-Isolated PoL Module

Catalog

2A SIMPLE SWITCHER Power Module with 20V Maximum Input Voltage for Military and Rugged App

Key Features

• Junction Temperature Range –55°C to 125°CIntegrated Shielded InductorSimple PCB LayoutFlexible Start-up Sequencing Using External Soft-Start Capacitor and Precision EnableProtection Against Inrush Currents and FaultsSuch as Input UVLO and Output Short CircuitSingle Exposed Pad and Standard Pinout for EasyMounting and ManufacturingFast Transient Response for FPGAs and ASICsLow Output Voltage RipplePin-to-Pin Compatible With Family Devices:LMZ14203EXT/2EXT/1EXT (42-V Maximum 3A, 2 A, 1 A)LMZ14203/2/1 (42-V Maximum 3 A, 2 A, 1 A)LMZ12003/2/1 (20-V Maximum 3 A, 2 A, 1 A)Fully WEBENCH®Power Designer enabledLow Radiated Emissions and High RadiatedImmunityPasses Vibration Standard MIL-STD-883 Method2007.2 Condition A JESD22–B103B Condition 1Passes Drop Standard MIL-STD-883 Method2002.3 Condition B JESD22–B110 Condition BElectrical Specifications12-W Maximum Total Power OutputUp to 2-A Output CurrentInput Voltage Range 4.5 V to 20 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 92%Junction Temperature Range –55°C to 125°CIntegrated Shielded InductorSimple PCB LayoutFlexible Start-up Sequencing Using External Soft-Start Capacitor and Precision EnableProtection Against Inrush Currents and FaultsSuch as Input UVLO and Output Short CircuitSingle Exposed Pad and Standard Pinout for EasyMounting and ManufacturingFast Transient Response for FPGAs and ASICsLow Output Voltage RipplePin-to-Pin Compatible With Family Devices:LMZ14203EXT/2EXT/1EXT (42-V Maximum 3A, 2 A, 1 A)LMZ14203/2/1 (42-V Maximum 3 A, 2 A, 1 A)LMZ12003/2/1 (20-V Maximum 3 A, 2 A, 1 A)Fully WEBENCH®Power Designer enabledLow Radiated Emissions and High RadiatedImmunityPasses Vibration Standard MIL-STD-883 Method2007.2 Condition A JESD22–B103B Condition 1Passes Drop Standard MIL-STD-883 Method2002.3 Condition B JESD22–B110 Condition BElectrical Specifications12-W Maximum Total Power OutputUp to 2-A Output CurrentInput Voltage Range 4.5 V to 20 VOutput Voltage Range 0.8 V to 6 VEfficiency up to 92%

Description

The LMZ12002EXT SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 2-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ12002EXT is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ12002EXT can accept an input voltage rail between 4.5 V and 20 V, and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ12002EXT only requires three external resistors and four external capacitors to complete the power solution. The LMZ12002EXT is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short-circuit protection, output current limit, and the device allows start-up into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz. The LMZ12002EXT SIMPLE SWITCHER®power module is an easy-to-use step-down DC-DC solution capable of driving up to 2-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ12002EXT is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ12002EXT can accept an input voltage rail between 4.5 V and 20 V, and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ12002EXT only requires three external resistors and four external capacitors to complete the power solution. The LMZ12002EXT is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short-circuit protection, output current limit, and the device allows start-up into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz.
