PV3H2 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON DPDT 2A 48V

Part	Mechanical Life	Electrical Life	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Type	Ingress Protection	Type	Actuator Marking	Circuit	Mounting Type	Illumination Voltage (Nominal)	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap

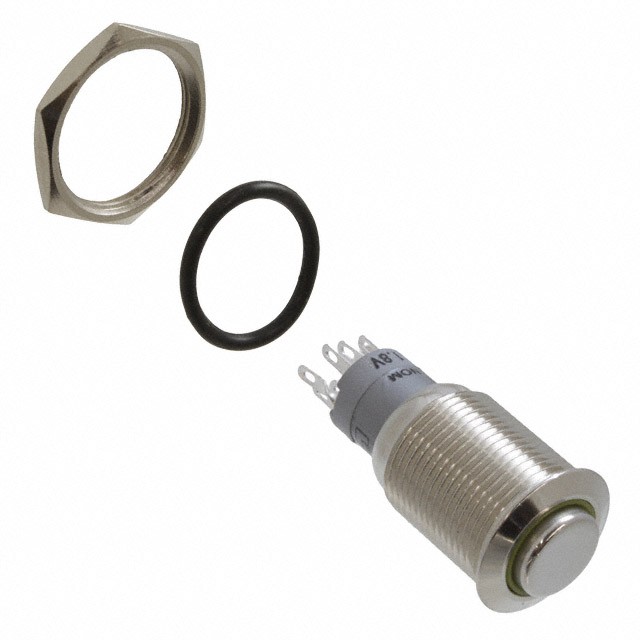

E-Switch PV3H2H0NN-351	200000 Cycles	50000 Cycles	LED Yellow	55 °C	-20 ░C	Solder Lug	Button Round	IP40	Anti-Vandal Illuminated	No Marking	DPDT	Panel Mount Front	1.8 VDC	2 A	48 V	On-Mom	16 mm	Silver

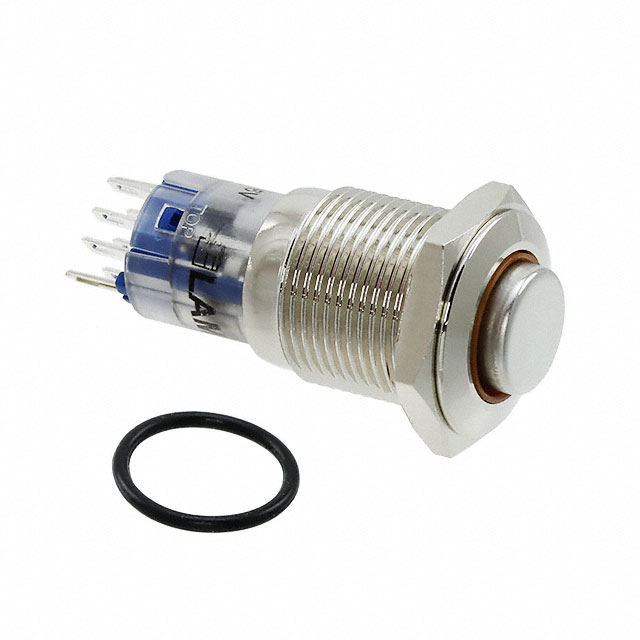

E-Switch PV3H2H0NN-323	200000 Cycles	50000 Cycles	LED Orange	55 °C	-20 ░C	Solder Lug	Button Round	IP40	Anti-Vandal Illuminated	No Marking	DPDT	Panel Mount Front	6 VDC	2 A	48 V	On-Mom	16 mm	Silver

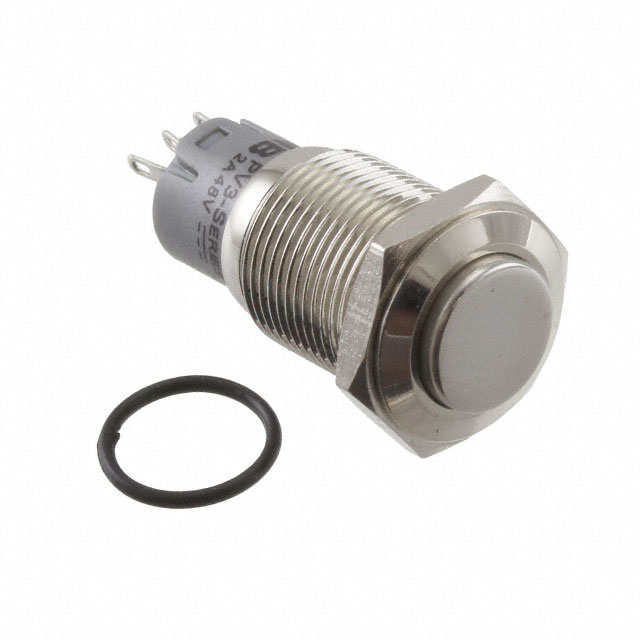

E-Switch PV3H2B0NNG	200000 Cycles	50000 Cycles		55 °C	-20 ░C	Solder Lug	Button Round	IP40	Anti-Vandal	No Marking	SPDT	Panel Mount Front		2 A	48 V	On-Mom	16 mm	Silver

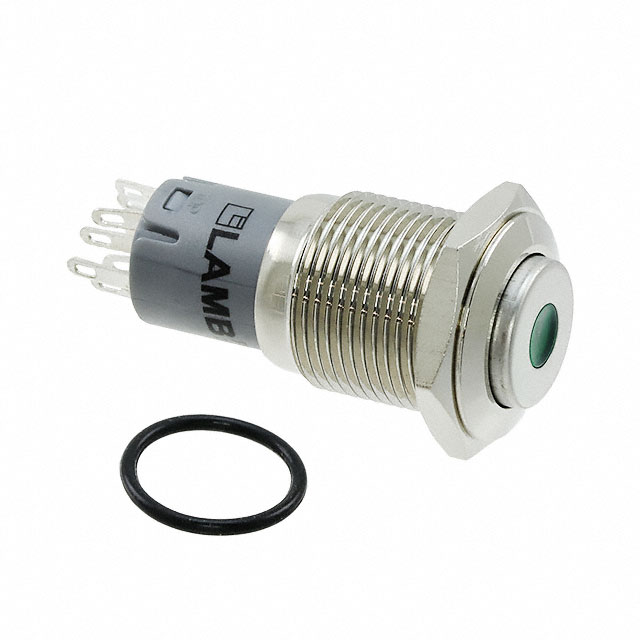

E-Switch PV3H2H0NN-234	200000 Cycles	50000 Cycles	Green LED	55 °C	-20 ░C	Solder Lug	Button Round	IP40	Anti-Vandal Illuminated	No Marking	DPDT	Panel Mount Front	12 VDC	2 A	48 V	On-Mom	16 mm	Silver

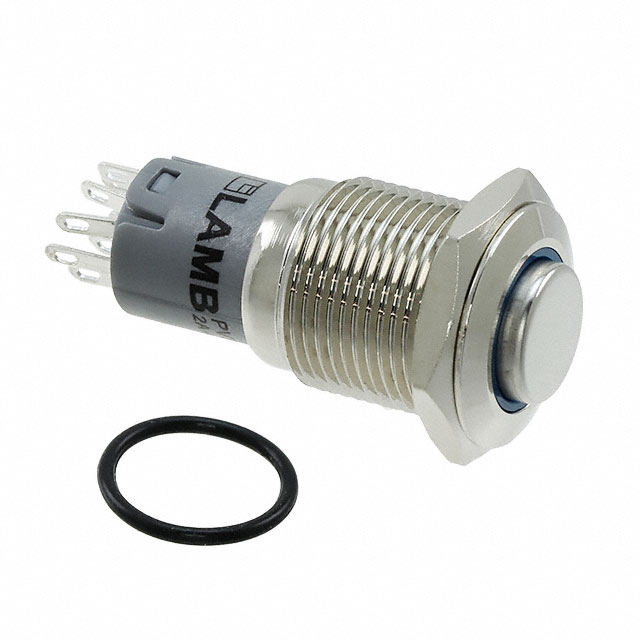

E-Switch PV3H2H0NN-344	200000 Cycles	50000 Cycles	Blue LED	55 °C	-20 ░C	Solder Lug	Button Round	IP40	Anti-Vandal Illuminated	No Marking	DPDT	Panel Mount Front	12 VDC	2 A	48 V	On-Mom	16 mm	Silver

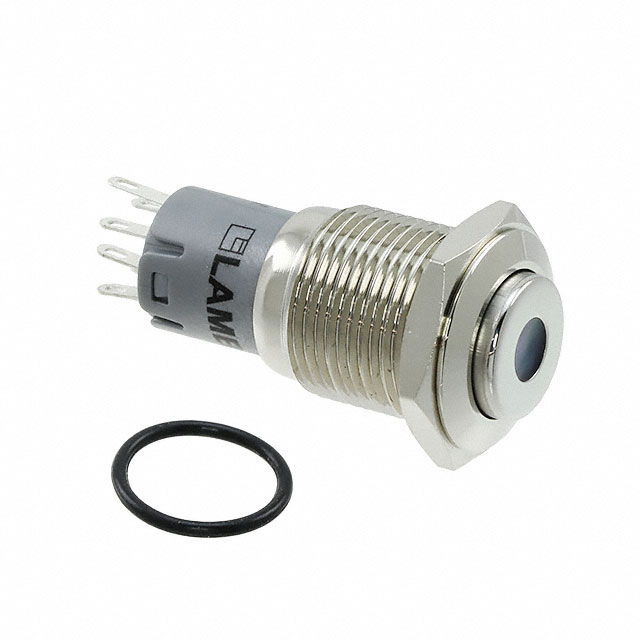

E-Switch PV3H2H0NN-244	200000 Cycles	50000 Cycles	Blue LED	55 °C	-20 ░C	Solder Lug	Button Round	IP40	Anti-Vandal Illuminated	No Marking	DPDT	Panel Mount Front	12 VDC	2 A	48 V	On-Mom	16 mm	Silver

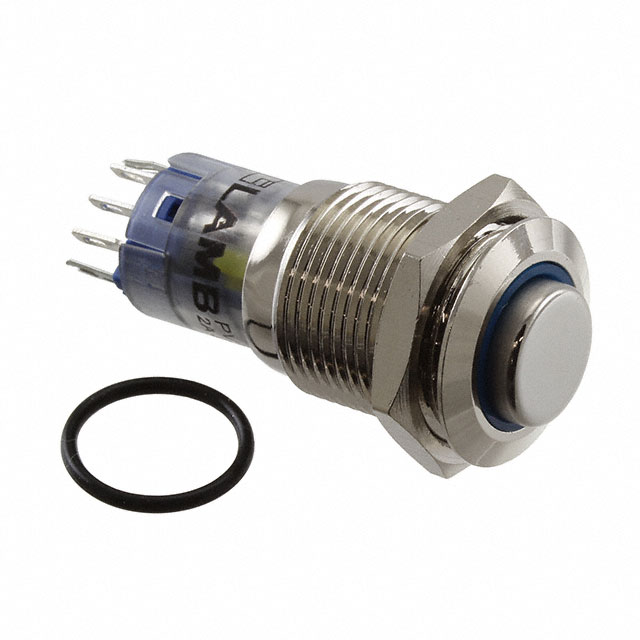

E-Switch PV3H2B0NN-341	200000 Cycles	50000 Cycles	Blue LED	55 °C	-20 ░C	Solder Lug	Button Round	IP40	Anti-Vandal Illuminated	No Marking	SPDT	Panel Mount Front	2.8 VDC	2 A	48 V	On-Mom	16 mm	Silver

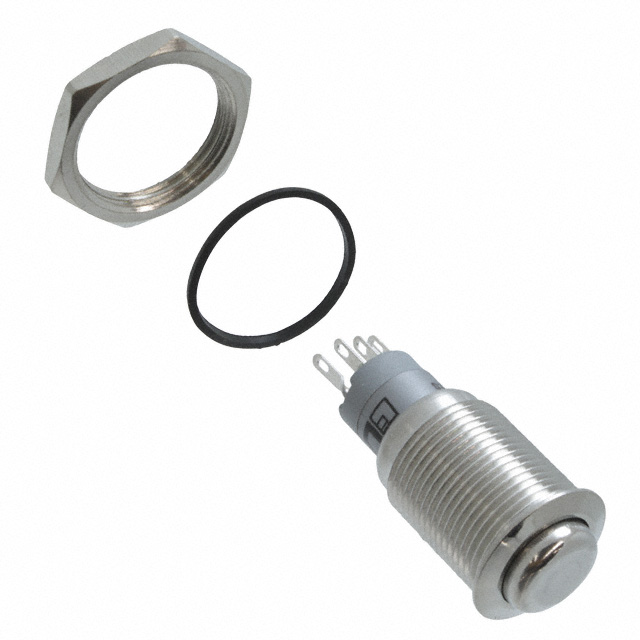

E-Switch PV3H2B0SS	200000 Cycles	50000 Cycles		55 °C	-20 ░C	Solder Lug	Button Round	IP40	Anti-Vandal	No Marking	SPDT	Panel Mount Front		2 A	48 V	On-Mom	16 mm	Silver

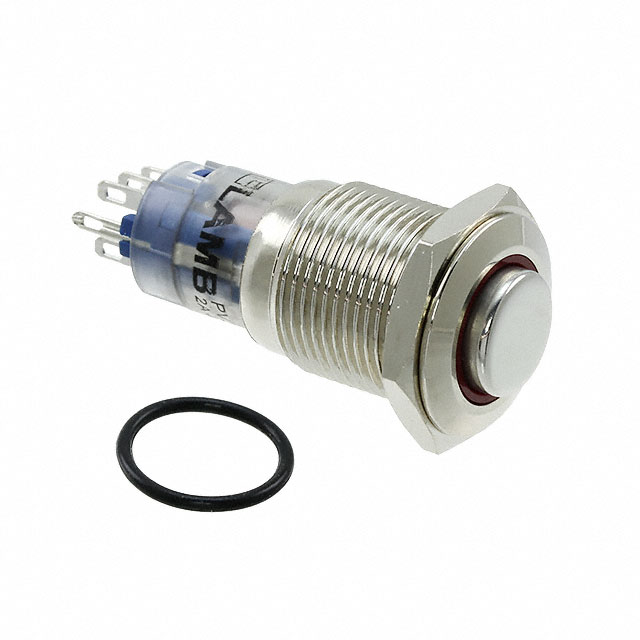

E-Switch PV3H2H0NN-314	200000 Cycles	50000 Cycles	LED Red	55 °C	-20 ░C	Solder Lug	Button Round	IP40	Anti-Vandal Illuminated	No Marking	DPDT	Panel Mount Front	12 VDC	2 A	48 V	On-Mom	16 mm	Silver
E-Switch PV3H2H0NN-311	200000 Cycles	50000 Cycles	LED Red	55 °C	-20 ░C	Solder Lug	Button Round	IP40	Anti-Vandal Illuminated	No Marking	DPDT	Panel Mount Front	1.8 VDC	2 A	48 V	On-Mom	16 mm	Silver
