9520 Series
Manufacturer: Belden Inc.
Beta
⌘K

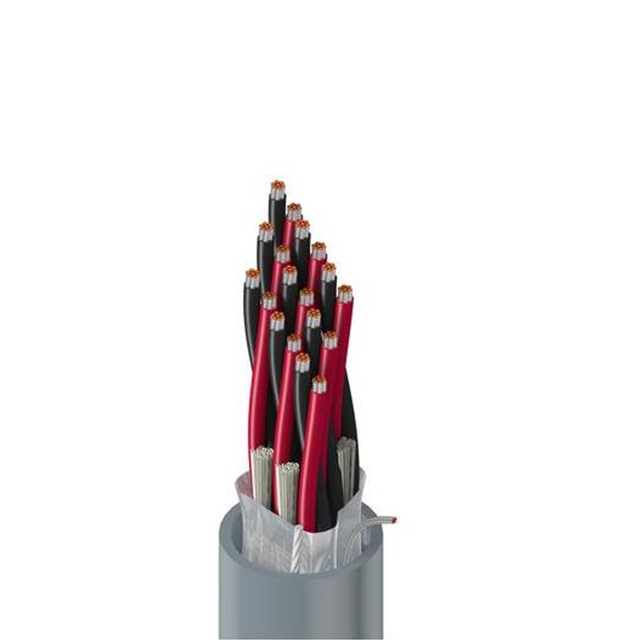

MULTI-PAIR 18COND 22AWG
| Part | Shield Coverage | Shield Material | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Ratings | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Conductor Material | Shield Type | Conductor Insulation | Wire Gauge | Voltage | Jacket (Insulation) Material | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Number of Conductors [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Instrumentation | 12.24 mm | 0.482 in | -30 ░C | 105 ░C | Multi-Pair | UL Style 2464 | 304.8 m | 1000 ft | 0.053 " | 1.346 mm | Drain Wire Flame Retardant Rip Cord | Copper Tinned | Foil | Poly-Vinyl Chloride (PVC) | 22 AWG | 300 VDC | Poly-Vinyl Chloride (PVC) | Chrome | 30 AWG | 7 | 18 | 9 |
