272C Series

Manufacturer: Serpac

Catalog

BOX PLASTIC 6.88"L X 4.88"W

Part	Weight	Weight	Features	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Design	Material	Ratings	Area (L x W)	Area (L x W)	Thickness	Thickness	Height [z]	Height [z]	Container Type	Color

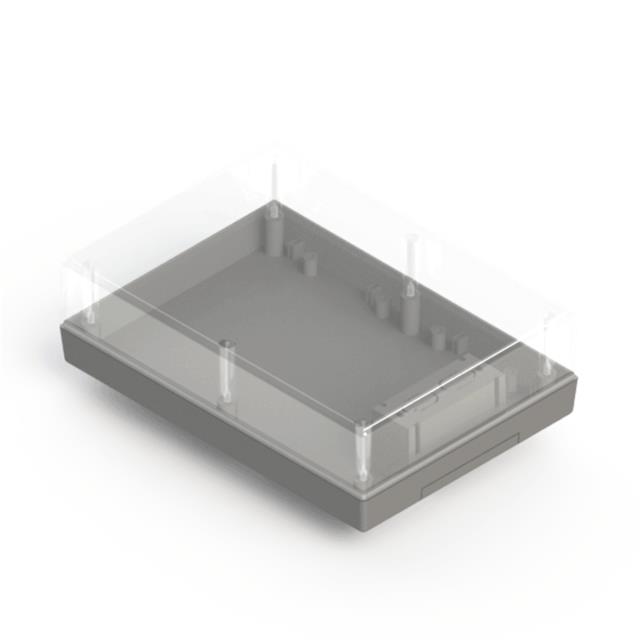

Serpac 272C,GY	0.441 lb	200.03 g	Battery Compartment PCB Supports	9 V	6.88 in	123.95 mm	174.75 mm	4.88 in	Hand Held Split Sides	Plastic Polycarbonate	IP40 NEMA 1	217 cm²	33.6 in²	2.54 mm	0.1 in	50.8 mm	2 in	Box	Clear Cover/Door Gray

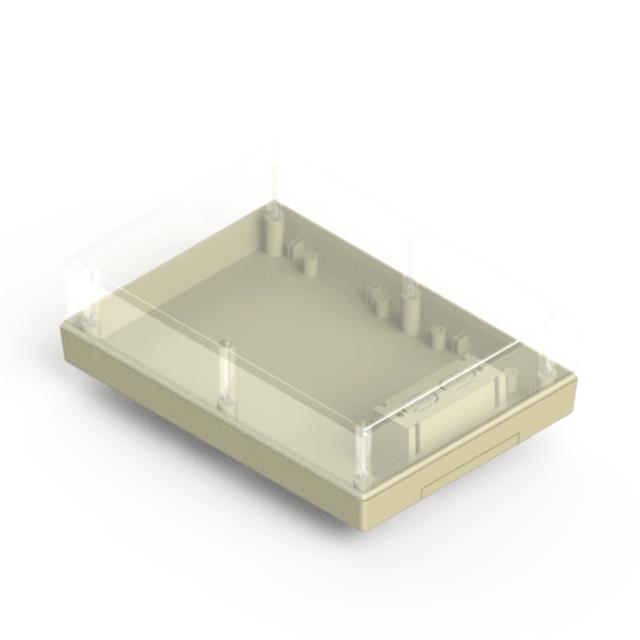

Serpac 272C,AL	0.441 lb	200.03 g	Battery Compartment PCB Supports	9 V	6.88 in	123.95 mm	174.75 mm	4.88 in	Hand Held Split Sides	Plastic Polycarbonate	IP40 NEMA 1	217 cm²	33.6 in²	2.54 mm	0.1 in	50.8 mm	2 in	Box

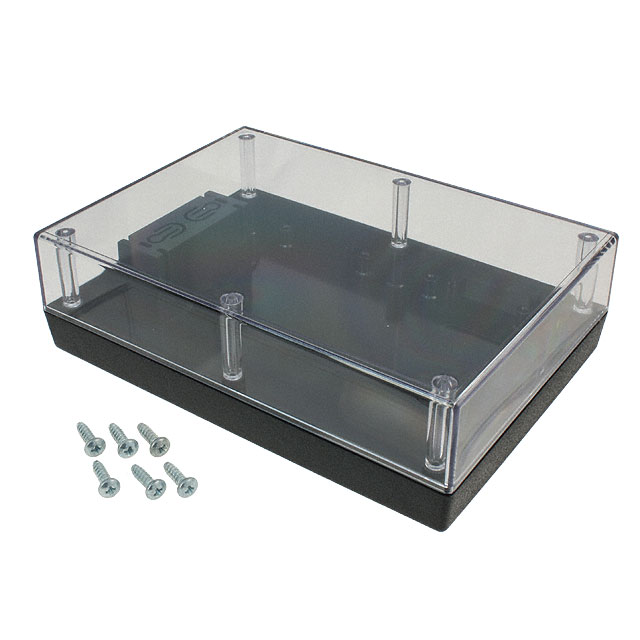

Serpac 272C,BK	0.441 lb	200.03 g	Battery Compartment PCB Supports	9 V	6.88 in	123.95 mm	174.75 mm	4.88 in	Hand Held Split Sides	Plastic Polycarbonate	IP40 NEMA 1	217 cm²	33.6 in²	2.54 mm	0.1 in	50.8 mm	2 in	Box	Black Clear Cover/Door
