1551629 Series

Catalog

CONN MICRO USB 2.0 TYPE AB RCP 5 POS 0.65MM SOLDER RA SMD 4 TERMINAL 1 PORT PACKAGE

Part	Mounting Feature	Current Rating (Amps)	Termination	Ingress Protection	Specifications	Number of Contacts	Insulation Color	Shielding	Number of Ports	Mounting Type	Contact Finish	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Shell/Shielding Material	Mating Cycles	Gender	Features	Connector Type

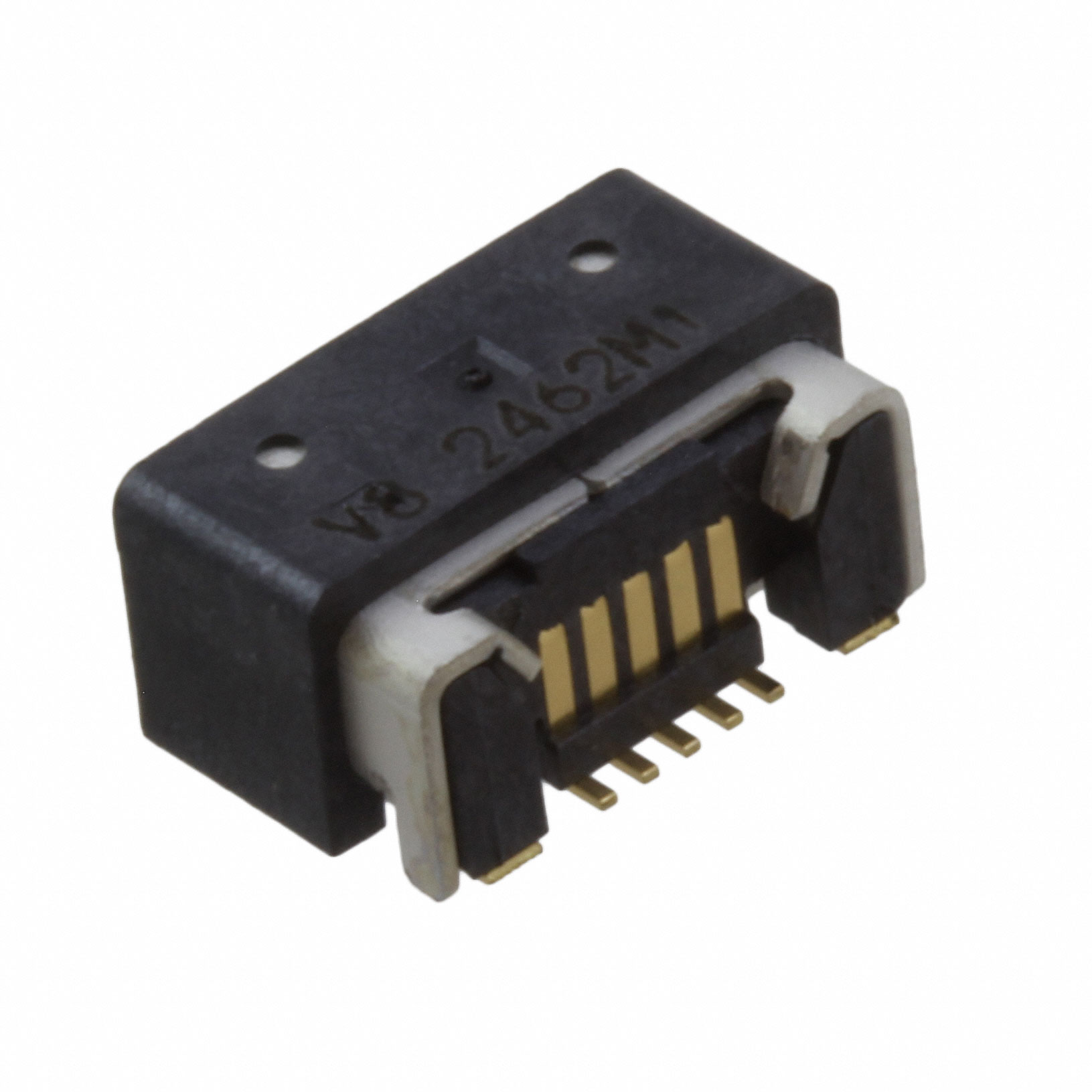

TE Connectivity Raychem Cable Protection 1551629-2	Horizontal	0.5 A 1 A 1.8 A	Solder	Splash Proof	USB 2.0	5	Black	Shielded	1	Surface Mount Right Angle	Gold	30 V	-30 ░C	85 °C	Stainless Steel	10000	Receptacle	Solder Retention	USB - micro AB

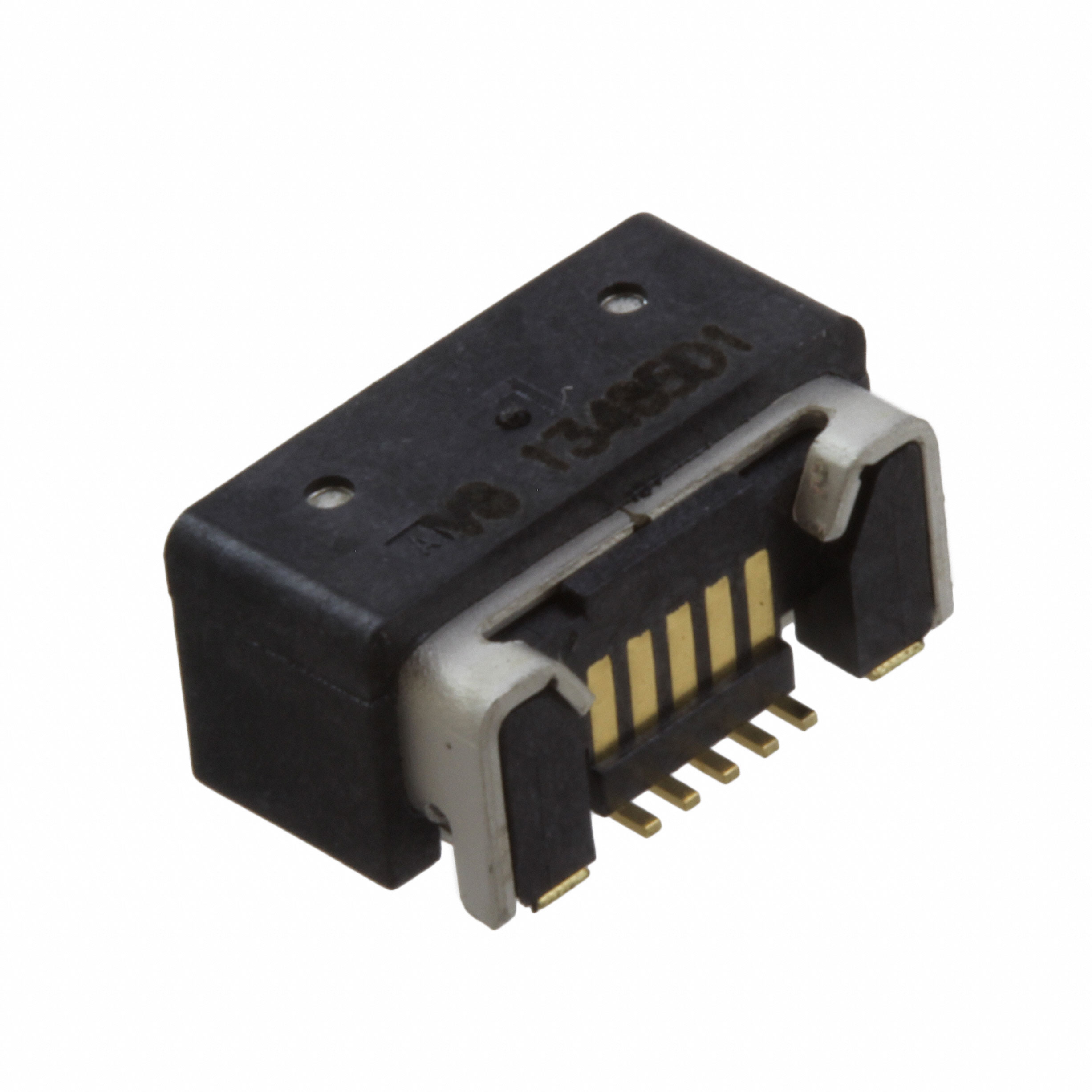

TE Connectivity Raychem Cable Protection 1551629-3	Horizontal	0.5 A 1 A 1.8 A	Solder	Splash Proof	USB 2.0	5	Black	Shielded	1	Surface Mount Right Angle	Gold	30 V	-30 ░C	85 °C	Stainless Steel	10000	Receptacle	Solder Retention	USB - micro AB
