4508HQ Series
Manufacturer: Sunon Fans
Beta
⌘K

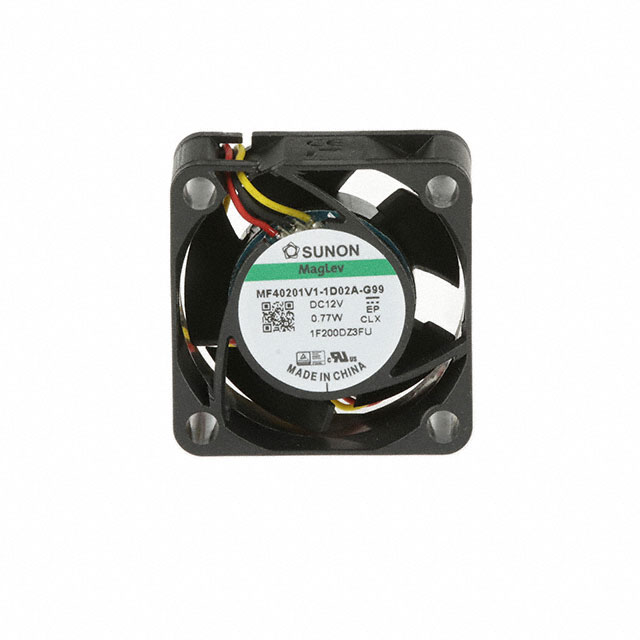

FAN AXIAL 40X20MM VAPO 12VDC
| Part | Material - Blade | Lifetime @ Temp. | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Air Flow | Air Flow | RPM | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Approval Agency | Noise | Fan Type | Static Pressure | Static Pressure | Voltage - Rated | Features | Weight [custom] | Weight [custom] | Bearing Type | Power (Watts) | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sunon Fans | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | 58 mA | 13.8 VDC | 6 VDC | 8.2 CFM | 0.23 mł/min | 7000 RPM | 40 mm | 40 mm | -20 °C | -4 °F | 185 °F | 85 °C | cURus TUV | 27.4 dB(A) | Tubeaxial | 54.8 Pa | 0.22 in H2O | 12 VDC | Auto Restart Speed Sensor (Tach) | 29.03 g | 0.064 lb | Vapo-Bearing™ | 700 mW | 20 mm |
