178487 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

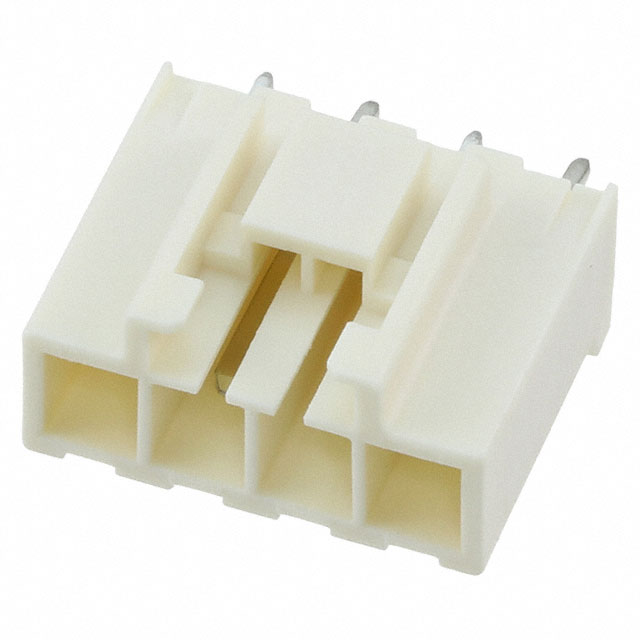

CONN HEADER VERT 4POS 3.96MM
| Part | Insulation Material | Fastening Type | Termination | Mounting Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Insulation Color | Insulation Height | Insulation Height | Material Flammability Rating | Contact Type | Style | Connector Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post | Shrouding | Number of Positions | Contact Shape | Contact Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Polyamide (PA66) Nylon 6/6 | Locking Ramp | Kinked Pin Solder | Through Hole | 0.156 in | 3.96 mm | All | Natural | 0.551 in | 14 mm | UL94 V-0 | Tab | Board to Cable/Wire | Header | General Purpose | -30 ░C | 105 ░C | 1 | 0.15 in | 3.81 mm | Tin | Shrouded - 4 Wall | 4 | Rectangular | Brass | Varies by Wire Gauge |
