90B05 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Electrical Life	Body Material	Length [x]	Length [x]	Mechanical Life	Washable	Mounting Type	Contact Finish	Termination Style	Contact Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Current Rating (Amps)	Actuator Level	Circuit	Number of Positions	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Actuator Type

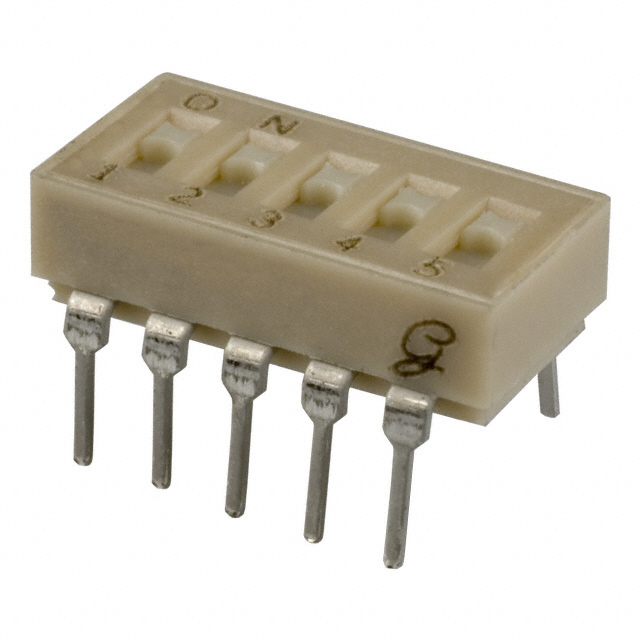

Grayhill Inc. 90B05ST	2000 Steps	Thermoplastic	14.48 mm	0.57 in	2000 Cycles		Through Hole	Gold	PC Pin	Copper Alloy	Tape Seal	85 °C	-40 C	2.54 mm	0.1 "	25 mA	Flush Recessed	SPST	5	24 VDC	0.195 in	4.95 mm	Slide (Standard)
Grayhill Inc. 90B05T	2000 Steps	Thermoplastic	14.48 mm	0.57 in	2000 Cycles		Through Hole	Gold	PC Pin	Copper Alloy		85 °C	-40 C	2.54 mm	0.1 "	25 mA	Flush Recessed	SPST	5	24 VDC	0.195 in	4.95 mm	Slide (Standard)
