892-082 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 82POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Type	Mounting Type	Termination	Number of Positions/Bay/Row	Contact Material	Gender	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Read Out	Contact Finish	Number of Rows [custom]	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-082-523-208	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Through Hole	Solder	41	Copper Alloy	Female	82	125 °C	-40 C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Cantilever	Dual	Gold	2	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 892-082-560-203	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Board Edge Straddle Mount	Solder	41	Copper Alloy	Female	82	125 °C	-40 C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Cantilever	Dual	Gold	2	Floating Bobbin Flush Mount	Card Extender	0.116 "	2.95 mm
EDAC Inc. 892-082-560-212	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Board Edge Straddle Mount	Solder	41	Copper Alloy	Female	82	125 °C	-40 C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Cantilever	Dual	Gold	2	Flush Mount Side Opening Unthreaded	Card Extender	0.128 "	3.25 mm
EDAC Inc. 892-082-559-204	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Right Angle Through Hole	Solder	41	Copper Alloy	Female	82	125 °C	-40 C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Cantilever	Dual	Gold	2	Flush Mount Top Opening Unthreaded		0.156 "	3.96 mm
EDAC Inc. 892-082-520-202	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Through Hole	Solder	41	Copper Alloy	Female	82	125 °C	-40 C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Cantilever	Dual	Gold	2	Flush Mount Top Opening Unthreaded		0.128 "	3.25 mm
EDAC Inc. 892-082-500-204	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Through Hole	Solder Eyelet(s)	41	Copper Alloy	Female	82	125 °C	-40 C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Cantilever	Dual	Gold	2	Flush Mount Top Opening Unthreaded		0.156 "	3.96 mm
EDAC Inc. 892-082-500-202	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Through Hole	Solder Eyelet(s)	41	Copper Alloy	Female	82	125 °C	-40 C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Cantilever	Dual	Gold	2	Flush Mount Top Opening Unthreaded		0.128 "	3.25 mm

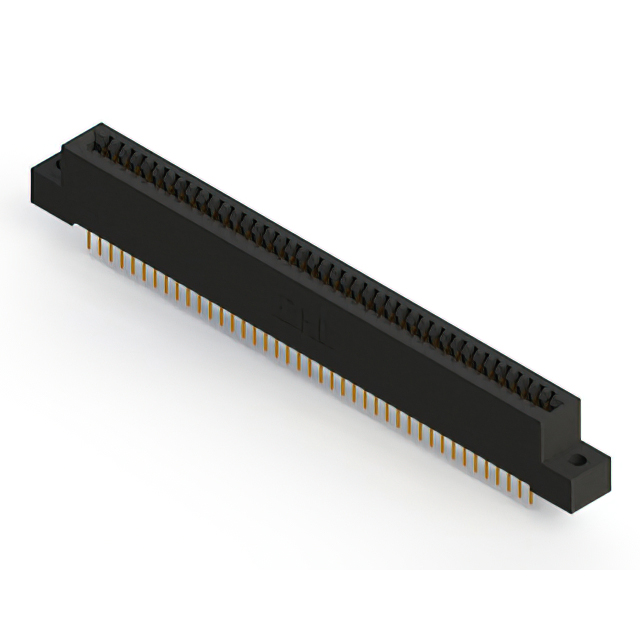

EDAC Inc. 892-082-524-202	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Through Hole	Solder	41	Copper Alloy	Female	82	125 °C	-40 C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Cantilever	Dual	Gold	2	Flush Mount Top Opening Unthreaded		0.128 "	3.25 mm
EDAC Inc. 892-082-523-201	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Through Hole	Solder	41	Copper Alloy	Female	82	125 °C	-40 C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Cantilever	Dual	Gold	2
EDAC Inc. 892-082-559-201	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	Right Angle Through Hole	Solder	41	Copper Alloy	Female	82	125 °C	-40 C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Cantilever	Dual	Gold	2
