SA-1B-D Series

Catalog

SWITCH PB ENGINE START GRN

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Current Rating	Actuator Type	Voltage Rating - DC	Illumination Type	Color	Switch Function	Mounting Type	Actuator Marking	Illumination Voltage (Nominal)	Operating Temperature (Max)	Operating Temperature (Min)	Circuit	Type	Termination Style	Panel Cutout Diameter	Panel Cutout Shape	Color - Actuator/Cap

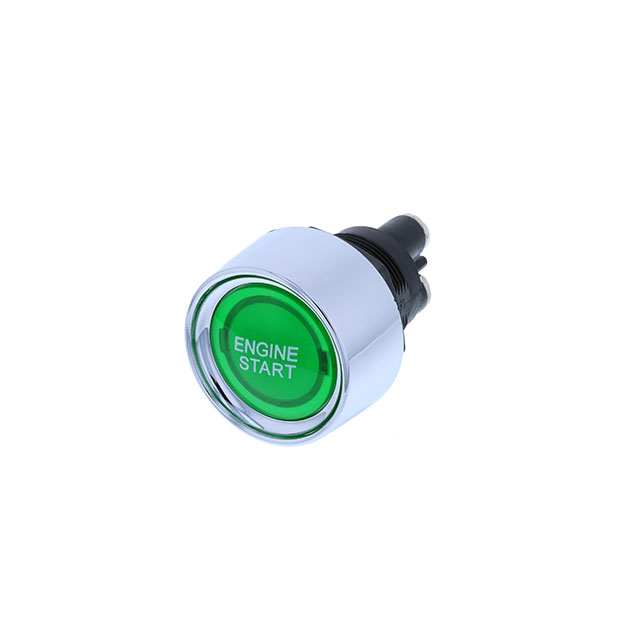

Switch Components SA-1B-DC-3-GL-P	10000 Cycles	6000 Cycles	50 A	Button Round	12 V	LED	Green	Off-Mom	Front Panel Mount	Engine Start Symbol	12 V	85 °C	-25 °C	SPST-NO	Illuminated Standard	Screw Terminal	22 mm	Circular	Green

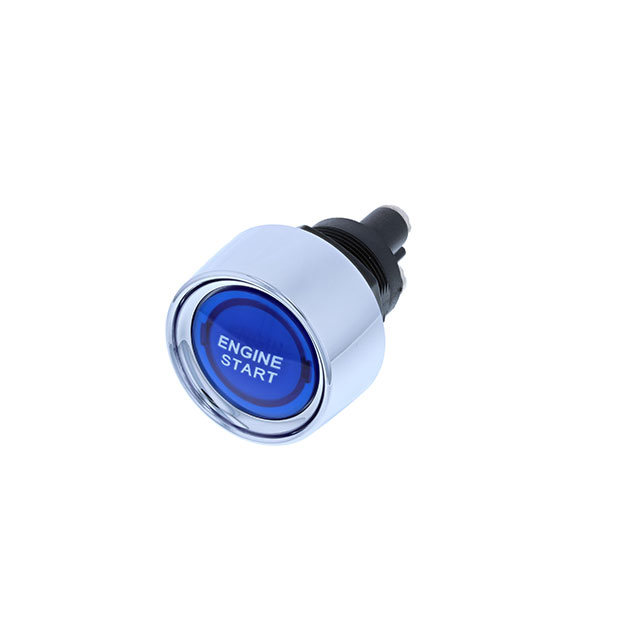

Switch Components SA-1B-DC-3-UL-P	10000 Cycles	6000 Cycles	50 A	Button Round	12 V	LED	Blue	Off-Mom	Front Panel Mount	Engine Start Symbol	12 V	85 °C	-25 °C	SPST-NO	Illuminated Standard	Screw Terminal	22 mm	Circular	Blue

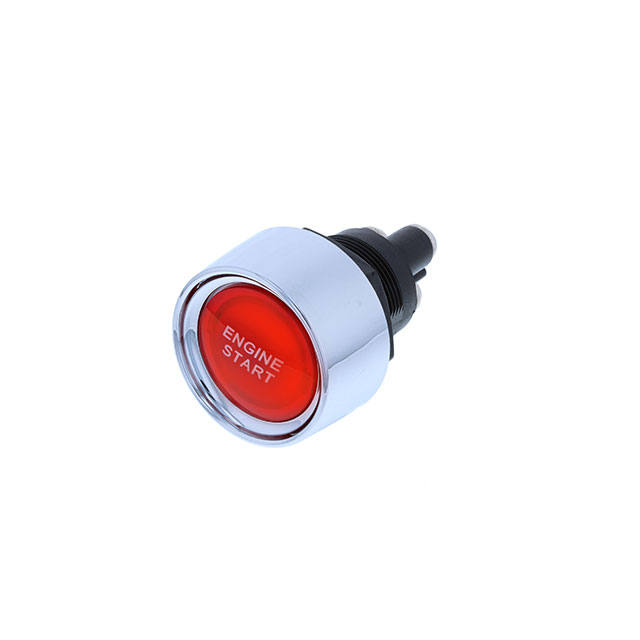

Switch Components SA-1B-DC-3-RL-P	10000 Cycles	6000 Cycles	50 A	Button Round	12 V	LED	Red	Off-Mom	Front Panel Mount	Engine Start Symbol	12 V	85 °C	-25 °C	SPST-NO	Illuminated Standard	Screw Terminal	22 mm	Circular	Red

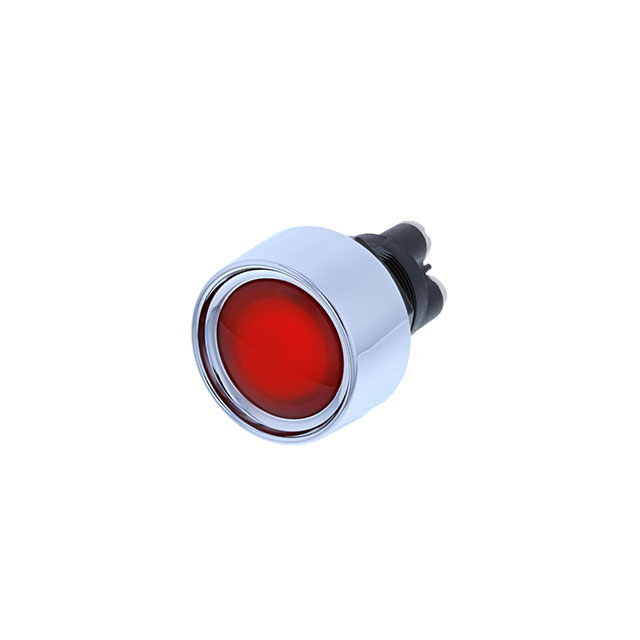

Switch Components SA-1B-DC-3-RL	10000 Cycles	6000 Cycles	50 A	Button Round	12 V	LED	Red	Off-Mom	Front Panel Mount	No Marking	12 V	85 °C	-25 °C	SPST-NO	Illuminated Standard	Screw Terminal	22 mm	Circular	Red
