1877285 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

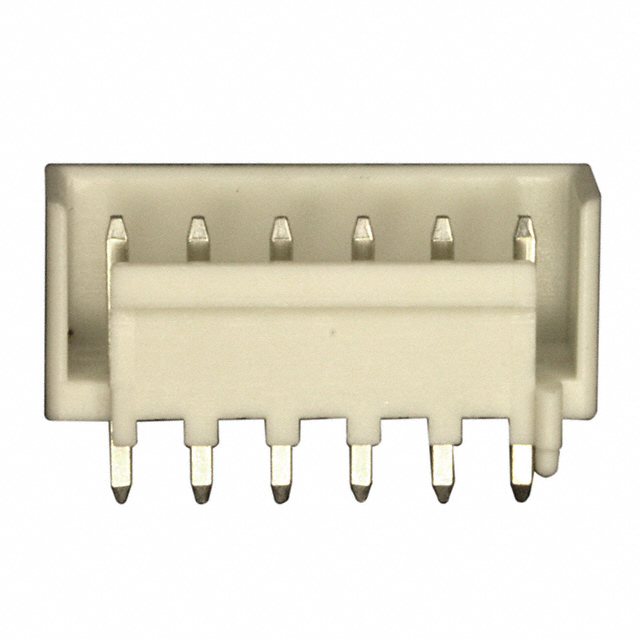

CONNECTOR, HEADER, 6POS, 1ROW, 3.96MM
| Part | Insulation Height | Insulation Height | Termination | Insulation Material | Insulation Color | Contact Material | Shrouding | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Style | Material Flammability Rating | Contact Shape | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Mounting Type | Fastening Type | Contact Length - Post | Contact Length - Post | Overall Contact Length | Overall Contact Length | Current Rating (Amps) | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Number of Positions | Features | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.472 in | 12 mm | Solder | Polybutylene Terephthalate (PBT) Glass Filled | White | Brass | Shrouded - 4 Wall | 1 | 1 µm | 39.4 µin | Male Pin | General Purpose Industrial Lighting | -25 °C | 105 ░C | Board to Cable/Wire | UL94 V-0 | Square | 250 VAC | 1 çm | 39.4 çin | 0.156 in | 3.96 mm | Through Hole | Locking Ramp | 3.6 mm | 0.142 in | 14.4 mm | 0.567 " | 7.5 A | Tin | 0.306 in | 7.77 mm | All | 6 | Board Guide | Header |
 TE Connectivity Raychem Cable Protection | 0.472 in | 12 mm | Solder | Polybutylene Terephthalate (PBT) Glass Filled | White | Brass | Shrouded - 4 Wall | 1 | 1 µm | 39.4 µin | Male Pin | General Purpose Industrial Lighting | -25 °C | 105 ░C | Board to Cable/Wire | UL94 V-0 | Square | 250 VAC | 1 çm | 39.4 çin | 0.156 in | 3.96 mm | Through Hole | Locking Ramp | 3.6 mm | 0.142 in | 14.4 mm | 0.567 " | 7.5 A | Tin | 0.306 in | 7.77 mm | All | 12 | Board Guide | Header |

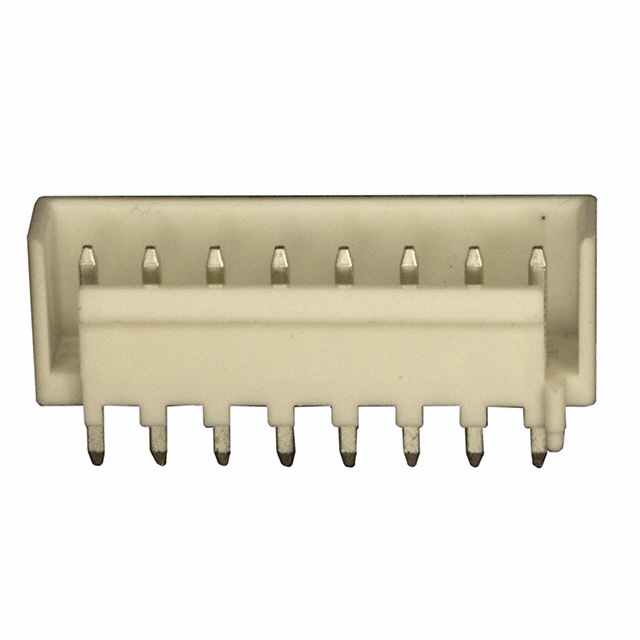

 TE Connectivity Raychem Cable Protection | 0.472 in | 12 mm | Solder | Polybutylene Terephthalate (PBT) Glass Filled | White | Brass | Shrouded - 4 Wall | 1 | 1 µm | 39.4 µin | Male Pin | General Purpose Industrial Lighting | -25 °C | 105 ░C | Board to Cable/Wire | UL94 V-0 | Square | 250 VAC | 1 çm | 39.4 çin | 0.156 in | 3.96 mm | Through Hole | Locking Ramp | 3.6 mm | 0.142 in | 14.4 mm | 0.567 " | 7.5 A | Tin | 0.306 in | 7.77 mm | All | 8 | Board Guide | Header |
