002660 Series

Manufacturer: Molex

Catalog

Catalog

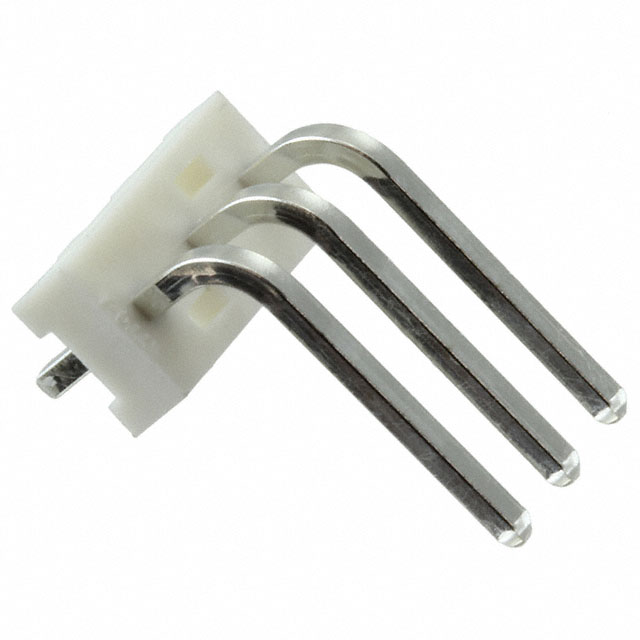

CONN HEADER R/A 3POS 3.96MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Length - Post	Contact Length - Post	Contact Type	Mounting Type	Insulation Material	Insulation Height [z]	Insulation Height [z]	Shrouding	Insulation Color	Contact Material	Material Flammability Rating	Termination	Fastening Type	Contact Shape	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating [x]	Style	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions	Contact Length - Mating	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post [x]	Contact Length - Post [x]
Molex 0026603039	1.52 µm	60 µin	Automotive General Purpose Industrial Medical Telecommunications	4.45 mm	0.175 in	Male Pin	Right Angle Through Hole	Polyester Glass Filled	0.13 in	3.3 mm	Unshrouded	Natural	Brass	UL94 V-0	Solder	Push-Pull	Square	1	3.96 mm	0.156 in	5.87 mm	0.231 in	Board to Board Cable	All	Header	60 µin	1.52 Ám	Tin

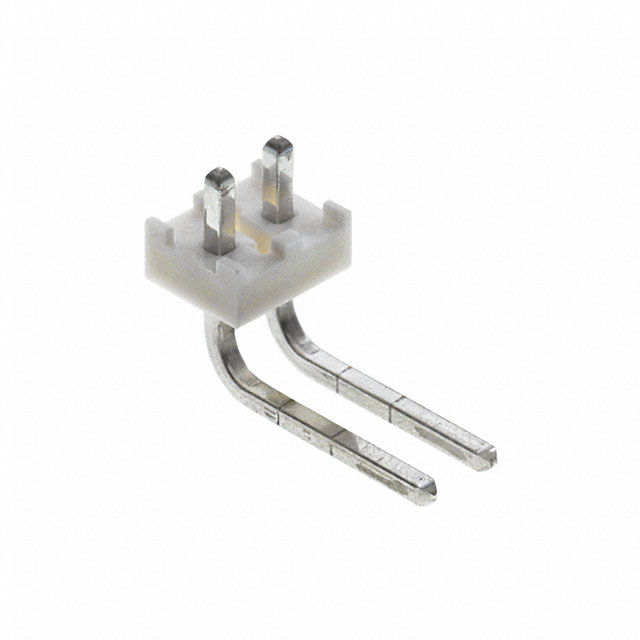

Molex 0026603020	1.52 µm	60 µin	Automotive General Purpose Industrial Medical Telecommunications	3.56 mm	0.14 in	Male Pin	Right Angle Through Hole	Polyester Glass Filled	0.13 in	3.3 mm	Unshrouded	Natural		UL94 V-0	Solder	Push-Pull	Square	1	3.96 mm	0.156 in	14.86 mm		Board to Board Cable	All	Header	60 µin	1.52 Ám	Tin	2	0.585 in
Molex 0026603099	1.52 µm	60 µin	Automotive General Purpose Industrial Medical Telecommunications	4.45 mm	0.175 in	Male Pin	Right Angle Through Hole	Polyester Glass Filled	0.13 in	3.3 mm	Unshrouded	Natural	Brass	UL94 V-0	Solder	Push-Pull	Square	1	3.96 mm	0.156 in	5.87 mm	0.231 in	Board to Board Cable	All	Header	60 µin	1.52 Ám	Tin	9
Molex 0026603118	1.52 µm	60 µin	Automotive General Purpose Industrial Medical Telecommunications	3.6 mm	0.142 in	Male Pin	Right Angle Through Hole	Polyester Glass Filled	0.13 in	3.3 mm	Unshrouded	Natural		UL94 V-0	Solder	Push-Pull	Square	1	3.96 mm	0.156 in	5.94 mm		Board to Board Cable	All	Header	60 µin	1.52 Ám	Tin	11	0.234 in
Molex 0026604052			Automotive General Purpose Industrial Medical Telecommunications	3.56 mm	0.14 in	Male Pin	Through Hole	Polyester Glass Filled			Shrouded - 1 Wall	Natural		UL94 V-0	Solder	Friction Lock	Square	1	3.96 mm	0.156 in	11.43 mm		Board to Board Cable	All	Header			Tin	5	0.45 in	0.446 in	11.33 mm	0.72 in	18.29 mm
Molex 0026603090	1.52 µm	60 µin	Automotive General Purpose Industrial Medical Telecommunications	3.56 mm	0.14 in	Male Pin	Right Angle Through Hole	Polyester Glass Filled	0.13 in	3.3 mm	Unshrouded	Natural		UL94 V-0	Solder	Push-Pull	Square	1	3.96 mm	0.156 in	14.86 mm		Board to Board Cable	All	Header	60 µin	1.52 Ám	Tin	9	0.585 in

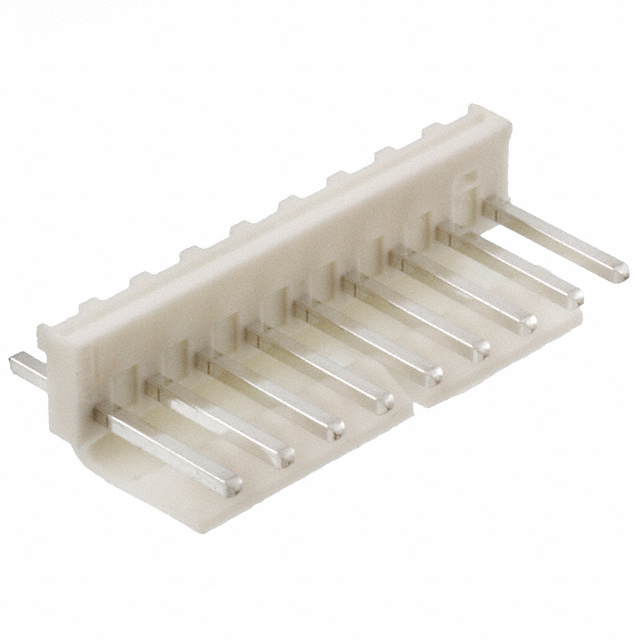

Molex 0026604093	1.52 µm	60 µin	Automotive General Purpose Industrial Medical Telecommunications			Male Pin	Through Hole	Polyester Glass Filled			Shrouded - 1 Wall	Natural		UL94 V-0	Solder	Friction Lock	Square	1	3.96 mm	0.156 in	11.43 mm		Board to Board Cable	All	Header	60 µin	1.52 Ám	Tin	9	0.45 in	0.446 in	11.33 mm			19.05 mm	0.75 in	0.17 in	4.32 mm
Molex 0026602031	1.52 µm	60 µin	Automotive General Purpose Industrial Medical Telecommunications	3.6 mm	0.142 in	Male Pin	Through Hole	Polyester Glass Filled	0.13 in	3.3 mm	Unshrouded	Natural		UL94 V-0	Solder	Push-Pull	Square	1	3.96 mm	0.156 in	16.97 mm		Board to Board Cable	All	Header	60 µin	1.52 Ám	Tin		0.668 in					23.88 mm	0.94 in
Molex 0026603119	1.52 µm	60 µin	Automotive General Purpose Industrial Medical Telecommunications	4.45 mm	0.175 in	Male Pin	Right Angle Through Hole	Polyester Glass Filled	0.13 in	3.3 mm	Unshrouded	Natural	Brass	UL94 V-0	Solder	Push-Pull	Square	1	3.96 mm	0.156 in	5.87 mm	0.231 in	Board to Board Cable	All	Header	60 µin	1.52 Ám	Tin	11
Molex 0026603160	1.52 µm	60 µin	Automotive General Purpose Industrial Medical Telecommunications	3.56 mm	0.14 in	Male Pin	Right Angle Through Hole	Polyester Glass Filled	0.13 in	3.3 mm	Unshrouded	Natural		UL94 V-0	Solder	Push-Pull	Square	1	3.96 mm	0.156 in	14.86 mm		Board to Board Cable	All	Header	60 µin	1.52 Ám	Tin	16	0.585 in
