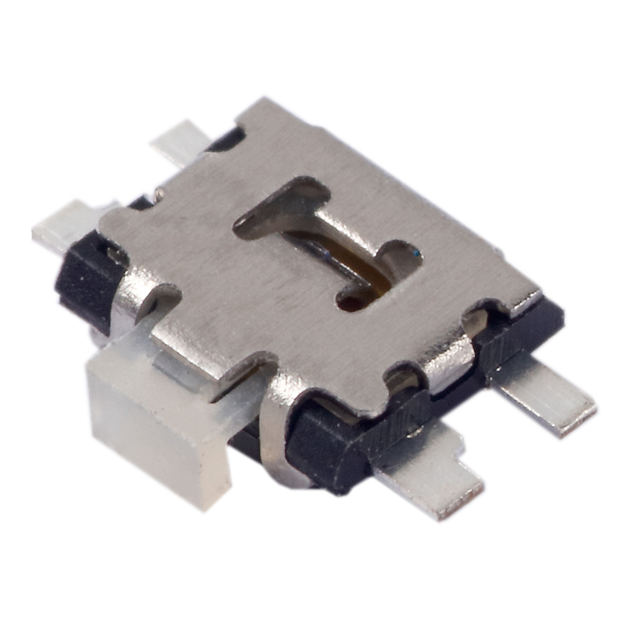

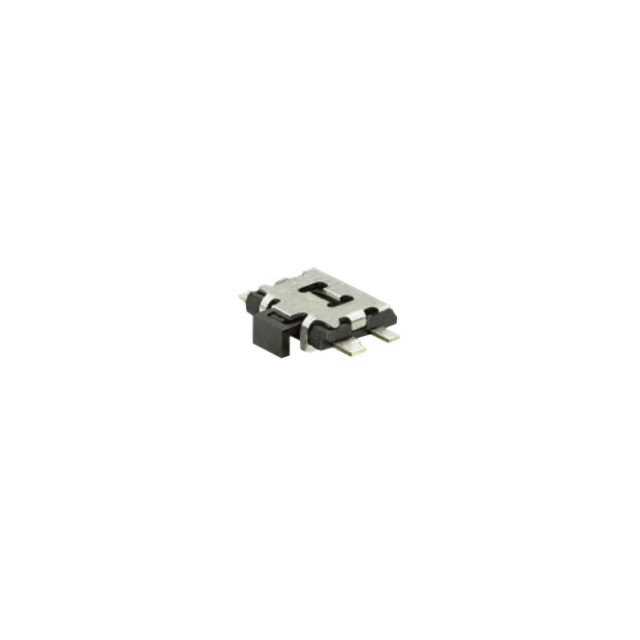

226DM2 Series
Manufacturer: CTS Electrocomponents
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Switch Travel | Switch Function | Actuator Orientation | Features | Outline [x] | Outline [y] | Actuator Length, Right Angle | Contact Rating @ Voltage | Termination Style | Circuit | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Operating Force | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 100000 Cycles | 0.2 mm | Off-Mom | Side Actuated | Tactile Feedback | 3.5 mm | 2.9 mm | 3.5 mm | 0.05 A 12 VDC | Gull Wing | SPST-NO | Non-Illuminated | 85 °C | -40 C | Right Angle Surface Mount | 160 gf | Rectangular Button |
 CTS Electrocomponents | 100000 Cycles | 0.2 mm | Off-Mom | Side Actuated | Tactile Feedback | 3.5 mm | 2.9 mm | 3.5 mm | 0.05 A 12 VDC | Gull Wing | SPST-NO | Non-Illuminated | 85 °C | -40 C | Right Angle Surface Mount | 220 gf | Rectangular Button |
