ST280 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

SCR 400V 960A A-PUK

Part	Current - On State (It (AV)) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Supplier Device Package	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Voltage - Off State	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Off State (Max) [Max]	SCR Type	Current - On State (It (RMS)) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm)

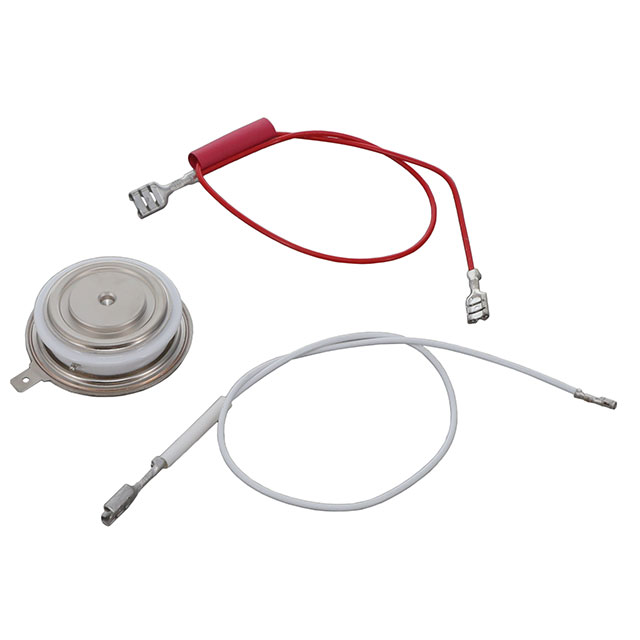

Vishay General Semiconductor - Diodes Division VS-ST280C04C1	500 A	1.36 V	960 A	A-PUK TO-200AB	150 mA	Clamp On	6600 A	6900 A	400 V	125 °C	-40 °C	A-PUK TO-200AB	30 mA	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST280S04P0V	280 A	1.28 V		TO-209AB (TO-93)	150 mA	Chassis Stud Mount	7850 A	8220 A	400 V	125 °C	-40 °C	Stud TO-209AB TO-93-4	30 mA	Standard Recovery	440 A
Vishay General Semiconductor - Diodes Division VS-ST280CH06C1	500 A	1.35 V	960 A	A-PUK TO-200AB	150 mA	Clamp On			600 V			A-PUK TO-200AB	75 mA	Standard Recovery		6000 A 6300 A
Vishay General Semiconductor - Diodes Division VS-ST280CH04C1	500 A	1.35 V	960 A	A-PUK TO-200AB	150 mA	Clamp On			400 V			A-PUK TO-200AB	75 mA	Standard Recovery		6000 A 6300 A
Vishay General Semiconductor - Diodes Division VS-ST280C06C1	500 A	1.36 V	960 A	A-PUK TO-200AB	150 mA	Clamp On	6600 A	6900 A	600 V	125 °C	-40 °C	A-PUK TO-200AB	30 mA	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST280C06C0	500 A	1.36 V	960 A	A-PUK TO-200AB	150 mA	Clamp On	7850 A	8220 A	600 V	125 °C	-40 °C	A-PUK TO-200AB	30 mA	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST280C04C0	500 A	1.36 V	960 A	A-PUK TO-200AB	150 mA	Clamp On	7850 A	8220 A	400 V	125 °C	-40 °C	A-PUK TO-200AB	30 mA	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST280S06P1V	280 A	1.28 V		TO-209AB (TO-93)	150 mA	Chassis Stud Mount	6600 A	6900 A	600 V	125 °C	-40 °C	Stud TO-209AB TO-93-4	30 mA	Standard Recovery	440 A
