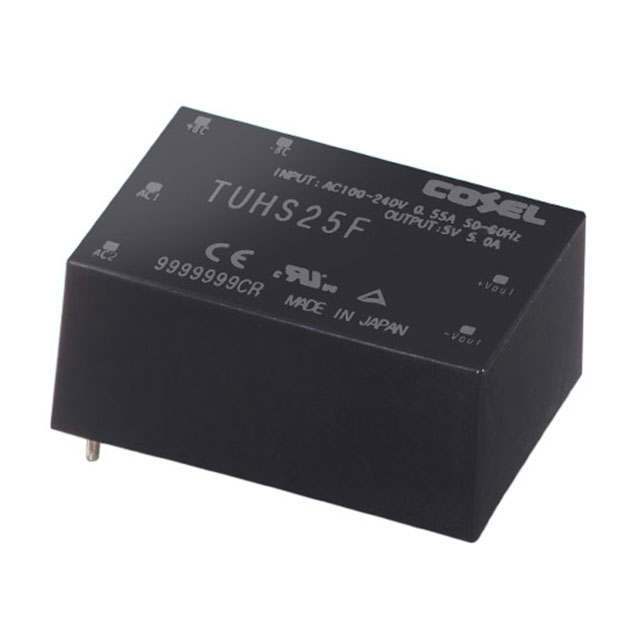

TUHS25 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC POWER MODULES 25W 5V 5A ENCAPSULATE - PCB TH
| Part | Line Regulation | Load Regulation | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Current - Output (Max) | Mounting Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Voltage - Output 1 | Approval Agency | Number of Outputs | Type | Applications | Package / Case | Efficiency | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 20 mV | 40 mV | 85 VAC 120 VDC | 264 VAC 370 VDC | -40 °C | 85 °C | Universal Input | 5 A | Through Hole | 25.4 mm | 16.5 mm | 1.42 " | 0.65 in | 36.1 mm | 1 " | 25 W | 5 V | CE cURus | 1 | Enclosed | ITE (Commercial) | 6-DIP Module | 87 % | |
Cosel USA, Inc. | 96 mV | 150 mV | 85 VAC 120 VDC | 264 VAC 370 VDC | -40 °C | 85 °C | Universal Input | Through Hole | 25.4 mm | 16.5 mm | 1.42 " | 0.65 in | 36.1 mm | 1 " | 25 W | 24 V | CE cURus | 1 | Enclosed | ITE (Commercial) | 6-DIP Module | 90 % | ||
Cosel USA, Inc. | 48 mV | 100 mV | 85 VAC 120 VDC | 264 VAC 370 VDC | -40 °C | 85 °C | Universal Input | Through Hole | 25.4 mm | 16.5 mm | 1.42 " | 0.65 in | 36.1 mm | 1 " | 25 W | 12 V | CE cURus | 1 | Enclosed | ITE (Commercial) | 6-DIP Module | 88 % | 2.1 A | |

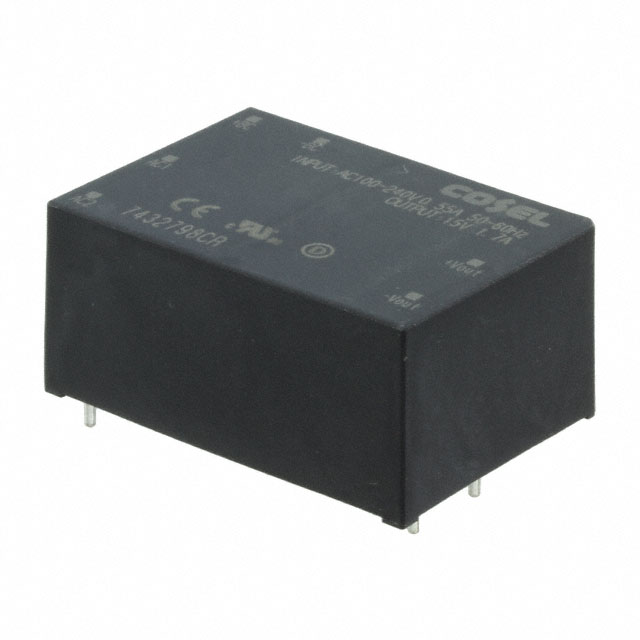

 Cosel USA, Inc. | 60 mV | 120 mV | 85 VAC 120 VDC | 264 VAC 370 VDC | -40 °C | 85 °C | Universal Input | Through Hole | 25.4 mm | 16.5 mm | 1.42 " | 0.65 in | 36.1 mm | 1 " | 26 W | 15 V | CE cURus | 1 | Enclosed | ITE (Commercial) | 6-DIP Module | 88 % | 1.7 A |
