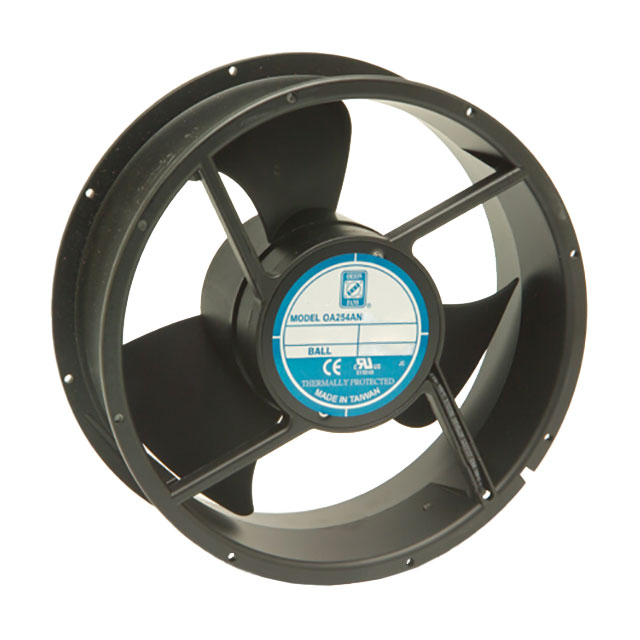

OA254AN Series

Catalog

AC AXIAL FAN, 320 CFM, 32 W, 1100 RPM, 115 VAC, 48 DB, 254 MM X 89 MM, CIRCULAR, 2 LEAD WIRES

Part	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Size / Dimension	Size / Dimension [diameter]	Features	Noise	Power (Watts)	Width [y]	Termination	RPM	Fan Type	Bearing Type	Approval Agency	Static Pressure	Static Pressure	Lifetime @ Temp.	Material - Frame	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Termination
ORION FANS OA254AN-11-3WB	115 VAC	80 °C	-20 ░C	320 CFM	8.96 m³/min	Round	10 in	Capacitor Thermal Overload Protector (TOP)	48 dB	32 W	89 mm	2 Wire Leads	1100 RPM	Tubeaxial	Ball	CE cURus TUV UR	0.14 in H2O	34.9 Pa
ORION FANS OA254AN-11-2TB	115 VAC	80 °C	-20 ░C	600 CFM	16.8 mł/min	Round	10 in	Capacitor Thermal Overload Protector (TOP)	55 dB(A)	45 W	89 mm		2000 RPM	Tubeaxial	Ball	CE cURus TUV UR	0.45 in H2O	112.1 Pa	40 °C 60000 Hrs	Aluminum	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC	2.4 kg	5.4 lbs	2
ORION FANS OA254AN-11-3TB	115 VAC	80 °C	-20 ░C	320 CFM	8.96 m³/min	Round	10 in	Capacitor Thermal Overload Protector (TOP)	48 dB	32 W	89 mm		1100 RPM	Tubeaxial	Ball	CE cURus TUV UR	0.14 in H2O	34.9 Pa	40 °C 60000 Hrs	Aluminum	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC	2.4 kg	5.4 lbs	2
ORION FANS OA254AN-11-1TBXC	115 VAC	80 °C	-20 ░C	850 CFM	23.8 mł/min	Round	10 in	Capacitor Thermal Overload Protector (TOP)	69 dB	75 W	89 mm		2700 RPM	Tubeaxial	Ball	CE cURus TUV UR	0.78 in H2O	194.3 Pa	40 °C 60000 Hrs	Aluminum	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC	2.4 kg	5.4 lbs	2
ORION FANS OA254AN-22-1TB	230 VAC	80 °C	-20 ░C	700 CFM	19.6 m³/min	Round	10 in	Capacitor Thermal Overload Protector (TOP)	65 dB	70 W	89 mm		2200 RPM	Tubeaxial	Ball	CE cURus TUV UR	0.531 in H2O	132.3 Pa	40 °C 60000 Hrs	Aluminum	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC	2.4 kg	5.4 lbs	2
ORION FANS OA254AN-11-1WB	115 VAC	80 °C	-20 ░C	700 CFM	19.6 m³/min	Round	10 in	Capacitor Thermal Overload Protector (TOP)	65 dB	70 W	89 mm	2 Wire Leads	2200 RPM	Tubeaxial	Ball	CE cURus TUV UR	0.53 in H2O	132 Pa
ORION FANS OA254AN-11-1WBXC	115 VAC	80 °C	-20 ░C	850 CFM	23.8 mł/min	Round	10 in	Capacitor Thermal Overload Protector (TOP)	69 dB	75 W	89 mm	2 Wire Leads	2700 RPM	Tubeaxial	Ball	CE cURus TUV UR	0.78 in H2O	194.3 Pa	40 °C 60000 Hrs	Aluminum	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC	2.4 kg	5.4 lbs
ORION FANS OA254AN-11-1TB	115 VAC	80 °C	-20 ░C	700 CFM	19.6 m³/min	Round	10 in	Capacitor Thermal Overload Protector (TOP)	65 dB	70 W	89 mm		2200 RPM	Tubeaxial	Ball	CE cURus TUV UR	0.531 in H2O	132.3 Pa	40 °C 60000 Hrs	Aluminum	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC	2.4 kg	5.4 lbs	2
ORION FANS OA254AN-22-2TB	230 VAC	80 °C	-20 ░C	600 CFM	16.8 mł/min	Round	10 in	Capacitor Thermal Overload Protector (TOP)	55 dB(A)	45 W	89 mm		2000 RPM	Tubeaxial	Ball	CE cURus TUV UR	0.45 in H2O	112.1 Pa								2
ORION FANS OA254AN-22-1TBXC	230 VAC	80 °C	-20 ░C	850 CFM	23.8 mł/min	Round	10 in	Capacitor Thermal Overload Protector (TOP)	69 dB	75 W	89 mm		2700 RPM	Tubeaxial	Ball	CE cURus TUV UR	0.78 in H2O	194.3 Pa	40 °C 60000 Hrs	Aluminum	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC	2.4 kg	5.4 lbs	2
