165172 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

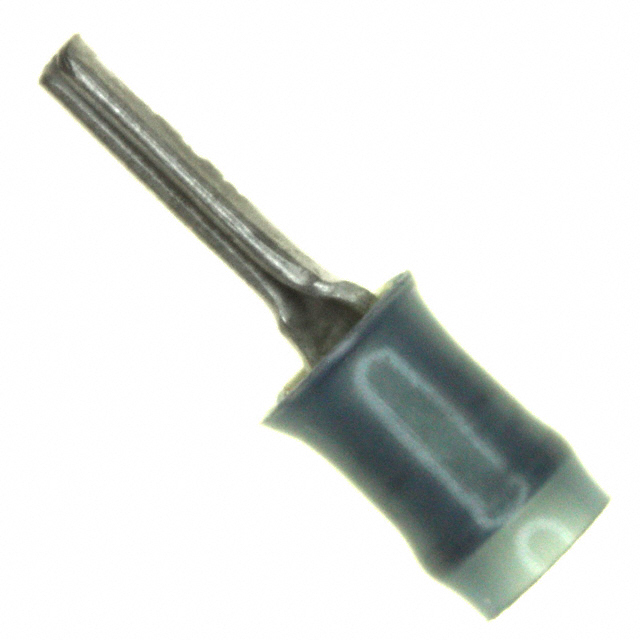

CONN WIRE PIN TERM 14-16AWG PIDG
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Material - Insulation | Contact Material | Pin Diameter [diameter] | Pin Diameter [diameter] | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Length - Pin | Length - Pin | Color | Features | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall | Length - Overall | Termination | Insulation | Insulation Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.6 mm˛ 16 AWG | 1 mm˛ 14 AWG | Tin | Nylon Polyamide (PA) | Copper | 0.071 in | 1.8 mm | 0.189 in | 4.8 mm | 0.39 in | 9.91 mm | Blue | Serrated Termination | 2.6 mm² | 1 mm² | 23.6 mm | 0.929 in | Crimp | Insulated | |
 TE Connectivity AMP Connectors | 16 AWG | 14 AWG | Tin | Nylon Polyamide (PA) | Copper | 0.071 in | 1.8 mm | 4.29 mm | 0.39 in | 9.91 mm | Blue | Serrated Termination | 2.6 mm² | 1 mm² | 23.6 mm | 0.929 in | Crimp | Insulated | 0.169 in |
