AA3022 Series

Catalog

LED GREEN CLEAR SMD

Part	Height (Max) [Max] [z]	Configuration	Wavelength - Peak	Package / Case	Lens Transparency	Viewing Angle	Supplier Device Package	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Mounting Type	Color	Lens Color	Lens Style	Voltage - Forward (Vf) (Typ)	Lens Size [y]	Lens Size [x]	Wavelength - Dominant

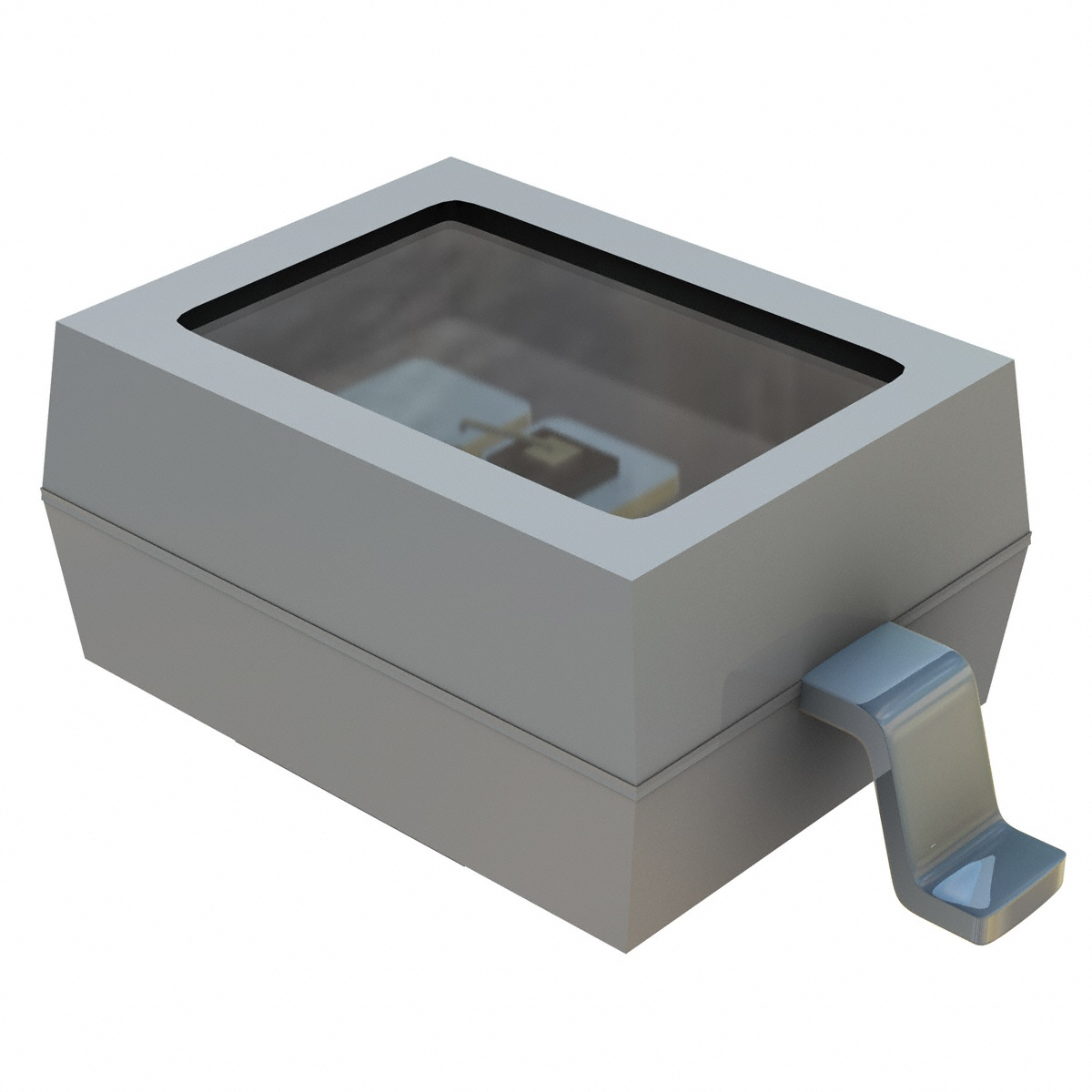

Kingbright AA3022SGC-4.5SF	1.65 mm	Standard	565 nm	2-SMD Gull Wing	Clear	90 °	SMD	20 mcd	2.2 mm	3 mm	20 mA	Surface Mount	Green	Colorless	Rectangle with Flat Top	2.2 V	1.7 mm	2.5 mm	568 nm

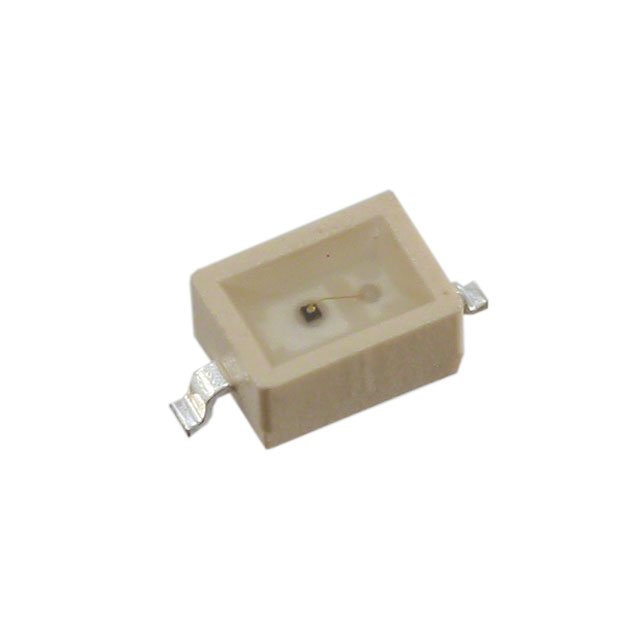

Kingbright AA3022SRC-4.5SF	1.65 mm	Standard	660 nm	2-SMD Gull Wing	Clear	90 °	SMD	150 mcd	2.2 mm	3 mm	20 mA	Surface Mount	Red	Colorless	Rectangle with Flat Top	1.85 V	1.7 mm	2.5 mm	640 nm

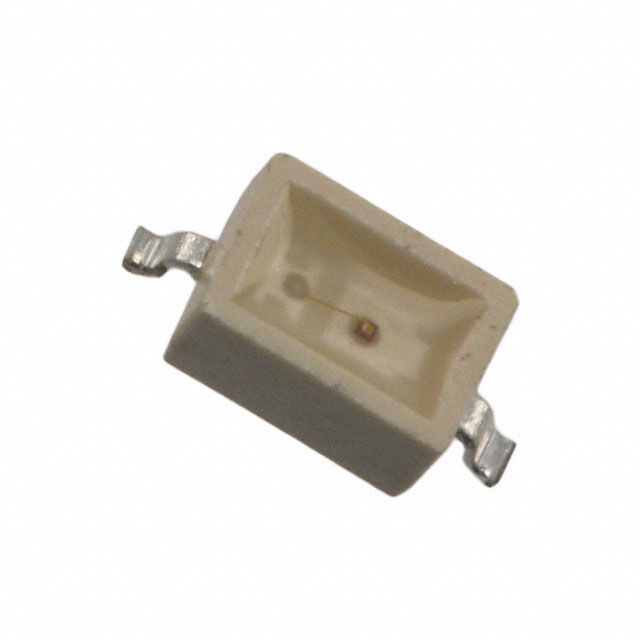

Kingbright AA3022YC-4.5SF	1.65 mm	Standard	590 nm	2-SMD Gull Wing	Clear	90 °	2-SMD	15 mcd	2.2 mm	3 mm	20 mA	Surface Mount	Yellow	Colorless	Rectangle with Flat Top	2.1 V	1.7 mm	2.5 mm	588 nm
Kingbright AA3022EC-4.5SF	1.65 mm	Standard	627 nm	2-SMD Gull Wing	Clear	90 °	SMD	30 mcd	2.2 mm	3 mm	20 mA	Surface Mount	Red	Colorless	Rectangle with Flat Top	2 V	1.7 mm	2.5 mm	625 nm
