109E1712 Series

Catalog

FAN AXIAL 172X51MM 12VDC WIRE

Part	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Material - Frame	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Termination	Size / Dimension [diameter]	Size / Dimension	Voltage - Rated	Approval Agency	Static Pressure	Static Pressure	Bearing Type	RPM	Air Flow	Air Flow	Fan Type	Features	Width [x]	Power (Watts)	Weight [custom]	Weight [custom]
Sanyo Denki America Inc. 109E1712Y501	2.3 A	10.2 VDC	13.8 VDC	Plastic	Aluminum	40000 Hrs	60 °C	60 °C	-4 °F	-20 ░C	53 dB	3 Wire Leads	172 mm	Round	12 VDC	CSA TUV UL	0.843 in H2O	210 Pa	Ball	3800 RPM	7.73 m³/min	276 CFM	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	51 mm	27.6 W	780 g	1.7 lbs

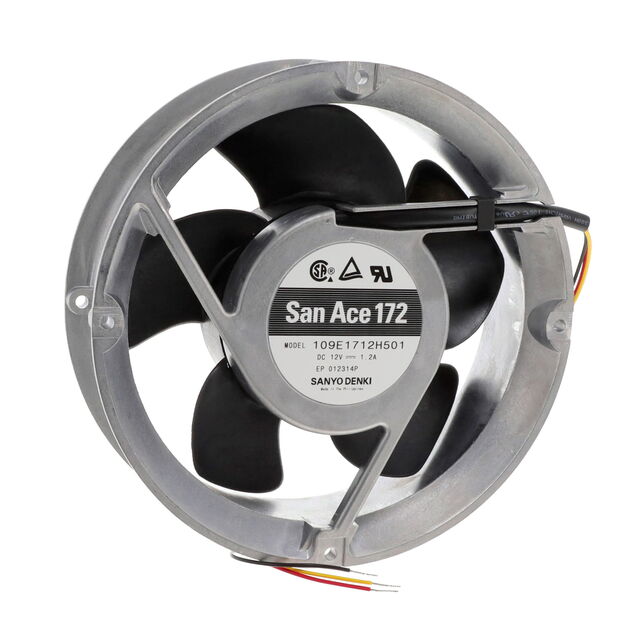

Sanyo Denki America Inc. 109E1712H501	1.2 A	10.2 VDC	13.8 VDC	Plastic	Aluminum	40000 Hrs		70 °C		-20 ░C	47 dB	3 Wire Leads	172 mm	Round	12 VDC	CSA TUV UL	0.551 in H2O	137.2 Pa	Ball		6.33 m³/min	226 CFM	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	51 mm	14.4 W	780 g	1.7 lbs
Sanyo Denki America Inc. 109E1712F501	0.68 A	10.2 VDC	13.8 VDC	Plastic	Aluminum	40000 Hrs		70 °C		-20 ░C	42 dB	3 Wire Leads	172 mm	Round	12 VDC	CSA TUV UL	0.382 in H2O	95.1 Pa	Ball	2500 RPM	5.04 mł/min	180 CFM	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	51 mm	10.8 W	780 g	1.7 lbs
Sanyo Denki America Inc. 109E1712M502	480 mA	10.2 VDC	13.8 VDC	Plastic	Aluminum	40000 Hrs		70 °C		-20 ░C	36 dB	2 Wire Leads	172 mm	Round	12 VDC	CSA TUV UL	0.271 in H2O	67.6 Pa	Ball	2000 RPM	4.14 mł/min	148 CFM	Tubeaxial		51 mm	5.76 W	780 g	1.7 lbs
Sanyo Denki America Inc. 109E1712Y502	2.3 A	10.2 VDC	13.8 VDC	Plastic	Aluminum	40000 Hrs	60 °C	60 °C	-4 °F	-20 ░C	53 dB	2 Wire Leads	172 mm	Round	12 VDC	CSA TUV UL	0.843 in H2O	210 Pa	Ball	3800 RPM	7.73 m³/min	276 CFM	Tubeaxial		51 mm	27.6 W	780 g	1.7 lbs
