G3T Series

Catalog

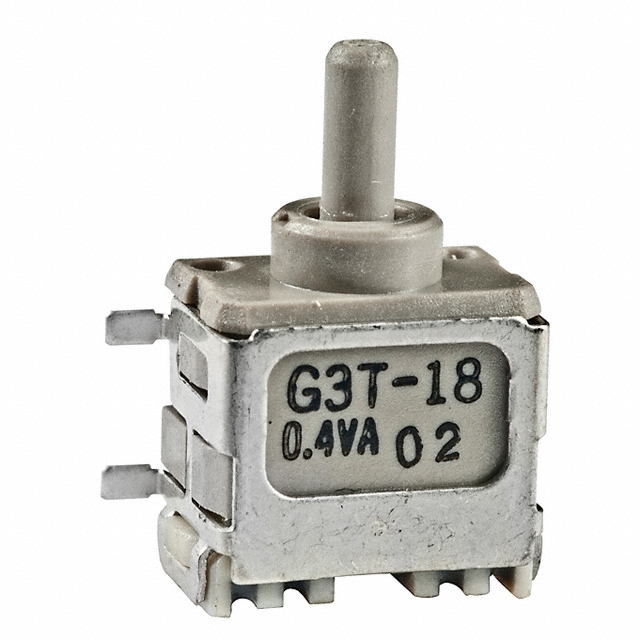

PROCESS SEALED ULTRA-MINIATURE SMT TOGGLE

Part	Actuator Material	Electrical Life	Illumination	Current Rating (Amps)	Actuator Type	Termination Style	Actuator Length [x]	Voltage Rating - DC	Mounting Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Bushing Thread	Circuit	Features
NKK Switches G3T18AB	Polyphenylene Sulfide (PPS)	50000 Cycles	Non-Illuminated	0.4 VA	Standard Round	Gull Wing	3.81 mm	28 V	Surface Mount	Mom-Off-Mom	85 °C	-30 ░C	28 V	Unthreaded	SPDT	Process Sealed
NKK Switches G3T18AP-S	Polyphenylene Sulfide (PPS)	50000 Cycles	Non-Illuminated	0.4 VA	Standard Round	Gull Wing	3.81 mm	28 V	Surface Mount	Mom-Off-Mom	85 °C	-30 ░C	28 V	Unthreaded	SPDT	Process Sealed
NKK Switches G3T22AH	Polyphenylene Sulfide (PPS)	50000 Cycles	Non-Illuminated	0.4 VA	Standard Round	Gull Wing	3.81 mm	28 V	Right Angle Surface Mount	On-On	85 °C	-30 ░C	28 V	Unthreaded	DPDT	Process Sealed
NKK Switches G3T19AB	Polyphenylene Sulfide (PPS)	50000 Cycles	Non-Illuminated	0.4 VA	Standard Round	Gull Wing	3.81 mm	28 V	Surface Mount	On-Off-Mom	85 °C	-30 ░C	28 V	Unthreaded	SPDT	Process Sealed
NKK Switches G3T12AH	Polyphenylene Sulfide (PPS)	50000 Cycles	Non-Illuminated	0.4 VA	Standard Round	Gull Wing	3.81 mm	28 V	Right Angle Surface Mount	On-On	85 °C	-30 ░C	28 V	Unthreaded	SPDT	Process Sealed
NKK Switches G3T22AP-S	Polyphenylene Sulfide (PPS)	50000 Cycles	Non-Illuminated	0.4 VA	Standard Round	Gull Wing	3.81 mm	28 V	Surface Mount	On-On	85 °C	-30 ░C	28 V	Unthreaded	DPDT	Process Sealed
NKK Switches G3T12AP	Polyphenylene Sulfide (PPS)	50000 Cycles	Non-Illuminated	0.4 VA	Standard Round	Gull Wing	3.81 mm	28 V	Surface Mount	On-On	85 °C	-30 ░C	28 V	Unthreaded	SPDT	Process Sealed
