EB Series

Manufacturer: Adam Tech

Catalog

PLUGGABLE TERMINAL BLOCKS EUROBLOCK 5POS

Part	Contact Material - Plating	Screw Material - Plating	Clamp Material - Plating [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Torque - Screw	Torque - Screw	Housing Material	Screw Thread	Color	Pitch	Pitch	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Current	Features	Voltage	Number of Levels	Positions Per Level	Wire Termination	Voltage - UL	Contact Mating Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Plug Wire Entry	Type	Termination Style	Wire Gauge or Range - mm²	Current - UL	Header Orientation	Mating Orientation	Mating Orientation
Adam Tech EBB-05-D-BL	Tin	Steel - Zinc Plated	Stainless Steel	115 °C	-40 C	2.6 Lb-In	0.3 Nm	Thermoplastic	M2.6	Blue	5.08 mm	0.2 in	Horizontal with Board	14 AWG	22 AWG	Through Hole	16 A	Interlocking (Side)	300 VDC	1	5	Screw - Leaf Spring Wire Guard
Adam Tech EB163A-02-C-180										Green	5 mm	0.197 in	Vertical with Board	12 AWG	24 AWG	Through Hole	20 A		300 VDC	1	2	Leg Spring Push-In Spring

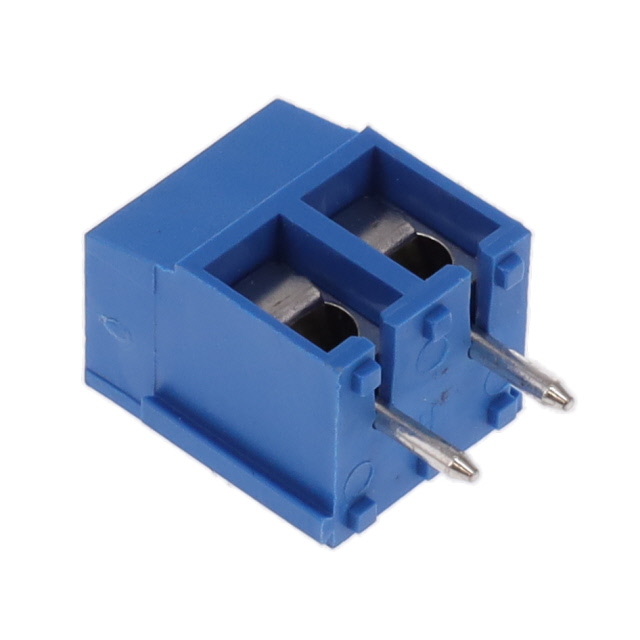

Adam Tech EBA-02-D-BU-01	Tin	Steel - Zinc Plated	Stainless Steel	115 °C	-40 C	3.5 Lb-In	0.4 Nm	Thermoplastic	M3	Blue	5.08 mm	0.2 in	Horizontal with Board	14 AWG	22 AWG	Through Hole	15 A	Interlocking (Side)	300 VDC	1	2	Screw - Leaf Spring Wire Guard
Adam Tech EBBA-03-C-SS-BU										Blue	5 mm	0.197 in	Horizontal with Board	14 AWG	22 AWG	Through Hole	16 A	Interlocking (Side)		1	3	Screw - Leaf Spring Wire Guard
Adam Tech EB9A-03-D				105 ░C	-40 C					Green	5.08 mm	0.2 in				Free Hanging (In-Line)		Retention Latches (Wire Side)		1	3		300 V	Nickel	14 AWG	28 AWG	90 °	Plug Female Sockets	Screw - Leaf Spring Wire Guard	2.5 mm²

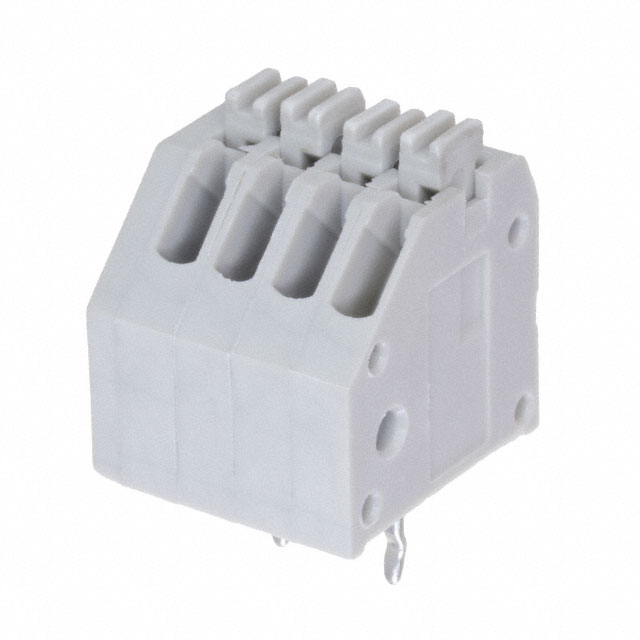

Adam Tech EB59A-04-V	Phosphor Bronze - Tin Plated			105 ░C	-40 C					Gray	2.5 mm	0.098 in	Horizontal with Board	19.5 AWG	28 AWG	Kinked Pin Through Hole	4 A		300 VDC	1	4	Leg Spring Push-In Spring
Adam Tech EBRA-03-A				105 ░C	-40 C					Green	3.5 mm	0.138 "				Through Hole				1	3		300 V	Tin				Header Male Pins Shrouded (4 Side)	Solder		8 A	Vertical
Adam Tech EB21A-02-D-DA	Tin			105 ░C	-40 C	3.5 Lb-In	0.4 Nm		M2.5	Green	5.08 mm	0.2 in		14 AWG	26 AWG	Through Hole	12 A	Interlocking (Side)	300 VDC	1	2	Screw - Rising Cage Clamp											135 °	45 °

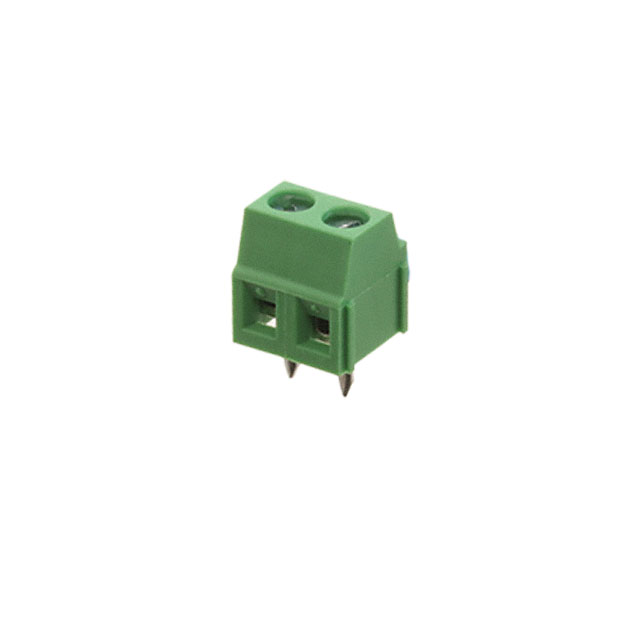

Adam Tech EBWA-02-B	Brass - Tin Plated	Steel - Zinc Plated		105 ░C	-40 C	1.7 Lb-In	0.2 Nm		M2	Green	3.81 mm	0.15 in	Horizontal with Board	16 AWG	28 AWG	Through Hole	10 A	Interlocking (Side)	300 VDC	1	2	Screw - Rising Cage Clamp
Adam Tech EB7-03-C										Green	5 mm	0.197 in	Horizontal with Board	12 AWG	22 AWG	Through Hole	20 A		300 VDC	1	3	Screw
