RV8C010 Series

Catalog

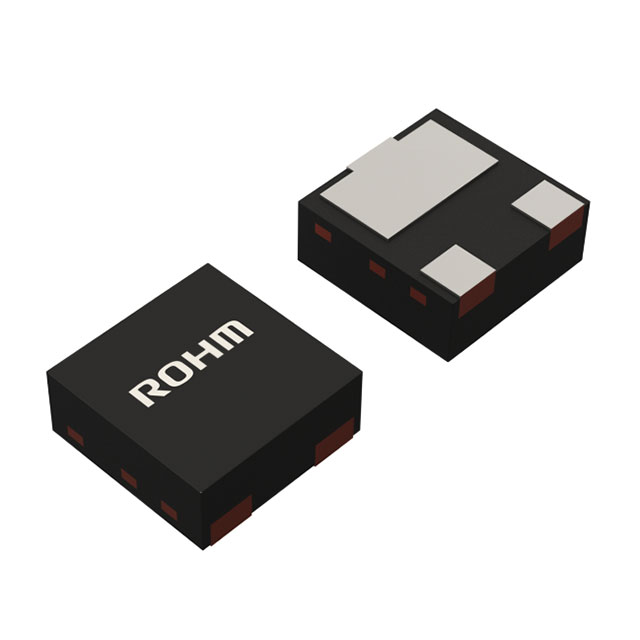

MOSFET, N-CH, 20V, 1A, DFN1010 ROHS COMPLIANT: YES

Part	Technology	FET Type	Mounting Type	Vgs (Max) [Max]	Grade	Qualification	Rds On (Max) @ Id, Vgs	Operating Temperature	Power Dissipation (Max) [Max]	Supplier Device Package	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Package / Case	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds
Rohm Semiconductor RV8C010UNHZGG2CR	MOSFET (Metal Oxide)	N-Channel	Surface Mount	8 V	Automotive	AEC-Q101	470 mOhm	150 °C	1 W	DFN1010-3W	20 V	1 V	3-XFDFN	1 A	40 pF
