EBKA Series

Manufacturer: Adam Tech

Catalog

EURO BLOCK 5P

Part	Insulation Height	Insulation Height	Material Flammability Rating	Screw Size	Torque - Screw	Torque - Screw	Contact Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Plug Wire Entry	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Number of Levels	Positions Per Level	Pitch	Pitch	Current - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Color	Voltage - UL	Contact Mating Finish	Number of Positions

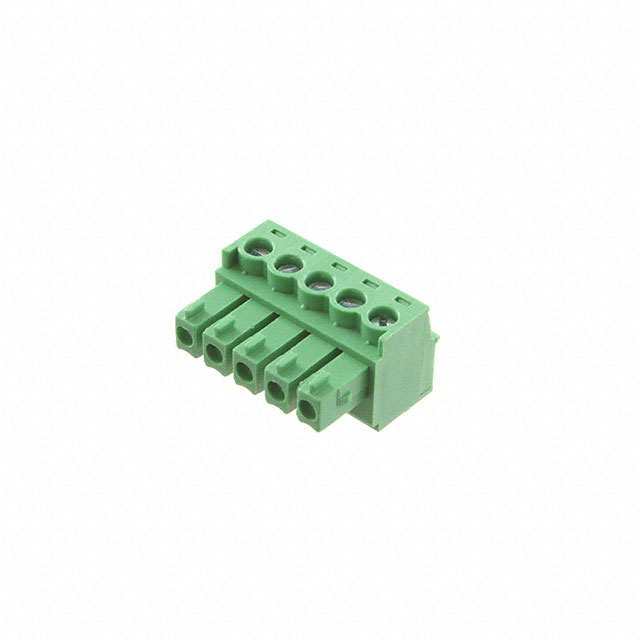

Adam Tech EBKA-05-B	11.2 mm	0.441 in	UL94 V-0	M2	1.7 Lb-In	0.2 Nm	Phosphor Bronze	7 mm	6 mm	180 °	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Plug Female Sockets	Free Hanging (In-Line)	1	5	3.81 mm	0.15 in	8 A	28 AWG	16 AWG	Green	300 V	Nickel	5

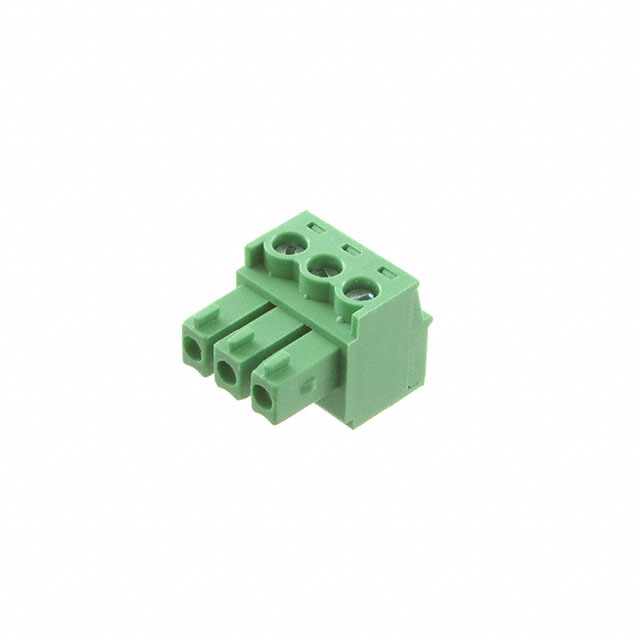

Adam Tech EBKA-03-B	11.2 mm	0.441 in	UL94 V-0	M2	1.7 Lb-In	0.2 Nm	Phosphor Bronze	7 mm	6 mm	180 °	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Plug Female Sockets	Free Hanging (In-Line)	1	3	3.81 mm	0.15 in	8 A	28 AWG	16 AWG	Green	300 V	Nickel

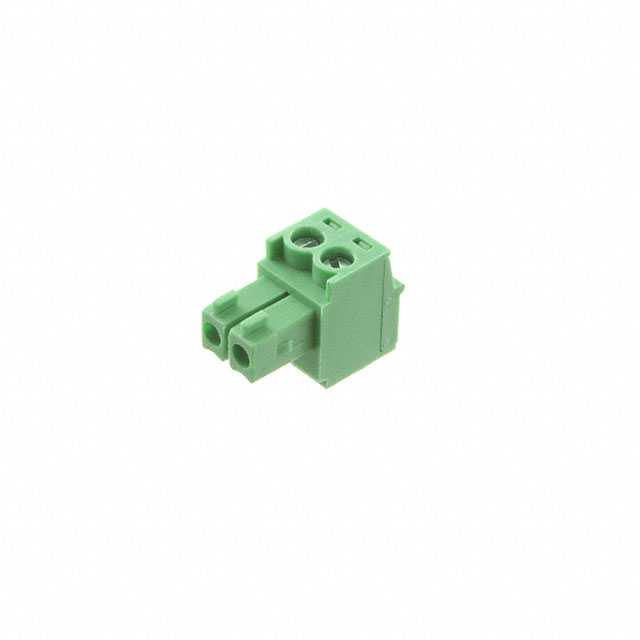

Adam Tech EBKA-02-A	11.2 mm	0.441 in	UL94 V-0	M2	1.7 Lb-In	0.2 Nm	Phosphor Bronze	7 mm	6 mm	180 °	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Plug Female Sockets	Free Hanging (In-Line)	1	2	3.5 mm	0.138 "	8 A	28 AWG	16 AWG	Green	300 V	Nickel	2

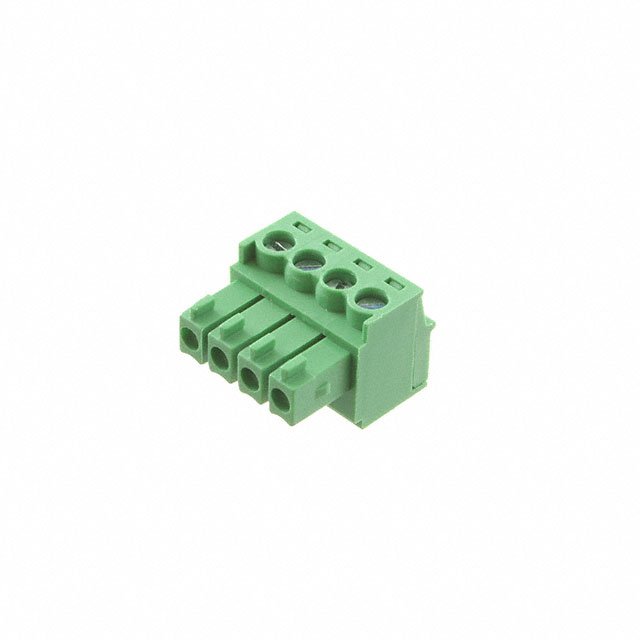

Adam Tech EBKA-04-A	11.2 mm	0.441 in	UL94 V-0	M2	1.7 Lb-In	0.2 Nm	Phosphor Bronze	7 mm	6 mm	180 °	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Plug Female Sockets	Free Hanging (In-Line)	1	4	3.5 mm	0.138 "	8 A	28 AWG	16 AWG	Green	300 V	Nickel	4
