1095A Series
Manufacturer: Belden Inc.
Beta
⌘K

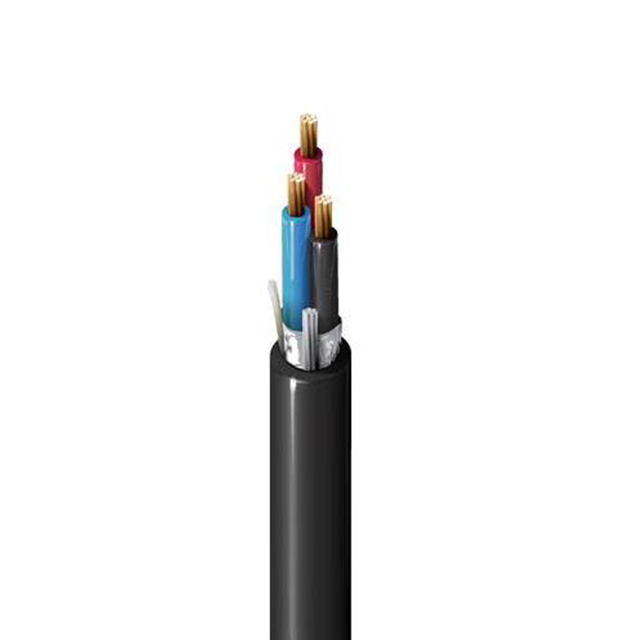

CABLE 36 COND 18AWG BLACK
| Part | Shield Material | Shield Coverage | Features | Shield Type | Jacket (Insulation) Material | Conductor Material | Wire Gauge | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length [x] | Jacket Color | Number of Conductors | Conductor Insulation | Conductor Insulation | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Drain Wire Rip Cord | Foil | Poly-Vinyl Chloride (PVC) | Copper Bare | 18 AWG | Multi-Triad | 0.083 " | 2.108 mm | 26 AWG | 7 | 2286 m | 7500 ft | Black | 36 | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 0.94 in | 23.88 mm | |
 Belden Inc. | Aluminum | 100 % | Drain Wire Rip Cord | Foil | Poly-Vinyl Chloride (PVC) | Copper Bare | 18 AWG | Multi-Triad | 0.083 " | 2.108 mm | 26 AWG | 7 | 762 m | Black | 36 | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 0.94 in | 23.88 mm | 2500 ft | |
 Belden Inc. | Aluminum | 100 % | Drain Wire Rip Cord | Foil | Poly-Vinyl Chloride (PVC) | Copper Bare | 18 AWG | Multi-Triad | 0.083 " | 2.108 mm | 26 AWG | 7 | Black | 36 | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | 0.94 in | 23.88 mm |
