307-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K

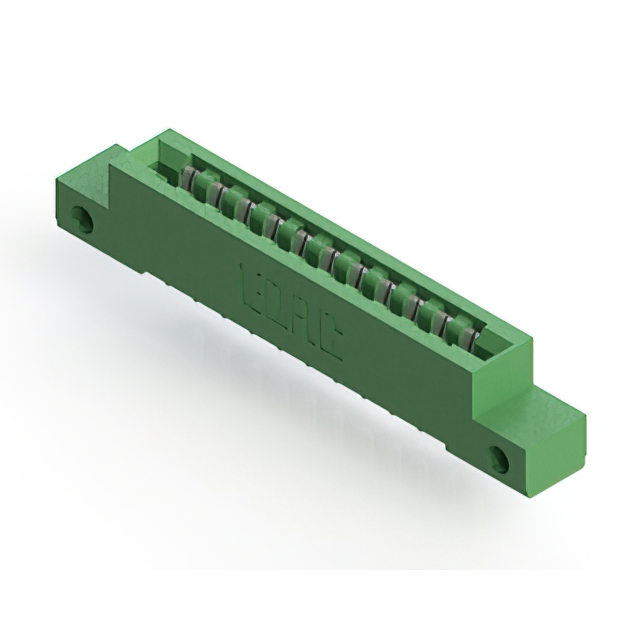

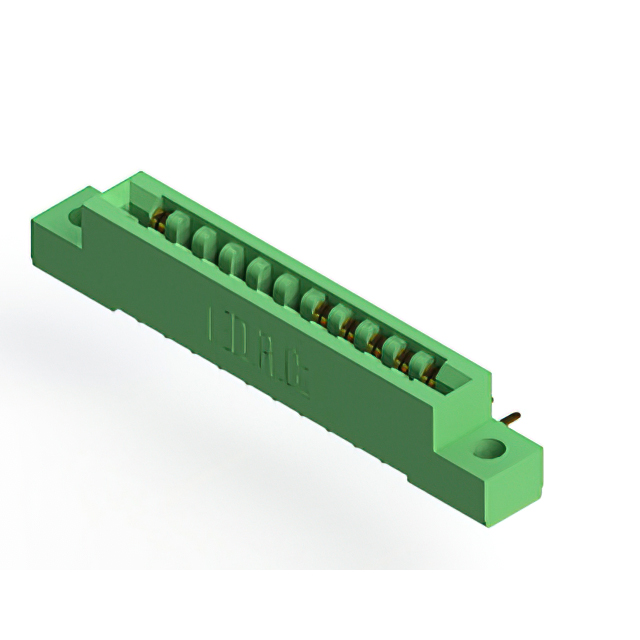

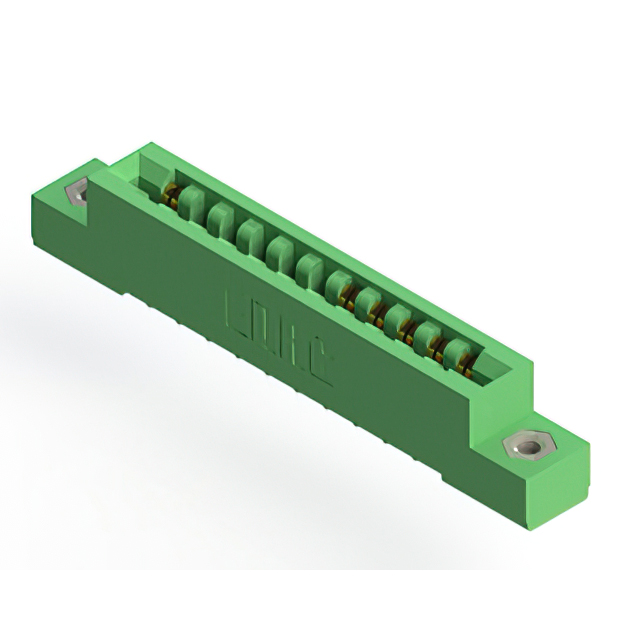

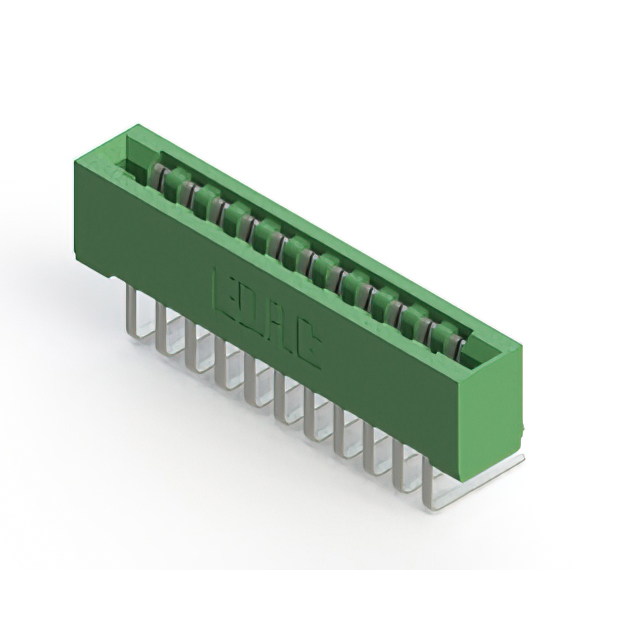

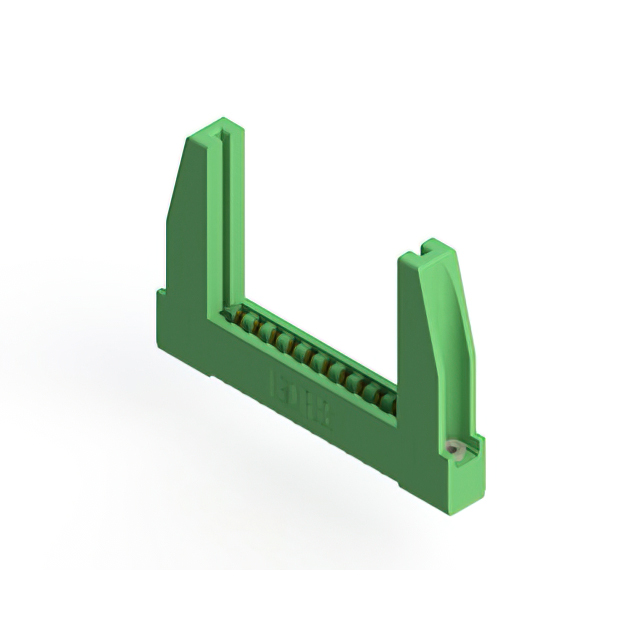

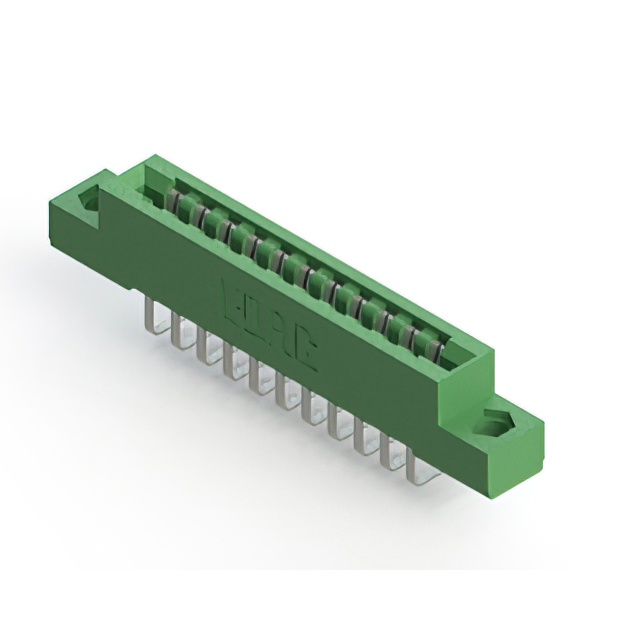

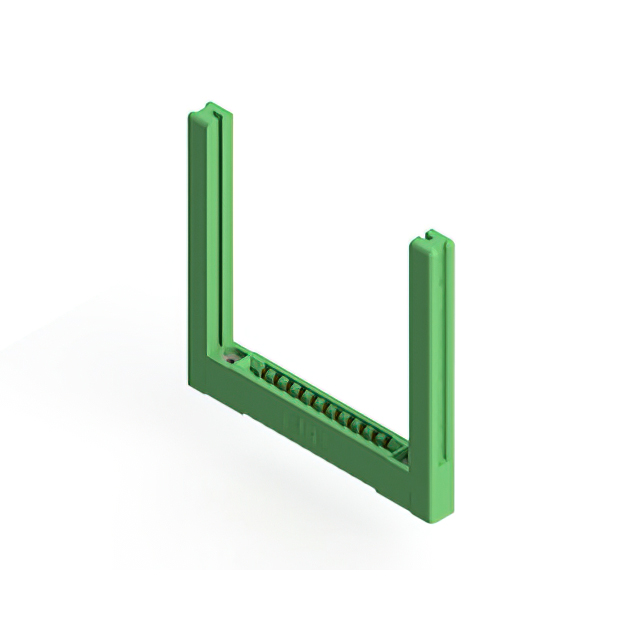

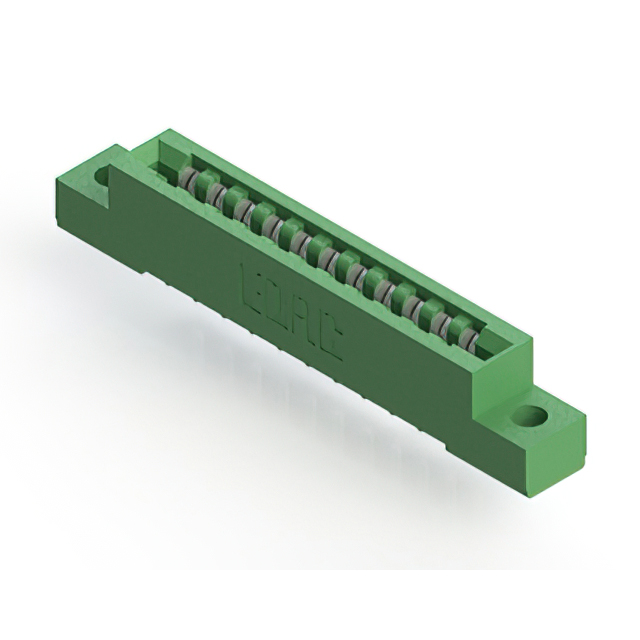

CONN EDGE DUAL FMALE 22POS 0.156
| Part | Material - Insulation | Termination Rows | Number of Positions | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Number of Positions/Bay/Row | Contact Type | Read Out | Mounting Type | Flange Feature | Number of Rows [custom] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish | Gender | Color | Features | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 22 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 11 | Semi Bellows | Dual | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | -40 C | 105 ░C | Solder | Gold | Female | Green | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 22 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 11 | Semi Bellows | Dual | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | -40 C | 105 ░C | Solder Eyelet(s) | Gold | Female | Green | Card Guides | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 11 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 11 | Semi Bellows | Single | Through Hole | Flush Mount Side Opening Unthreaded | Non Specified - Single Edge | -40 C | 105 ░C | Solder | Tin | Female | Green | 0.128 " | 3.25 mm | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 22 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 11 | Semi Bellows | Dual | Through Hole | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge | -40 C | 105 ░C | Solder | Tin | Female | Green | 0.128 " | 3.25 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 11 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 11 | Semi Bellows | Single | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | -40 C | 105 ░C | Solder | Gold | Female | Green | Card Guides | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 22 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 11 | Semi Bellows | Dual | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | -40 C | 105 ░C | Solder | Tin | Female | Green | Card Guides | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 22 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 11 | Semi Bellows | Dual | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Non Specified - Dual Edge | -40 C | 105 ░C | Solder Eyelet(s) | Gold | Female | Green | Card Guides | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 11 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 11 | Semi Bellows | Single | Right Angle Through Hole | Non Specified - Single Edge | -40 C | 105 ░C | Solder | Tin | Female | Green | 1 | |||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 22 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | 11 | Semi Bellows | Dual | Right Angle Through Hole | Flush Mount Top Opening Unthreaded | 2 | Non Specified - Dual Edge | -40 C | 105 ░C | Wire Wrap | Gold | Female | Green | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 11 | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 11 | Semi Bellows | Single | Right Angle Through Hole | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | -40 C | 105 ░C | Solder | Tin | Female | Green | 0.156 " | 3.96 mm | 1 |
