R14178 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

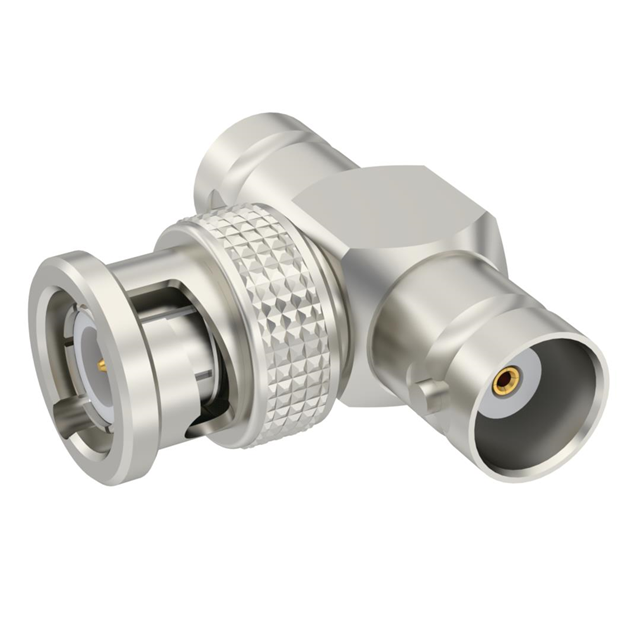

BNC / TEE MALE-FEMALE/FEMALE ADA
| Part | Body Material | Center Contact Material | Body Finish | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Adapter Type | Conversion Type | Mounting Type | Center Contact Plating | Convert To (Adapter End) | Impedance | Convert From (Adapter End) | Fastening Type | Style | Frequency - Max [Max] | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Beryllium Copper Brass | Nickel | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Plug to Jack | Same Series | Free Hanging (In-Line) | Gold | BNC Jack Female Socket (2) | 50 Ohms | BNC Plug Male Pin | Bayonet Lock | T-Shape | 4 GHz | BNC to BNC Dual |
 Radiall USA, Inc. | Brass | Beryllium Copper Brass | Nickel | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Plug to Jack | Same Series | Free Hanging (In-Line) | Gold | BNC Jack Female Socket (2) | 50 Ohms | BNC Plug Male Pin | Bayonet Lock | T-Shape | 4 GHz | BNC to BNC Dual |
