PBC36 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 72POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Contact Material	Insulation Material	Insulation Color	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Style	Number of Positions Loaded	Material Flammability Rating	Shrouding	Contact Type	Termination	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Shape	Fastening Type	Insulation Height	Insulation Height	Connector Type	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Number of Rows	Insulation Height [z]	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]

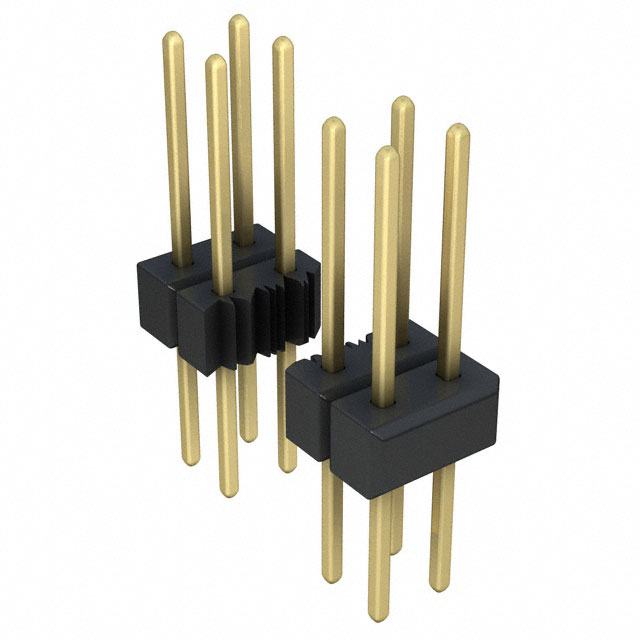

Sullins Connector Solutions PBC36DFBN	2.54 µm	100 µin	3 A	0.1 in	2.54 mm	8.08 mm	0.318 in	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Through Hole	0.25 µm	10 µin	Gold	2	-65 ░C	125 °C	Board to Board Cable	All	UL94 V-0	Unshrouded	Male Pin	Solder	0.1 "	2.54 mm	72	Square	Push-Pull	0.1 in	2.54 mm	Header Breakaway	0.638 in	16.21 mm	5.58 mm	0.22 in	Tin

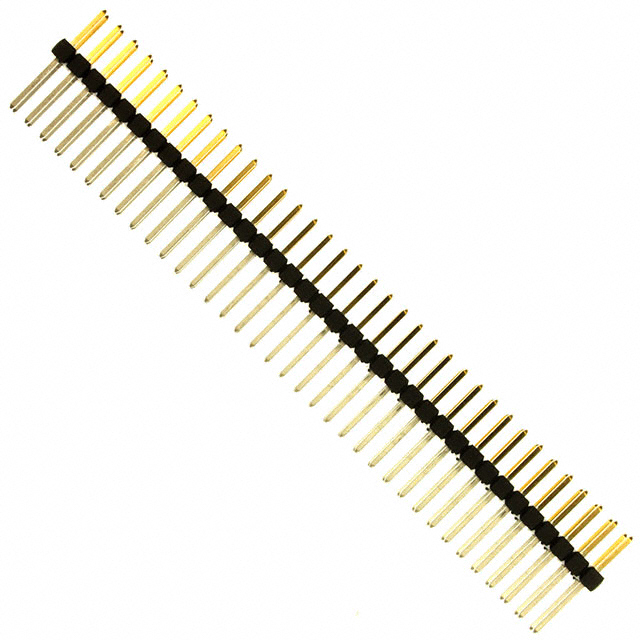

Sullins Connector Solutions PBC36DACN	2.54 µm	100 µin	3 A	0.1 in	2.54 mm	5.84 mm	0.23 in	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Through Hole	0.25 µm	10 µin	Gold	2	-65 ░C	125 °C	Board to Board Cable	All	UL94 V-0	Unshrouded	Male Pin	Solder	0.1 "	2.54 mm	72	Square	Push-Pull	0.1 in	2.54 mm	Header Breakaway	0.65 in	16.51 mm	8.13 mm	0.32 in	Tin

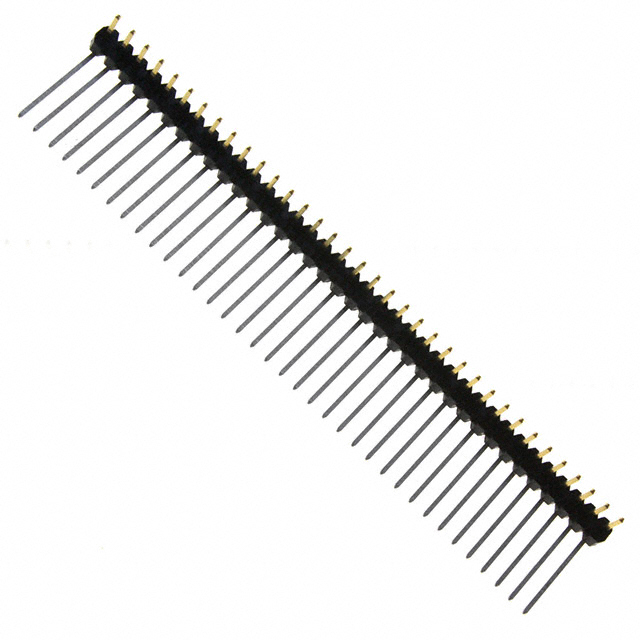

Sullins Connector Solutions PBC36SBEN	2.54 µm	100 µin	3 A			5.84 mm	0.23 in	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Right Angle Through Hole	0.25 µm	10 µin	Gold		-65 ░C	125 °C	Board to Board Cable	All	UL94 V-0	Unshrouded	Male Pin	Solder	0.1 "	2.54 mm	36	Square	Push-Pull	0.14 in	3.56 mm	Header Breakaway			12.7 mm	0.5 "	Tin	1
Sullins Connector Solutions PBC36SBCN	2.54 µm	100 µin	3 A			5.84 mm	0.23 in	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Right Angle Through Hole	0.25 µm	10 µin	Gold		-65 ░C	125 °C	Board to Board Cable	All	UL94 V-0	Unshrouded	Male Pin	Solder	0.1 "	2.54 mm	36	Square	Push-Pull	0.14 in	3.56 mm	Header Breakaway			7.62 mm	0.3 in	Tin	1

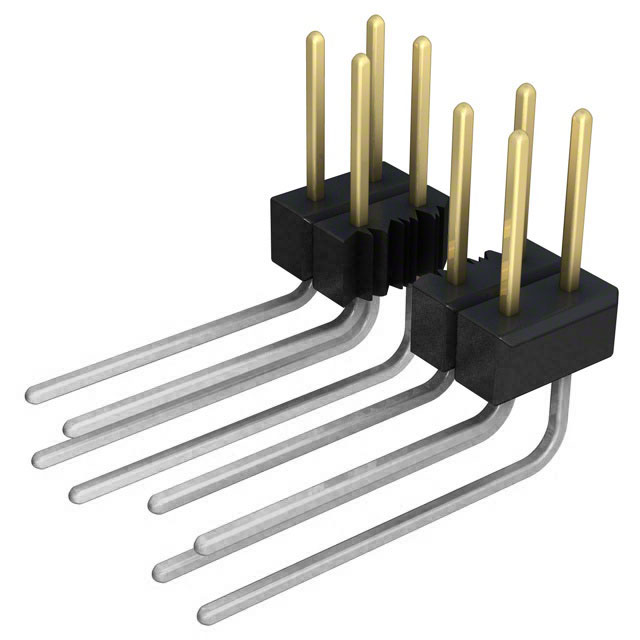

Sullins Connector Solutions PBC36DBDN	2.54 µm	100 µin	3 A	0.1 in	2.54 mm	5.84 mm	0.23 in	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Right Angle Through Hole	0.25 µm	10 µin	Gold	2	-65 ░C	125 °C	Board to Board Cable	All	UL94 V-0	Unshrouded	Male Pin	Solder	0.1 "	2.54 mm	72	Square	Push-Pull			Header Breakaway			10.16 mm	0.4 in	Tin		6.1 mm	0.24 in
Sullins Connector Solutions PBC36SADN	2.54 µm	100 µin	3 A			5.84 mm	0.23 in	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Through Hole	0.25 µm	10 µin	Gold		-65 ░C	125 °C	Board to Board Cable	All	UL94 V-0	Unshrouded	Male Pin	Solder	0.1 "	2.54 mm	36	Square	Push-Pull	0.1 in	2.54 mm	Header Breakaway			10.67 mm	0.42 in	Tin	1			19.05 mm	0.75 in

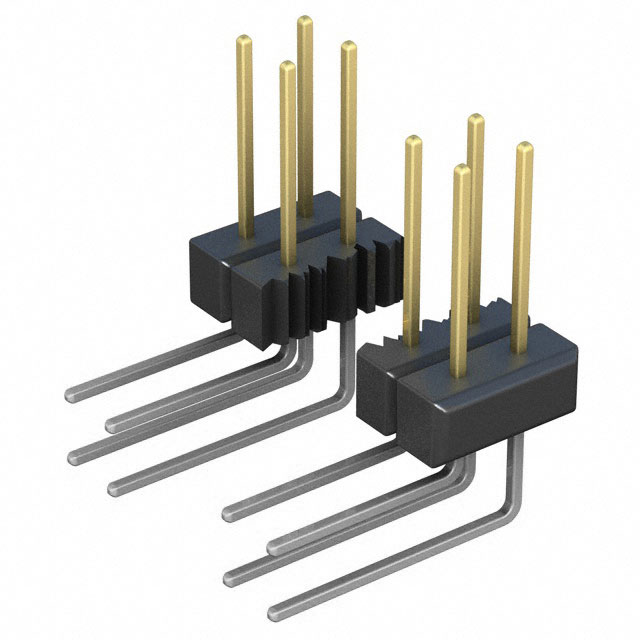

Sullins Connector Solutions PBC36DBCN	2.54 µm	100 µin	3 A	0.1 in	2.54 mm	5.84 mm	0.23 in	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Right Angle Through Hole	0.25 µm	10 µin	Gold	2	-65 ░C	125 °C	Board to Board Cable	All	UL94 V-0	Unshrouded	Male Pin	Solder	0.1 "	2.54 mm	72	Square	Push-Pull			Header Breakaway			7.62 mm	0.3 in	Tin		6.1 mm	0.24 in

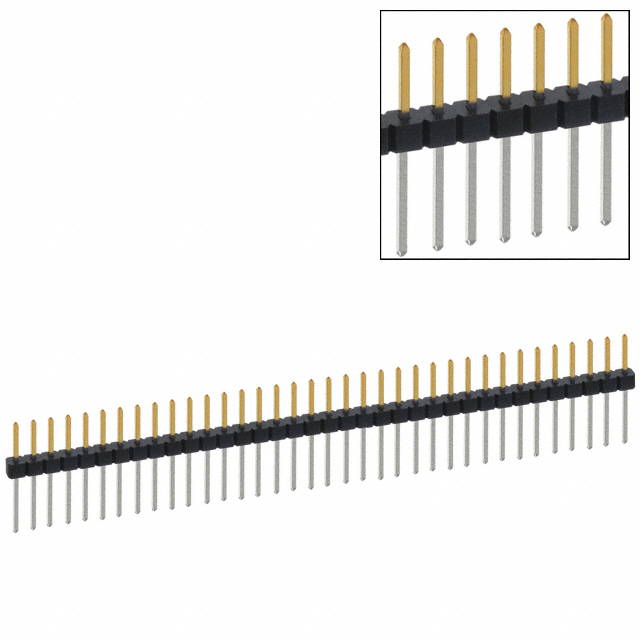

Sullins Connector Solutions PBC36SACN	2.54 µm	100 µin	3 A			5.84 mm	0.23 in	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Through Hole	0.25 µm	10 µin	Gold		-65 ░C	125 °C	Board to Board Cable	All	UL94 V-0	Unshrouded	Male Pin	Solder	0.1 "	2.54 mm	36	Square	Push-Pull	0.1 in	2.54 mm	Header Breakaway	0.65 in	16.51 mm	8.13 mm	0.32 in	Tin	1

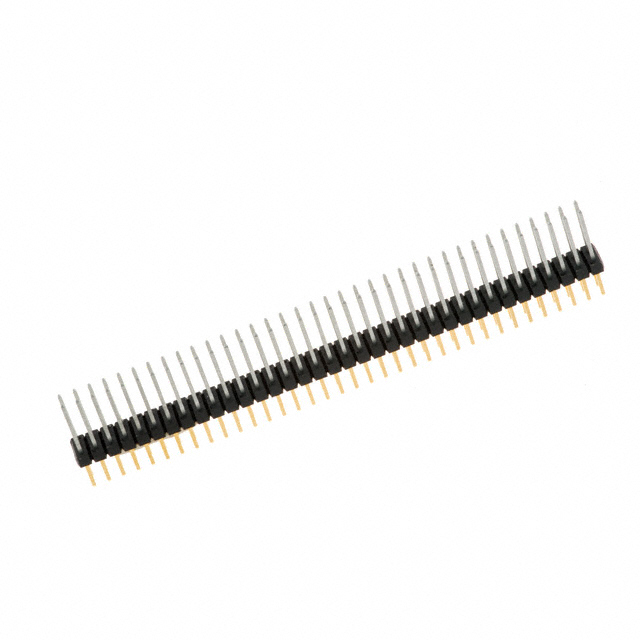

Sullins Connector Solutions PBC36DADN	2.54 µm	100 µin	3 A	0.1 in	2.54 mm	5.84 mm	0.23 in	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Through Hole	0.25 µm	10 µin	Gold	2	-65 ░C	125 °C	Board to Board Cable	All	UL94 V-0	Unshrouded	Male Pin	Solder	0.1 "	2.54 mm	72	Square	Push-Pull	0.1 in	2.54 mm	Header Breakaway			10.67 mm	0.42 in	Tin				19.05 mm	0.75 in
Sullins Connector Solutions PBC36SBDN	2.54 µm	100 µin	3 A			5.84 mm	0.23 in	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Right Angle Through Hole	0.25 µm	10 µin	Gold		-65 ░C	125 °C	Board to Board Cable	All	UL94 V-0	Unshrouded	Male Pin	Solder	0.1 "	2.54 mm	36	Square	Push-Pull	0.14 in	3.56 mm	Header Breakaway			10.16 mm	0.4 in	Tin	1
