K40F1C-P Series
Manufacturer: ODU
Beta
⌘K

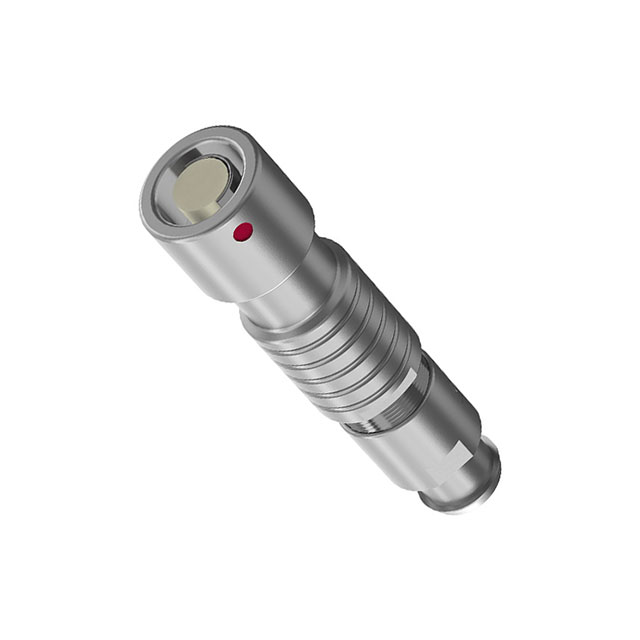

ODU MINI-SNAP INLINE RECEPTACLE,
| Part | Insert Material | Color | Shell Material | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Contact Finish - Mating | Contact Material | Shell Size - Insert [custom] | Number of Positions | Shielding | Orientation [custom] | Current Rating (Amps) | Backshell Material, Plating | Applications | Mounting Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Features | Fastening Type | Voltage Rating | Shell Finish | Connector Type | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 120 °C | -40 C | IP68 - Dust Tight Waterproof | Gold | Brass | 0 | 2 | Unshielded | 1 | 7.5 A | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 2 mm | 1.5 mm | 0.079 " | 0.059 " | Backshell Strain Relief | Push-Pull | 500 V | Chrome over Nickel | Receptacle Female Sockets | Metal | |
Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 120 °C | -40 C | IP68 - Dust Tight Waterproof | Gold | Brass | 0 | 7 | 1 | 4 A | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 4.5 mm | 4 mm | 0.177 " | 0.157 in | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Receptacle Female Sockets | Metal | |||
Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 120 °C | -40 C | IP68 - Dust Tight Waterproof | Gold | Brass | 0 | 7 | 1 | 4 A | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 5 mm | 4.5 mm | 0.197 in | 0.177 in | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Receptacle Female Sockets | Metal | |||
Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 120 °C | -40 C | IP68 - Dust Tight Waterproof | Gold | Brass | 0 | 7 | Unshielded | 1 | 4 A | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 1.5 mm | 1 mm | 0.059 in | 0.039 in | Backshell Strain Relief | Push-Pull | 300 VDC | Chrome over Nickel | Receptacle Female Sockets | Metal | |
Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 120 °C | -40 C | IP68 - Dust Tight Waterproof | Gold | Brass | 0 | Unshielded | 1 | 7.5 A | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 3 mm | 2.5 mm | 0.118 " | 0.098 in | Backshell Strain Relief | Push-Pull | 400 V | Chrome over Nickel | Receptacle Female Sockets | Metal | ||
Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 120 °C | -40 C | IP68 - Dust Tight Waterproof | Gold | Brass | 0 | 2 | Unshielded | 1 | 7.5 A | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 3.5 mm | 3 mm | 0.138 in | 0.118 in | Backshell Strain Relief | Push-Pull | 500 V | Chrome over Nickel | Receptacle Female Sockets | Metal | |
Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 120 °C | -40 C | IP68 - Dust Tight Waterproof | Gold | Brass | 0 | 7 | Unshielded | 1 | 4 A | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 3.5 mm | 3 mm | 0.138 in | 0.118 in | Backshell Strain Relief | Push-Pull | 300 VDC | Chrome over Nickel | Receptacle Female Sockets | Metal | |
Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 120 °C | -40 C | IP68 - Dust Tight Waterproof | Gold | Brass | 0 | 9 | 1 | 4 A | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 4.5 mm | 4 mm | 0.177 " | 0.157 in | Backshell Strain Relief | Push-Pull | Chrome over Nickel | Receptacle Female Sockets | Metal | |||
Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 120 °C | -40 C | IP68 - Dust Tight Waterproof | Gold | Brass | 0 | 4 | Unshielded | 1 | 7.5 A | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 1.5 mm | 1 mm | 0.059 in | 0.039 in | Backshell Strain Relief | Push-Pull | 300 VDC | Chrome over Nickel | Receptacle Female Sockets | Metal | |
Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 120 °C | -40 C | IP68 - Dust Tight Waterproof | Gold | Brass | 0 | Unshielded | 1 | 7.5 A | Brass Chrome over Nickel | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 3.5 mm | 3 mm | 0.138 in | 0.118 in | Backshell Strain Relief | Push-Pull | 400 V | Chrome over Nickel | Receptacle Female Sockets | Metal |
