2199125 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN M.2 FMALE 67POS 0.020 GOLD

Part	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Positions	Number of Rows	Card Type	Contact Finish	Color	Mounting Type	Material - Insulation	Contact Material	Gender	Termination	Features	Contact Finish Thickness

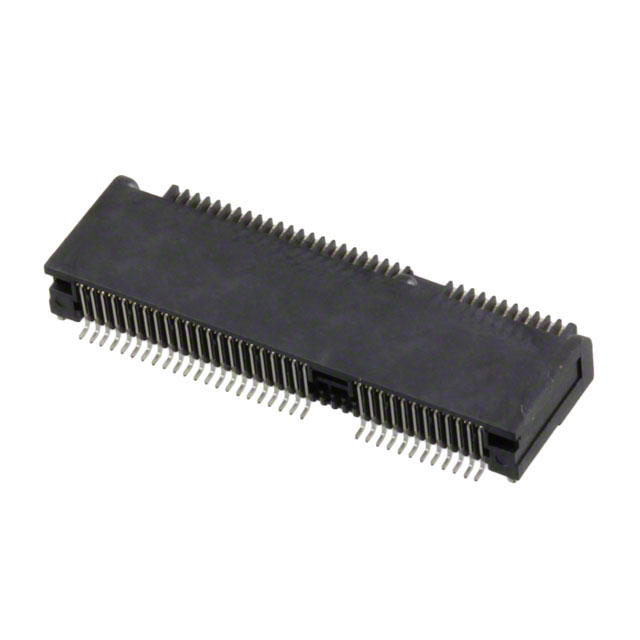

TE Connectivity Raychem Cable Protection 2199125-4	0.5 mm	0.02 in	15 µin	0.38 µm	Dual	67	2	M.2 (NGFF) Mini Card	Gold	Black	Surface Mount Right Angle	Thermoplastic	Copper Alloy	Female	Solder	Board Guide

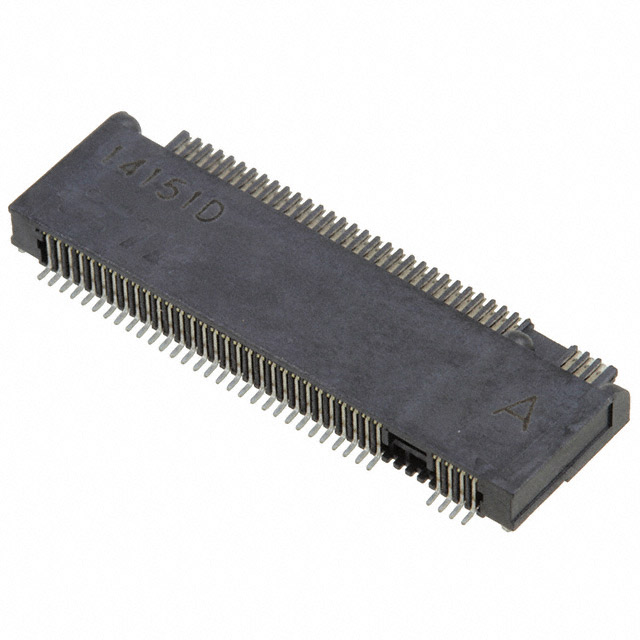

TE Connectivity Raychem Cable Protection 2199125-8	0.5 mm	0.02 in	15 µin	0.38 µm	Dual	67	2	M.2 (NGFF) Mini Card	Gold	Black	Surface Mount Right Angle	Thermoplastic	Copper Alloy	Female	Solder	Board Guide
TE Connectivity Raychem Cable Protection 1-2199125-4	0.5 mm	0.02 in	15 µin	0.38 µm	Dual	67	2	M.2 (NGFF) Mini Card	Gold	Black	Surface Mount Right Angle	Thermoplastic	Copper Alloy	Female	Solder	Board Guide
TE Connectivity Raychem Cable Protection 2199125-9	0.5 mm	0.02 in	30 Áin	0.76 Ám	Dual	67	2	M.2 (NGFF) Mini Card	Gold	Black	Surface Mount Right Angle	Thermoplastic	Copper Alloy	Female	Solder	Board Guide

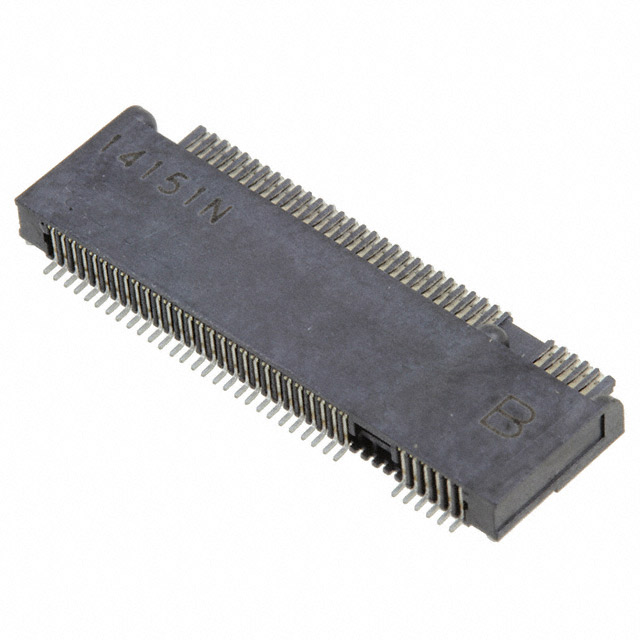

TE Connectivity Raychem Cable Protection 2199125-3	0.5 mm	0.02 in	15 µin	0.38 µm	Dual	67	2	M.2 (NGFF) Mini Card	Gold	Black	Surface Mount Right Angle	Thermoplastic	Copper Alloy	Female	Solder	Board Guide
TE Connectivity Raychem Cable Protection 2199125-1	0.5 mm	0.02 in			Dual	67	2	M.2 (NGFF) Mini Card	Gold	Black	Surface Mount Right Angle	Thermoplastic	Copper Alloy	Female	Solder	Board Guide	Flash
TE Connectivity Raychem Cable Protection 2199125-7	0.5 mm	0.02 in			Dual	67	2	M.2 (NGFF) Mini Card	Gold	Black	Surface Mount Right Angle	Thermoplastic	Copper Alloy	Female	Solder	Board Guide	Flash
