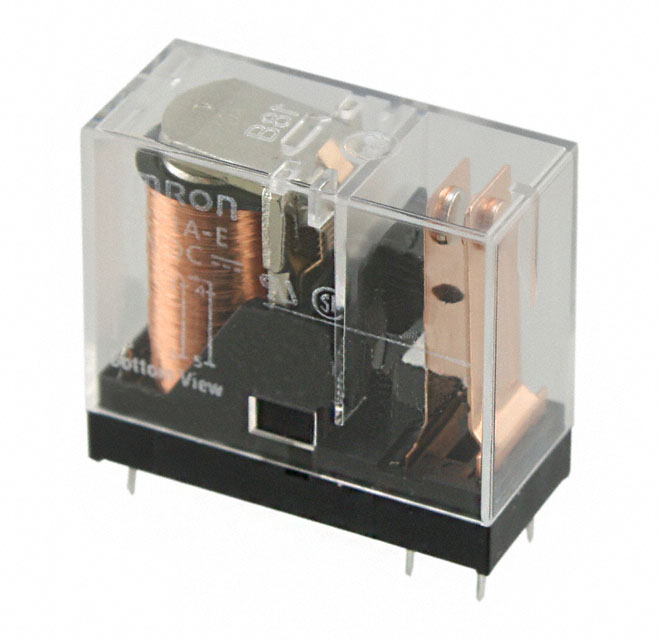

G2R-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 10A 240V
| Part | Relay Type | Coil Voltage | Coil Current | Contact Rating (Current) | Must Operate Voltage | Seal Rating | Contact Material | Mounting Type | Switching Voltage | Must Release Voltage | Contact Form | Termination Style | Load - Max Switching | Coil Type | Operate Time | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | General Purpose | 240 VAC | 3.8 mA | 10 A | 192 VAC | Sealed - Flux Protection | Silver Alloy | Through Hole | 125 VDC 380 VAC | 72 VAC/DC | SPST-NO (1 Form A) | PC Pin | 1250 W 3800 VA | Non Latching | 15 ms | 10 ms | -40 °C | 70 °C | CSA TUV UR VDE | |
 Omron Electronics Inc-EMC Div | General Purpose | 24 VDC | 21.8 mA | 16 A | 16.8 VDC | Sealed - Flux Protection | Silver Alloy | Through Hole | 125 VDC 380 VAC | 3.6 VDC | SPST-NO (1 Form A) | PC Pin | 2000 W 6080 VA | Non Latching | 15 ms | 5 ms | -40 °C | 70 °C | CSA TUV UR VDE | |
Omron Electronics Inc-EMC Div | General Purpose | 12 VDC | 43.6 mA | 10 A | 8.4 VDC | Sealed - Flux Protection | Silver Alloy | Through Hole | 125 VDC 380 VAC | 1.8 VDC | SPST-NO (1 Form A) | PC Pin | 1250 W 3800 VA | Non Latching | 15 ms | 5 ms | -40 °C | 70 °C | CSA TUV UR VDE | 275 Ohms |

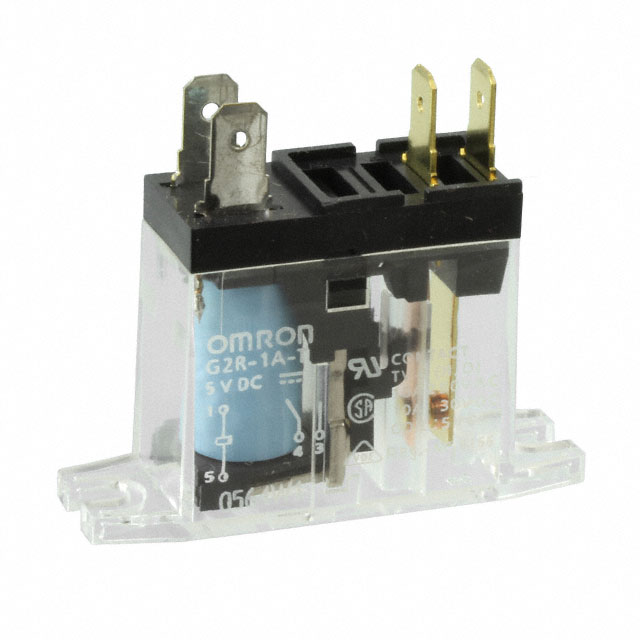

 Omron Electronics Inc-EMC Div | General Purpose | 12 VAC/DC | 75 mA | 10 A | 9.6 VAC/DC | Sealed - Flux Protection | Silver Alloy | Chassis Mount | 125 VDC 380 VAC | 3.6 VAC | SPST-NO (1 Form A) | Quick Connect - 0.187" (4.7mm) | 1250 W 3800 VA | Non Latching | 15 ms | 10 ms | -40 °C | 70 °C | CSA TUV UR VDE | 65 Ohms |
Omron Electronics Inc-EMC Div | General Purpose | 110 VAC/DC | 7.5 mA | 10 A | 88 VAC/DC | Sealed - Flux Protection | Silver Alloy | Chassis Mount | 125 VDC 380 VAC | 33 VAC | SPST-NO (1 Form A) | Quick Connect - 0.187" (4.7mm) | 1250 W 3800 VA | Non Latching | 15 ms | 10 ms | -40 °C | 70 °C | CSA TUV UR VDE | 4.6 kOhms |
Omron Electronics Inc-EMC Div | General Purpose | 18 VDC | 29.4 mA | 16 A | 12.6 VDC | Sealed - Flux Protection | Cadmium Free Silver Alloy | Through Hole | 125 VDC 380 VAC | 2.7 VDC | SPST-NO (1 Form A) | PC Pin | Non Latching | 15 ms | 5 ms | -40 °C | 70 °C | 612 Ohms | ||
Omron Electronics Inc-EMC Div | General Purpose | 220 VAC/DC | 4.1 mA | 16 A | 176 VAC | Sealed - Flux Protection | Silver Alloy | Through Hole | 125 VDC 380 VAC | 66 VAC | SPST-NO (1 Form A) | PC Pin | 2000 W 6080 VA | Non Latching | 15 ms | 10 ms | -40 °C | 70 °C | CSA TUV UR VDE | 25 kOhms |
Omron Electronics Inc-EMC Div | General Purpose | 110 VAC/DC | 10.6 mA | 16 A | 88 VAC/DC | Sealed - Flux Protection | Silver Alloy | Through Hole | 125 VDC 380 VAC | 33 VAC | SPST-NO (1 Form A) | PC Pin | 2000 W 6080 VA | Non Latching | 15 ms | 10 ms | -40 °C | 70 °C | CSA TUV UR VDE | 4.6 kOhms |
Omron Electronics Inc-EMC Div | General Purpose | 24 VDC | 21.8 mA | 16 A | 16.8 VDC | Sealed - Flux Protection | Silver Alloy | Through Hole | 125 VDC 380 VAC | 3.6 VDC | SPST-NO (1 Form A) | PC Pin | 2000 W 6080 VA | Non Latching | 15 ms | 5 ms | -40 °C | 70 °C | CSA TUV UR VDE | |
 Omron Electronics Inc-EMC Div | General Purpose | 100 VDC | 5.3 mA | 8 A | 70 VDC | Sealed - Fully | Silver Alloy | Through Hole | 125 VDC 380 VAC | 15 VDC | SPST-NO (1 Form A) | PC Pin | Non Latching | 15 ms | 5 ms | -40 °C | 70 °C | CSA TUV UR VDE | 18.86 kOhms |
