CBSPM Series

Catalog

BRD SPT SNAP FIT RUBBER 5/8"

Part	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Holding Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Features	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Material	Between Board Height	Between Board Height	Between Board Height	Mounting Type	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall

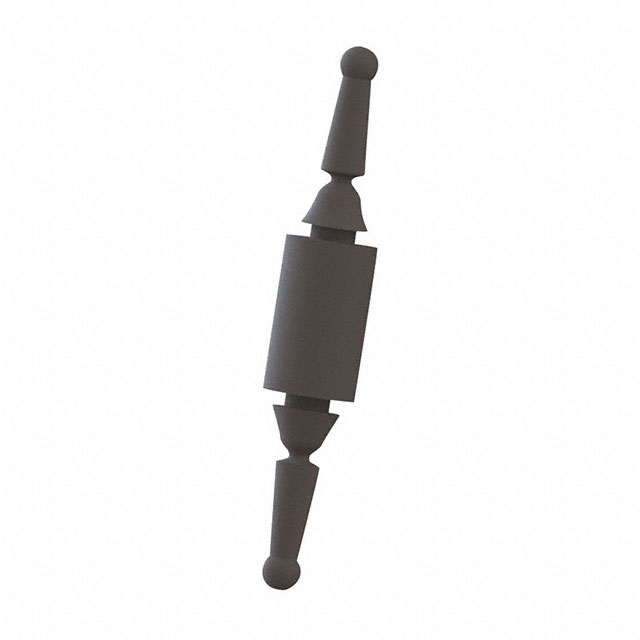

Essentra Components CBSPM-10	0.187 in	4.75 mm	3/16	Snap Fit	0.1875 in	0.187 in	4.75 mm	Vibration Dampening	2.4 mm	0.09375 in	0.093 in	0.09375 in	0.093 in	2.4 mm	Rubber	15.88 mm	0.625 in	5 8	Snap Lock	30.28 mm	1.192 in

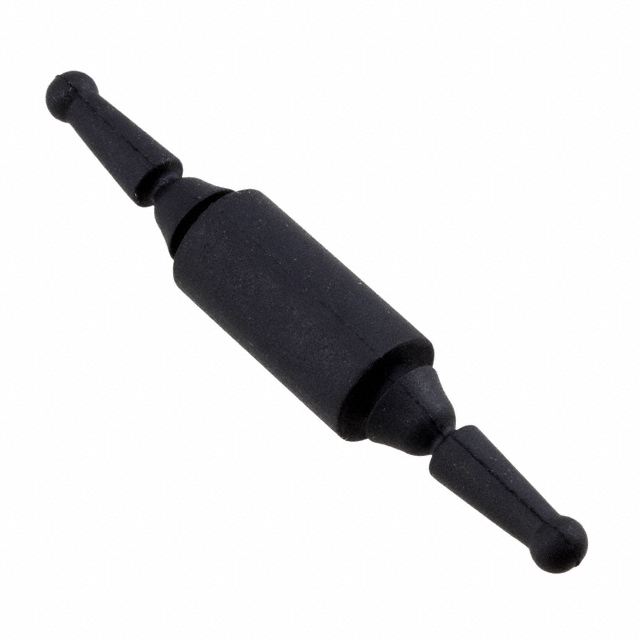

Essentra Components CBSPM-12	0.187 in	4.75 mm	3/16	Snap Fit	0.1875 in	0.187 in	4.75 mm	Vibration Dampening	2.4 mm	0.09375 in	0.093 in	0.09375 in	0.093 in	2.4 mm	Rubber	19.05 mm	0.75 "	0.75 "	Snap Lock	31.45 mm	1.238 in

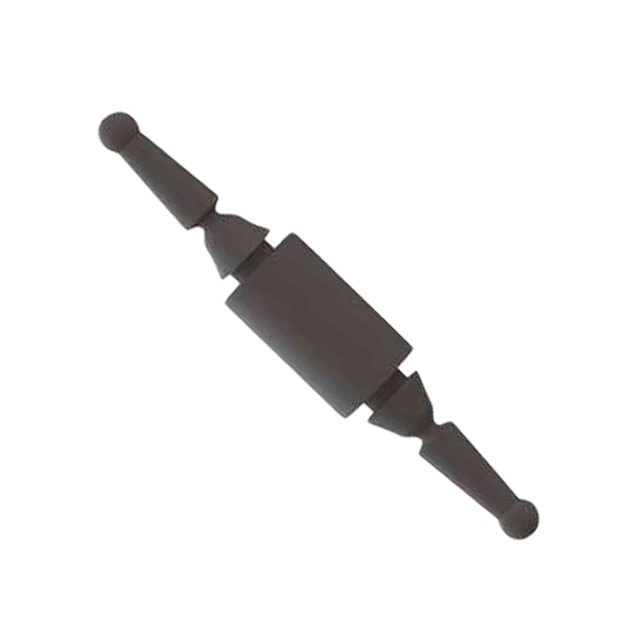

Essentra Components CBSPM-4	0.187 in	4.75 mm	3/16	Snap Fit	0.1875 in	0.187 in	4.75 mm	Vibration Dampening	2.4 mm	0.09375 in	0.093 in	0.09375 in	0.093 in	2.4 mm	Rubber	0.25 in	6.35 mm		Snap Lock	20.75 mm	0.817 in

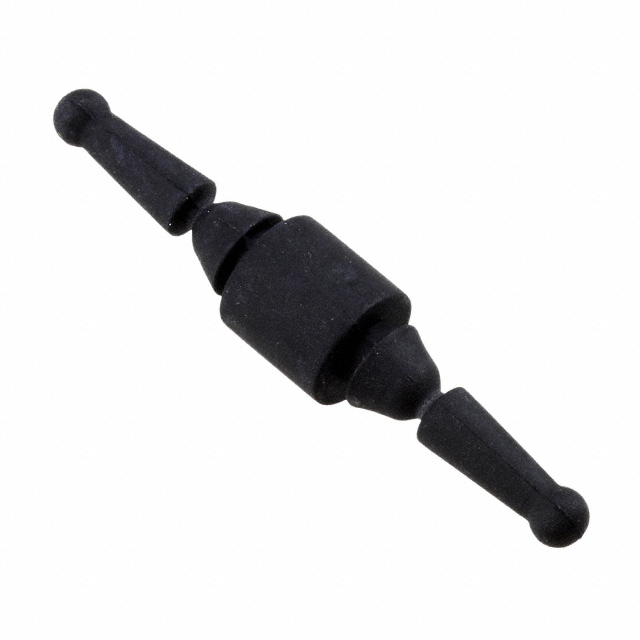

Essentra Components CBSPM-6	0.187 in	4.75 mm	3/16	Snap Fit	0.1875 in	0.187 in	4.75 mm	Vibration Dampening	2.4 mm	0.09375 in	0.093 in	0.09375 in	0.093 in	2.4 mm	Rubber	9.53 mm	0.375 in	0.375 "	Snap Lock			0.942 in	23.93 mm
