333-41 Series

Catalog

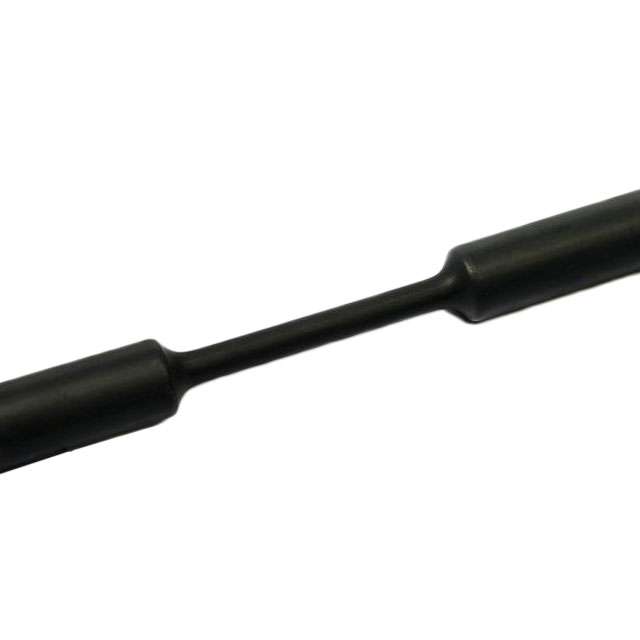

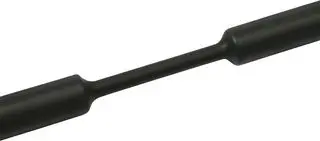

HEAT SHRINK TUBING, TFN31, PACK OF 5 4' STICKS, 3:1, 1 ", 25.4 MM, BLACK, 4 FT, 1.22 M

Part	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Shrink Temperature	Material	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Features	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Length	Length	Inner Diameter - Recovered	Inner Diameter - Recovered
HELLERMANNTYTON 333-41514	-55 C	135 °C	8 mm	0.315 in	4 ft	1.22 m	100 °C	Polyolefin (PO) Irradiated	Tubing Flexible	25.4 mm	1 in	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	3 to 1	1.19 mm	0.047 in
HELLERMANNTYTON 333-41509	-55 C	135 °C	1.52 mm	0.06 in	4 ft	1.22 m	100 °C	Polyolefin (PO) Irradiated	Tubing Flexible	4.8 mm	0.189 in	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	3 to 1	0.64 mm	0.025 in
HELLERMANNTYTON 333-41502	-55 C	135 °C	2.99 mm	0.118 in			100 °C	Polyolefin (PO) Irradiated	Tubing Flexible	9.5 mm	0.374 "	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	3 to 1	0.74 mm	0.029 in	152.4 m	500 ft
HELLERMANNTYTON 333-41501	-55 C	135 °C	2.01 mm	0.079 in			100 °C	Polyolefin (PO) Irradiated	Tubing Flexible	6.4 mm	0.252 in	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	3 to 1	0.66 mm	0.026 in	304.8 m	1000 ft
HELLERMANNTYTON 333-41508	-55 C	135 °C			4 ft	1.22 m	100 °C	Polyolefin (PO) Irradiated	Tubing Flexible	3.18 mm	0.125 in	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	3 to 1	0.56 mm	0.022 in			0.039 in	0.99 mm
HELLERMANNTYTON 333-41512	-55 C	135 °C	3.99 mm	0.157 "	4 ft	1.22 m	100 °C	Polyolefin (PO) Irradiated	Tubing Flexible	12.7 mm	0.5 "	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	3 to 1	0.79 mm	0.031 in
HELLERMANNTYTON 333-41513	-55 C	135 °C	5.99 mm	0.236 in	4 ft	1.22 m	100 °C	Polyolefin (PO) Irradiated	Tubing Flexible			Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	3 to 1	0.89 mm	0.035 in
HELLERMANNTYTON 333-41506	-55 C	135 °C	13 mm	0.512 in	100 ft	30.5 m	100 °C	Polyolefin (PO) Irradiated	Tubing Flexible			Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	3 to 1	1.24 mm	0.049 in
HELLERMANNTYTON 333-41507	-55 C	135 °C	0.51 mm	0.02 in	4 ft	1.22 m	100 °C	Polyolefin (PO) Irradiated	Tubing Flexible	1.6 mm	0.063 in	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	3 to 1	0.46 mm	0.018 "
HELLERMANNTYTON 333-41505	-55 C	135 °C	8 mm	0.315 in			100 °C	Polyolefin (PO) Irradiated	Tubing Flexible	25.4 mm	1 in	Black	Abrasion Resistant Fuel Resistant Heat Resistant Oil Resistant Solvent Resistant	3 to 1	1.19 mm	0.047 in	61 m	200 ft
