Rm0 Series Series

Isolated DC/DC Converters - Through Hole 0.25W DC/DC 1kV UNREG 24Vin 3.3Vout Subminiature Rotary Switches

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Isolated DC/DC Converters - Through Hole 0.25W DC/DC 1kV UNREG 24Vin 3.3Vout Subminiature Rotary Switches

Part	Actuator Length	Angle of Throw	Contact Finish	Termination Style	Circuit per Deck	Contact Timing	Mounting Type	Index Stops	Voltage Rating - DC	Number of Decks [custom]	Current Rating (Amps)	Actuator Type	Number of Poles per Deck	Contact Material	Depth Behind Panel	Actuator Type [diameter]	Actuator Length [x]	Number of Positions

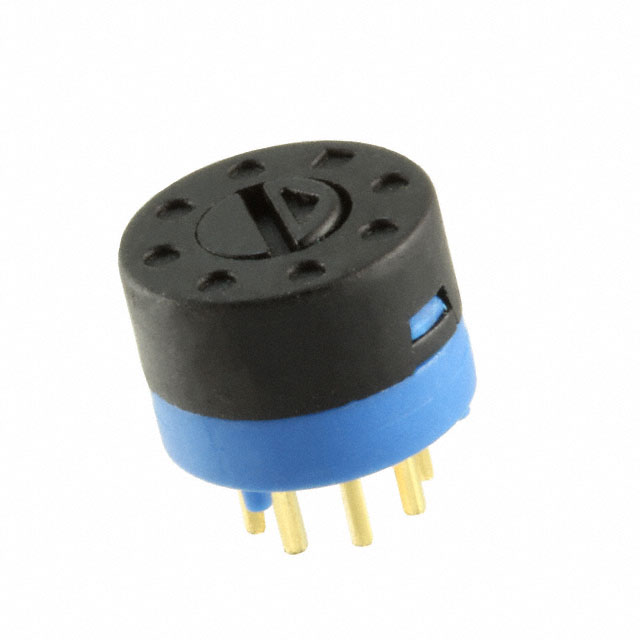

Littelfuse/Commercial Vehicle Products RM105002BCB	Flush	45 °	Gold	PC Pin	SP5T	Non-Shorting	Through Hole	Fixed	24 V	1	500 mA	Screwdriver Slot	1	Brass	7.37 mm
Littelfuse/Commercial Vehicle Products RM104772BCB		45 °	Gold	PC Pin	SP4T	Non-Shorting	Through Hole	Fixed	24 V	1	500 mA	Flatted Slotted	1	Brass	7.37 mm	4.2 mm	7.7 mm	4

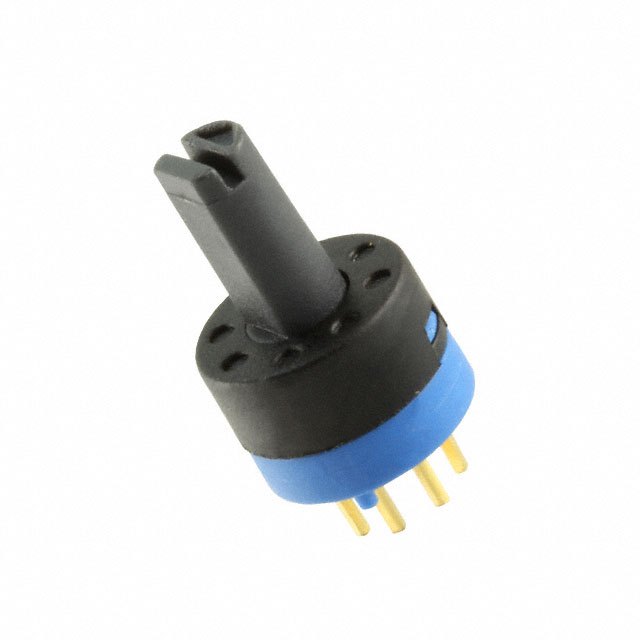

Littelfuse/Commercial Vehicle Products RM100772BCB		45 °	Gold	PC Pin	SP7T	Non-Shorting	Through Hole	Continuous	24 V	1	500 mA	Flatted Slotted	1	Brass	7.37 mm	4.2 mm	7.7 mm	7
Littelfuse/Commercial Vehicle Products RM106002BCB	Flush	45 °	Gold	PC Pin	SP6T	Non-Shorting	Through Hole	Fixed	24 V	1	500 mA	Screwdriver Slot	1	Brass	7.37 mm			6
Littelfuse/Commercial Vehicle Products RM101002BCB	Flush	45 °	Gold	PC Pin	SPST	Non-Shorting	Through Hole	Fixed	24 V	1	500 mA	Screwdriver Slot	1	Brass	7.37 mm			2

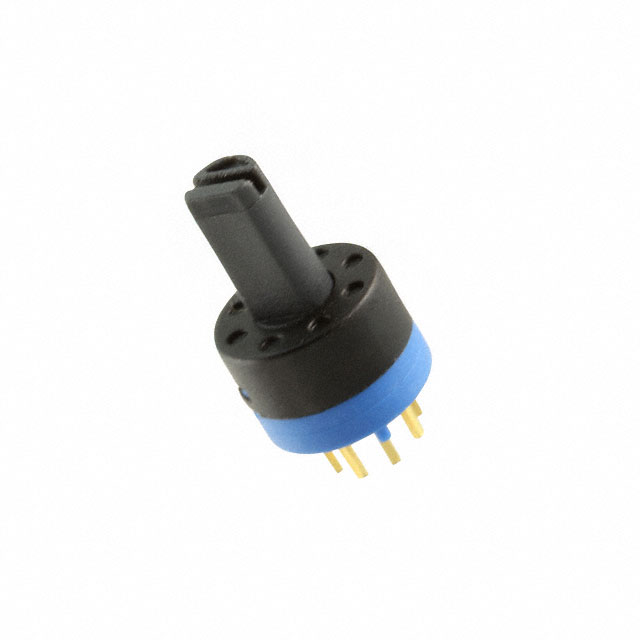

Littelfuse/Commercial Vehicle Products RM105772BCB		45 °	Gold	PC Pin	SP5T	Non-Shorting	Through Hole	Fixed	24 V	1	500 mA	Flatted Slotted	1	Brass	7.37 mm	4.2 mm	7.7 mm
Littelfuse/Commercial Vehicle Products RM106772BCB		45 °	Gold	PC Pin	SP6T	Non-Shorting	Through Hole	Fixed	24 V	1	500 mA	Flatted Slotted	1	Brass	7.37 mm	4.2 mm	7.7 mm	6

Catalog

Isolated DC/DC Converters - Through Hole 0.25W DC/DC 1kV UNREG 24Vin 3.3Vout Subminiature Rotary Switches

Key Features

• Subminiature design saves space

• Screwdriver slot or extended shaft

• Positive detent

Description

The RM series from C&K are rotary switches with a subminiature design to save space, a screwdriver slot or extended shaft and positive detent. The RM series are most commonly used in audio & visual equipment, consumer electronics and telecom equipment by designers looking for a combination of quality and performance.
