AR Series

Manufacturer: YAGEO

Catalog

THICK FILM RESISTORS - SMD 68 OHMS 62.5 MW 0402 5% AEC-Q200

Part	Package / Case	Supplier Device Package	Composition	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Terminations [custom]	Tolerance	Features	Resistance	Temperature Coefficient	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Size / Dimension [y]	Package / Case
YAGEO AR0402FR-07402KL	0402 (1005 Metric)	0402	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	2	1 %	Moisture Resistant	402 kOhms	100 ppm/°C	0.063 W	0.0625 W	155 C	-55 C

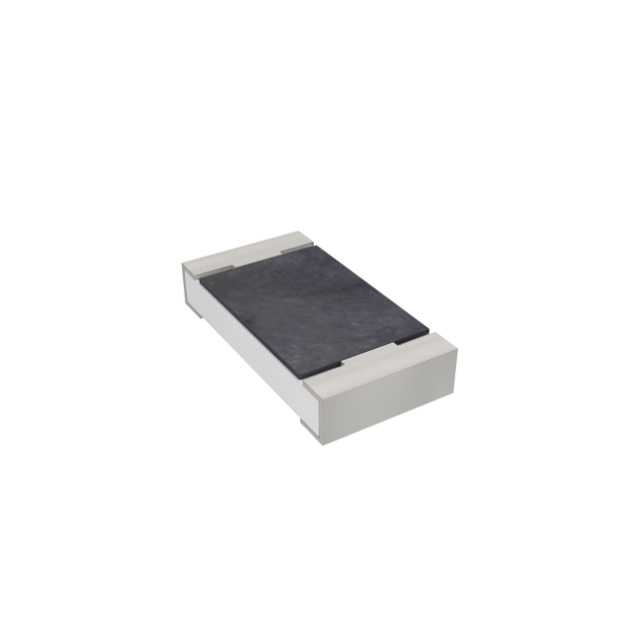

YAGEO AR1206FR-07820RL	1206 (3216 Metric)	1206	Thick Film	0.026 in		0.063 "	1.6 mm	0.122 "	3.1 mm	2	1 %	Moisture Resistant	820 Ohms	100 ppm/°C	0.25 W	0.25 W	155 C	-55 C	0.65 mm
YAGEO AR1206JR-07180KL	1206 (3216 Metric)	1206	Thick Film	0.026 in		0.063 "	1.6 mm	0.122 "	3.1 mm	2	5 %	Moisture Resistant	180 kOhms	100 ppm/°C	0.25 W	0.25 W	155 C	-55 C	0.65 mm
YAGEO AR0402FR-0775KL	0402 (1005 Metric)	0402	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	2	1 %	Moisture Resistant	75 kOhms	100 ppm/°C	0.063 W	0.0625 W	155 C	-55 C
YAGEO AR0402JR-075K1L	0402 (1005 Metric)	0402	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	2	5 %	Moisture Resistant	5.1 kOhms	100 ppm/°C	0.063 W	0.0625 W	155 C	-55 C
YAGEO AR0402FR-0710KL	0402 (1005 Metric)	0402	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm	2	1 %	Moisture Resistant	10000 Ohms	100 ppm/°C	0.063 W	0.0625 W	155 C	-55 C
YAGEO AR1206FR-0722KL	1206 (3216 Metric)	1206	Thick Film	0.026 in		0.063 "	1.6 mm	0.122 "	3.1 mm	2	1 %	Moisture Resistant	22 kOhms	100 ppm/°C	0.25 W	0.25 W	155 C	-55 C	0.65 mm
YAGEO AR1206FR-073K24L	1206 (3216 Metric)	1206	Thick Film	0.026 in		0.063 "	1.6 mm	0.122 "	3.1 mm	2	1 %	Moisture Resistant	3.24 kOhms	100 ppm/°C	0.25 W	0.25 W	155 C	-55 C	0.65 mm
YAGEO AR0805JR-07360KL	0805	0805	Thick Film	0.024 in		0.049 "	1.25 mm	0.079 in	2 mm	2	5 %	Moisture Resistant	360 kOhms	100 ppm/°C	0.125 W	0.125 W	155 C	-55 C	0.6 mm
YAGEO AR0603FR-07392RL	0603		Thick Film	0.022 in		0.031 in		0.063 "	1.6 mm	2	1 %	Moisture Resistant	392 Ohms	100 ppm/°C	0.1 W	0.1 W	155 C	-55 C	0.55 mm	0.8 mm	1608 Metric
