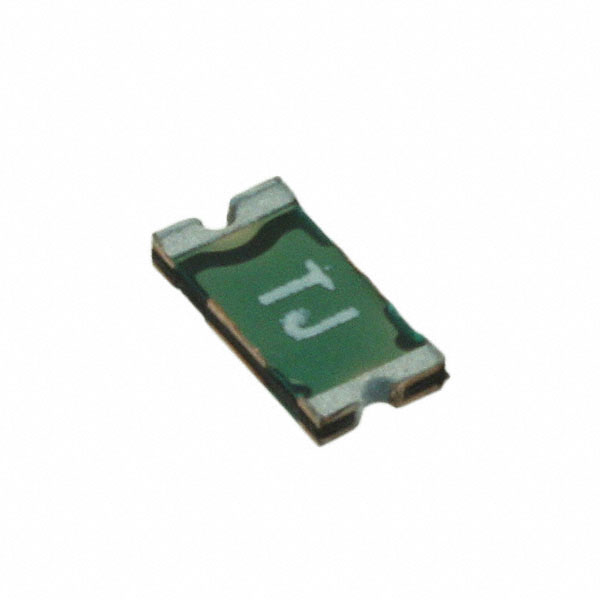

PTS1206 Series
Resettable Fuses - PPTC PPTC 1206 30V 0.16A SMD
Manufacturer: Eaton - Electronics Division
Catalog
Resettable Fuses - PPTC PPTC 1206 30V 0.16A SMD
Beta
⌘K
Resettable Fuses - PPTC PPTC 1206 30V 0.16A SMD
Resettable Fuses - PPTC PPTC 1206 30V 0.16A SMD
Resettable Fuses - PPTC PPTC 1206 30V 0.16A SMD
| Part | Approval Agency | Resistance - Post Trip (R1) (Max) [Max] | Thickness (Max) | Thickness (Max) [Max] | Voltage - Max [Max] | Package / Case | Mounting Type | Current - Max [Max] | Resistance - Initial (Ri) (Min) [Min] | Current - Hold (Ih) (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Time to Trip | Current - Trip (It) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | cURus TUV | 4.5 Ohms | 0.68 mm | 0.027 " | 30 V | 1206 (3216 Metric) Concave | Surface Mount | 100 A | 1.1 Ohms | 160 mA | 3.25 mm | 0.065 in | 0.128 in | 1.65 mm | Polymeric | 85 °C | -40 C | 0.3 s | 370 mA |
