Pts5250 Series Series

Microminiature Tact Switch for SMT

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Microminiature Tact Switch for SMT

Part	Outline [x]	Outline [y]	Termination Style	Mechanical Life	Actuator Type	Contact Rating @ Voltage	Actuator Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Illumination	Circuit	Switch Function	Actuator Height off PCB, Vertical	Contact Rating @ Voltage [x]	Operating Force	Switch Travel	Actuator Material	Actuator Height off PCB, Vertical [z]	Switch Travel [custom]

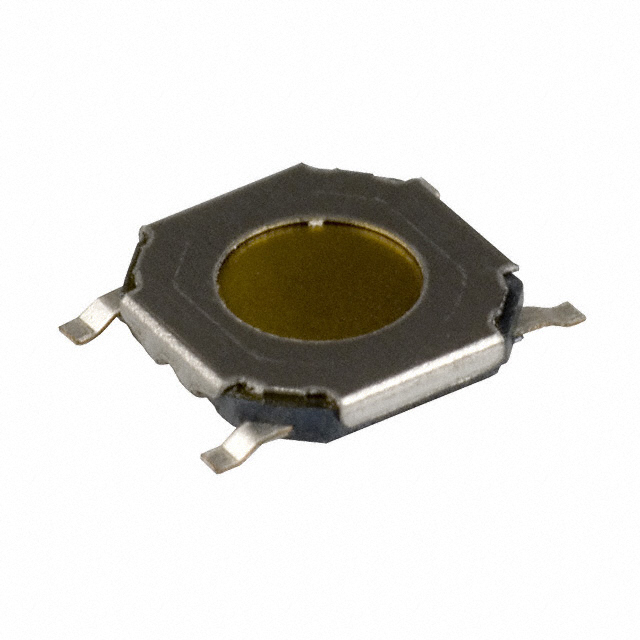

Littelfuse/Commercial Vehicle Products PTS525SM08SMTR	5.25 mm	5.25 mm	Gull Wing	100000 Cycles	Standard	0.05 A 12 VDC	Top Actuated	-40 °C	60 °C	Surface Mount	Non-Illuminated	SPST-NO	Off-Mom	0.8 mm
Littelfuse/Commercial Vehicle Products PTS525SK08SMTR LFS								-20 C	70 °C		Non-Illuminated	SPST-NO	Off-Mom		0.02 A 15 VDC
Littelfuse/Commercial Vehicle Products PTS525SK08SMTR	5.25 mm	5.25 mm	Gull Wing	100000 Cycles	Standard	0.05 A 12 VDC	Top Actuated	-40 °C	60 °C	Surface Mount	Non-Illuminated	SPST-NO	Off-Mom	0.8 mm		260 gf
Littelfuse/Commercial Vehicle Products PTS525SK15SMTR2LFS	5.25 mm	5.25 mm	Gull Wing	200000 Cycles	Standard		Top Actuated	-20 C	70 °C	Surface Mount	Non-Illuminated	SPST-NO	Off-Mom		0.02 A 15 VDC	260 gf	0.25 mm	Nylon 6/6 Polyamide (PA66)	1.5 mm
Littelfuse/Commercial Vehicle Products PTS525SK10SM	5.25 mm	5.25 mm	Gull Wing	100000 Cycles	Standard	0.05 A 12 VDC	Top Actuated	-40 °C	60 °C	Surface Mount	Non-Illuminated	SPST-NO	Off-Mom			260 gf			1.5 mm
Littelfuse/Commercial Vehicle Products PTS525SM08	5.25 mm	5.25 mm	Gull Wing	100000 Cycles	Flush	0.05 A 12 VDC	Top Actuated	-40 °C	60 °C	Surface Mount	Non-Illuminated	SPST-NO	Off-Mom	0.8 mm				Nylon 6/6 Polyamide (PA66)		0.3 mm
Littelfuse/Commercial Vehicle Products PTS525SM08SMTR LFS	5.25 mm	5.25 mm	Gull Wing	100000 Cycles	Flush	0.05 A 12 VDC	Top Actuated	-40 °C	60 °C	Surface Mount	Non-Illuminated	SPST-NO	Off-Mom	0.8 mm				Nylon 6/6 Polyamide (PA66)		0.3 mm
Littelfuse/Commercial Vehicle Products PTS525SK10SMTRLFS	5.25 mm	5.25 mm	Gull Wing	100000 Cycles	Standard	0.05 A 12 VDC	Top Actuated	-40 °C	60 °C	Surface Mount	Non-Illuminated	SPST-NO	Off-Mom			260 gf		Nylon 6/6 Polyamide (PA66)	1.5 mm	0.3 mm

Catalog

Microminiature Tact Switch for SMT

Key Features

• Ruggedized package in a compact size

• 0.8 & 1.5 mm actuator height

• High number of cycles

Description

The PTS525 series of microminiature tact switches for SMT from C&K are available in a ruggedized package, in a compact size, with either a 0.8mm or a 1.5mm actuator height. Often found designed into remote controls, instrumentation and various other consumer products, PTS525 switches can withstand harsh environments to keep working for a high number of cycles.
