AEA Series

AC/DC PS \ SERIES AEA

Manufacturer: Cosel USA, Inc.

Catalog

AC/DC PS \ SERIES AEA

Catalog

AC/DC PS \ SERIES AEA

Part	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Applications	Voltage - Output 1	Power (Watts)	Mounting Type	Features	Voltage - Isolation	Type	Number of Outputs	Current - Output 1	Approval Agency	Efficiency	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Standard Number	Operating Temperature (Max)	Operating Temperature (Min)
Cosel USA, Inc. AEA1000F-48-R3	85 VAC	264 V	ITE (Commercial) Medical	48 V	720 W 1008 W	Chassis Mount	Adjustable Output Universal Input	4000 Vpk	Open Frame	1	21 A	CE cURus DEMKO TUV UKCA	95 %	5 in	2.26 in	9 in	60601-1 62368-1	70 °C	-20 °C
Cosel USA, Inc. AEA800F-48-R3	85 VAC	264 V	ITE (Commercial) Medical	48 V	610 W 816 W	Chassis Mount	Adjustable Output Universal Input	4000 Vpk	Open Frame	1	17 A	CE cURus DEMKO TUV UKCA	95.5 %	5 in	2.26 in	8 in	60601-1 62368-1	70 °C	-20 °C

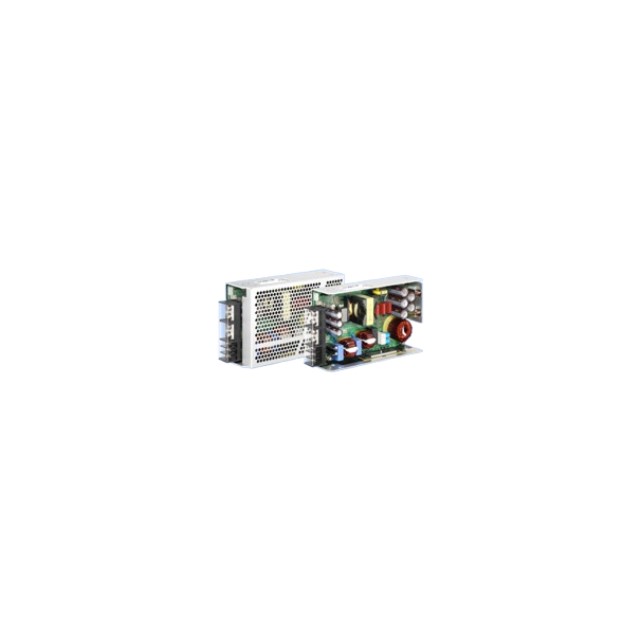

Cosel USA, Inc. AEA800F-48	85 VAC	264 V	ITE (Commercial) Medical	48 V	566 W 816 W	Chassis Mount	Adjustable Output PFC Universal Input	4000 Vpk	Enclosed	1	17 A	CE cURus DEMKO TUV UKCA	95.5 %	5 in	2.26 in	8 in	60601-1 62368-1	70 °C	-20 °C
Cosel USA, Inc. AEA1000F-36-C	85 VAC	264 V	ITE (Commercial) Medical	36 V	756 W 1008 W	Chassis Mount	Adjustable Output Universal Input	4000 Vpk	Conformal Coated Open Frame	1	28 A	CE cURus DEMKO TUV UKCA	95 %	5 in	2.26 in	9 in	60601-1 62368-1	70 °C	-20 °C
Cosel USA, Inc. AEA800F-36-T	85 VAC	264 V	ITE (Commercial) Medical	36 V	612 W 817 W	Chassis Mount	Adjustable Output Universal Input	4000 Vpk	Open Frame	1	22.7 A	CE cURus DEMKO TUV UKCA	95.5 %	5 in	2.26 in	8 in	60601-1 62368-1	70 °C	-20 °C

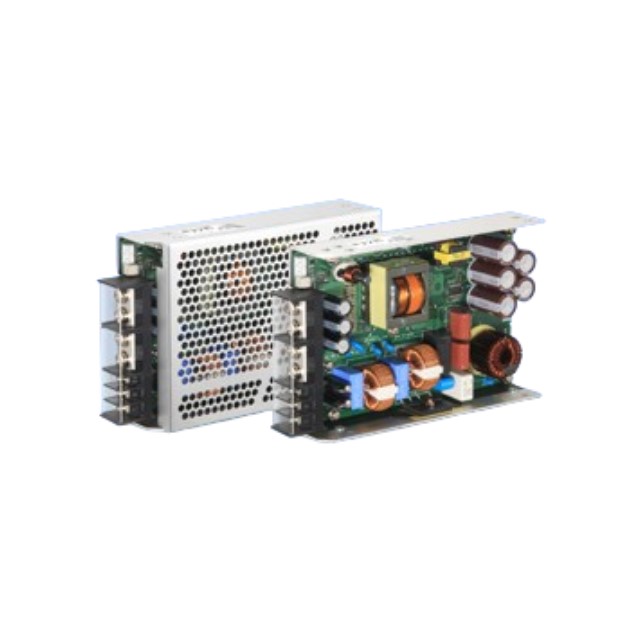

Cosel USA, Inc. AEA600F-24-R3	85 VAC	264 V	ITE (Commercial) Medical	24 V	480 W 600 W	Chassis Mount	Adjustable Output Universal Input	4000 Vpk	Open Frame	1	25 A	CE cURus DEMKO TUV UKCA	94.5 %	5 in	1.91 in	7.32 in	60601-1 62368-1	70 °C	-20 °C
