7009-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SSMC M STR BHD
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Body Finish | Dielectric Material | Voltage Rating | Housing Color | Impedance | Fastening Type | Center Contact Material | Frequency - Max [Max] | Connector Style | Number of Ports | Contact Termination | Mounting Type | Shield Termination | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

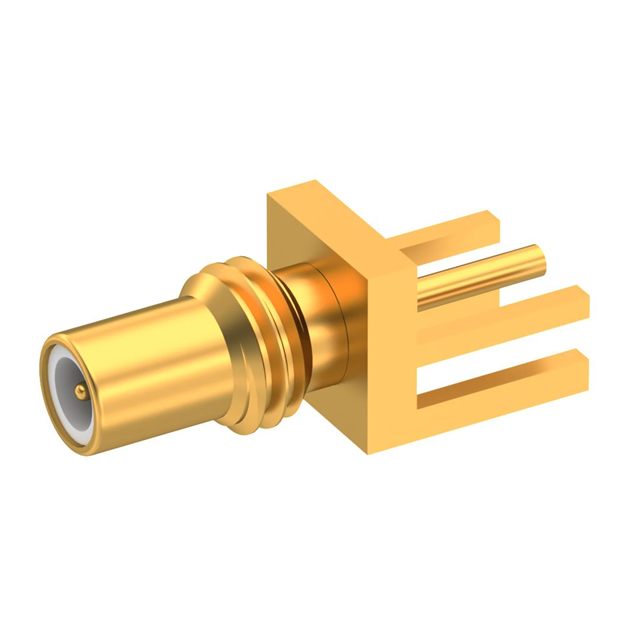

 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | Gold | Brass | Gold | Polytetrafluoroethylene (PTFE) | 250 V | Gold | 50 Ohms | Threaded | Beryllium Copper | 12.4 GHz | SSMC | 1 | Solder | Through Hole | Solder | Jack Male Pin |

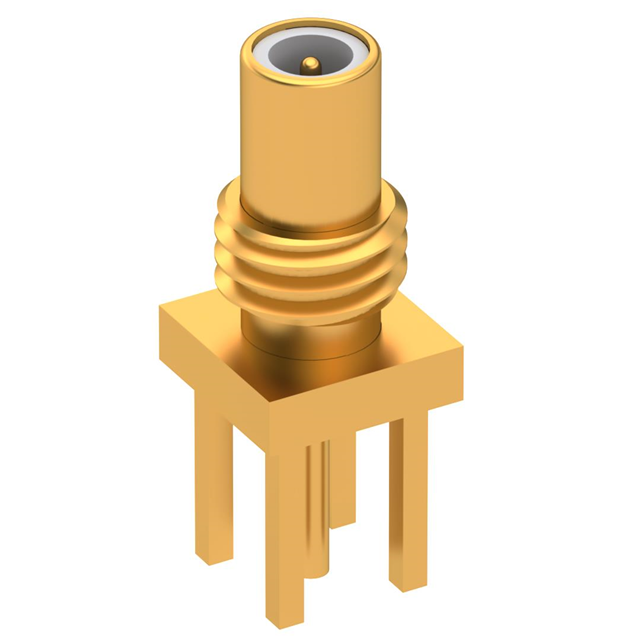

 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | Gold | Brass | Gold | Polytetrafluoroethylene (PTFE) | 250 V | Gold | 50 Ohms | Threaded | Beryllium Copper | 12.4 GHz | SSMC | 1 | Solder | Through Hole | Solder | Jack Male Pin |

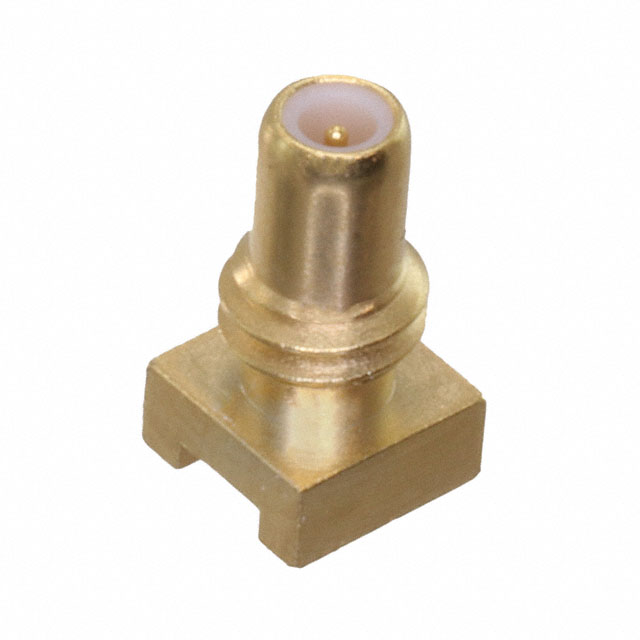

 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | Gold | Brass | Gold | Polytetrafluoroethylene (PTFE) | 250 V | Gold | 50 Ohms | Threaded | Beryllium Copper | 12.4 GHz | SSMC | 1 | Solder | Surface Mount | Solder | Jack Male Pin |
