TRH50A480 Series

Catalog

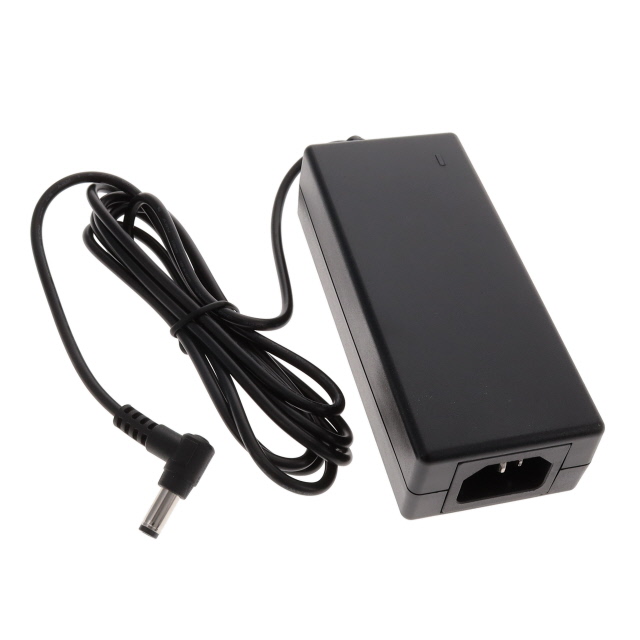

AC/DC DESKTOP ADAPTER 48V 50W

Part	Weight [custom]	Weight [custom]	Polarization	No Load Power Consumption	Input Connector	Cord Length	Cord Length	Current - Output (Max) [Max]	Voltage - Output	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Form	Region Utilized	Input Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [z]	Applications	Standard Number
Cincon Electronics Co. LTD TRH50A480-11E01 VI	0.662 lb	300.28 g	Positive Center	150 mW	IEC 320-C14	720 mm	28.35 in	1.05 A	48 V	2.05 in	120 mm	1.22 in	52 mm	31 mm	4.72 "	CoC Tier 2 Level VI	Desktop (Class I)	International	Cord (Sold Separately)	CE cULus FCC GS NEMKO PSE TUV	-20 ░C	70 °C	264 VAC	90 VAC	50 W	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	ITE (Commercial)
Cincon Electronics Co. LTD TRH50A480-01E03 VI			Positive Center	150 mW	IEC 320-C14	1.8 m	70.9 "	1.05 A	48 V	2.05 in	120 mm	1.22 in	52 mm	31 mm	4.72 "	CoC Tier 2 Level VI	Desktop (Class I)	International	Cord (Sold Separately)	CE cULus FCC GS PSE TUV	-20 ░C	70 °C	264 VAC	90 VAC	50 W	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	ITE (Commercial)	60950-1 62368-1
