253I Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 5.62"L X 3.25"W

Part	Area (L x W) [custom]	Area (L x W) [custom]	Material Flammability Rating	Material	Area (L x W)	Area (L x W)	Thickness	Thickness	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Height [z]	Height [z]	Features	Features	Design	Ratings

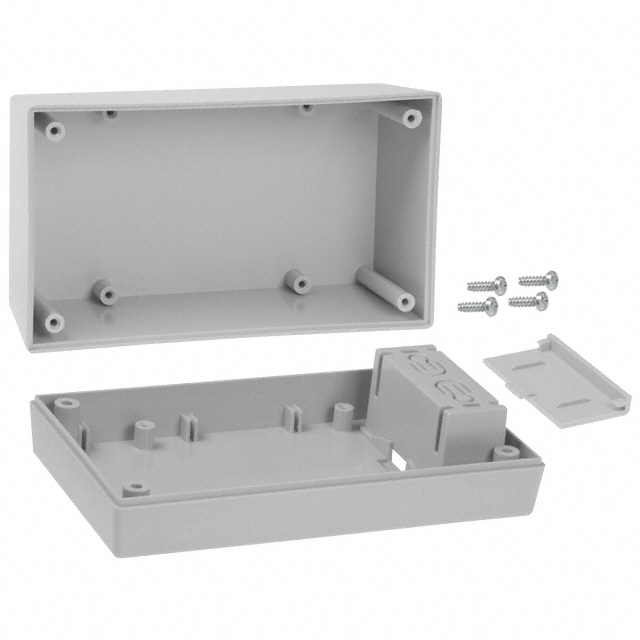

Serpac 253I,GY	118 cm˛	18.3 in˛	UL94 HB	ABS Plastic	18.3 in²	118 cm²	2.54 mm	0.1 in	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	Gray	2.5 in	63.5 mm	Battery Compartment PCB Supports	9 V	Hand Held Split Sides	IP40 NEMA 1

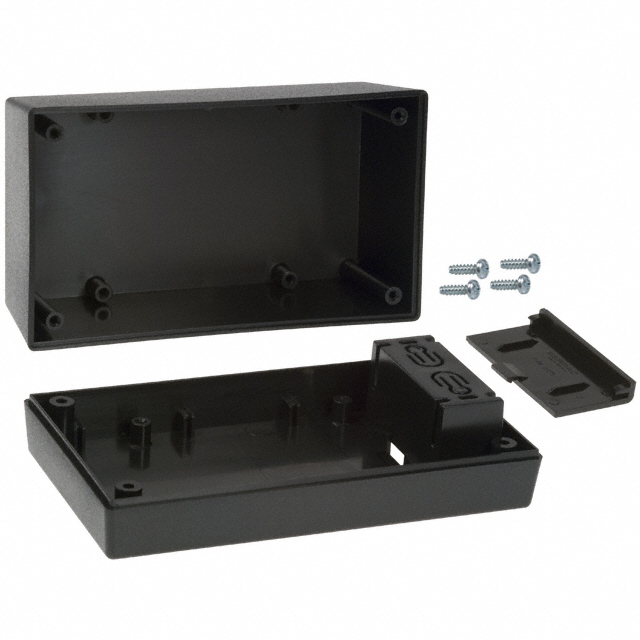

Serpac 253I,BK			UL94 HB	ABS Plastic	18.3 in²	118 cm²	2.54 mm	0.1 in	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	Black	2.5 in	63.5 mm	Battery Compartment PCB Supports	9 V	Hand Held Split Sides	IP40 NEMA 1

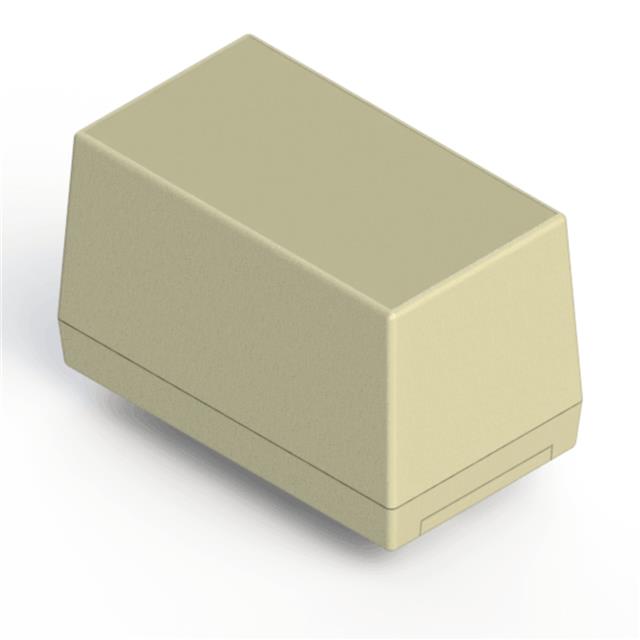

Serpac 253I,AL			UL94 HB	ABS Plastic	18.3 in²	118 cm²	2.54 mm	0.1 in	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	Almond	2.5 in	63.5 mm	Battery Compartment PCB Supports	9 V	Hand Held Split Sides	IP40 NEMA 1
