6200FH Series
Manufacturer: Belden Inc.
Beta
⌘K

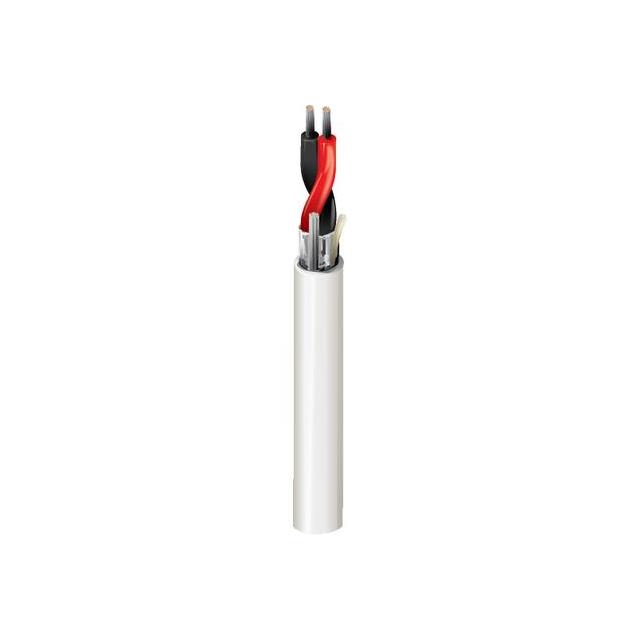

CABLE 2COND 16AWG NAT SHLD
| Part | Shield Coverage | Shield Material | Conductor Insulation | Usage | Number of Conductors | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Length | Length | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Voltage | Jacket Color | Wire Gauge | Shield Type | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Low Smoke Poly-Vinyl Chloride (LSPVC) | Security Sound | 2 | 0.381 mm | 0.015 in | 19 | 29 | Multi-Conductor | 152.4 m | 500 ft | UL Style CMP | 75 ░C | 0 °C | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 300 VDC | Natural | 16 AWG | Foil | Drain Wire Rip Cord | 4.78 mm | 0.188 " | Copper Tinned |
