AS4C512 Series

Catalog

IC DRAM 8GBIT PARALLEL 96FBGA

Part	Package / Case	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Write Cycle Time - Word, Page	Clock Frequency	Mounting Type	Memory Organization [custom]	Memory Organization [custom]	Memory Size	Memory Format	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Memory Interface	Memory Type	Access Time	Supplier Device Package [y]	Supplier Device Package [x]	Memory Organization	Memory Organization [custom]

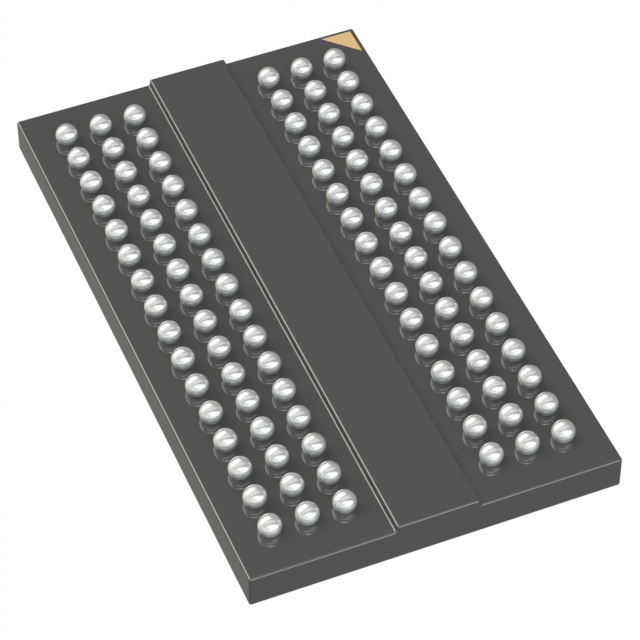

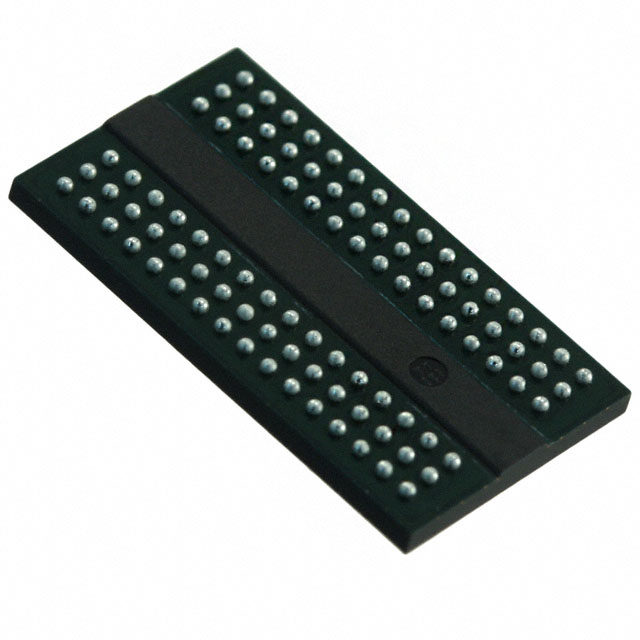

Alliance Memory, Inc. AS4C512M16D3LB-12BINTR	96-TFBGA	SDRAM - DDR3L	-40 °C	95 °C	15 ns	800 MHz	Surface Mount	512 M	16	1024 KB	DRAM	1.283 V	1.45 V	96-FBGA (13.5x9)	Parallel	Volatile	20 ns
Alliance Memory, Inc. AS4C512M16D3LA-10BAN	96-TFBGA	SDRAM - DDR3L	-40 °C	105 °C	15 ns	933 MHz	Surface Mount	512 M	16	1024 KB	DRAM	1.275 V	1.425 V	96-FBGA (13.5x9)	Parallel	Volatile	20 ns

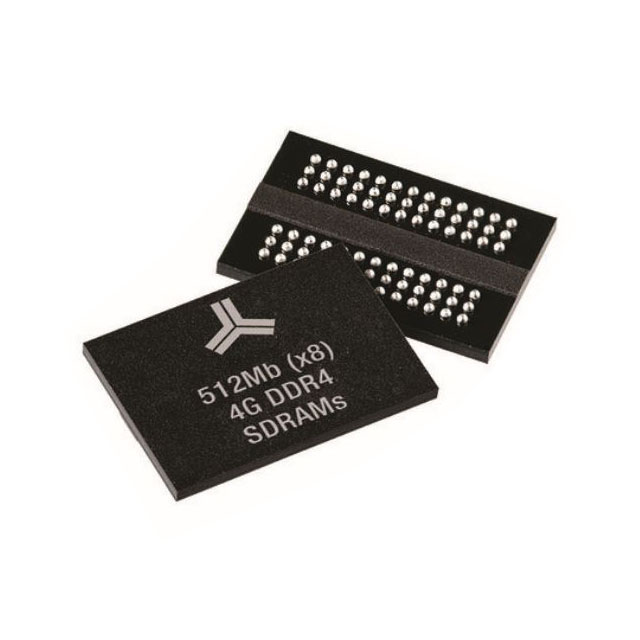

Alliance Memory, Inc. AS4C512M8D4-75BINTR	78-TFBGA	SDRAM - DDR4	-40 °C	95 °C	15 ns	1.333 GHz	Surface Mount			512 kB	DRAM			78-FBGA	POD	Volatile	18 ns	10.6	7.5	512 M
Alliance Memory, Inc. AS4C512M16D3LC-10BINTR	96-TFBGA	SDRAM - DDR3L	-40 °C	95 °C	15 ns	933 MHz	Surface Mount	512 M	16	1024 KB	DRAM	1.283 V	1.45 V	96-FBGA (9x13)	Parallel	Volatile	20 ns
Alliance Memory, Inc. AS4C512M16D4-75BCN	96-TFBGA	SDRAM - DDR4	0 °C	95 °C	15 ns	1.333 GHz	Surface Mount	512 M	16	1024 KB	DRAM			96-FBGA (7.5x13)	Parallel	Volatile	18 ns

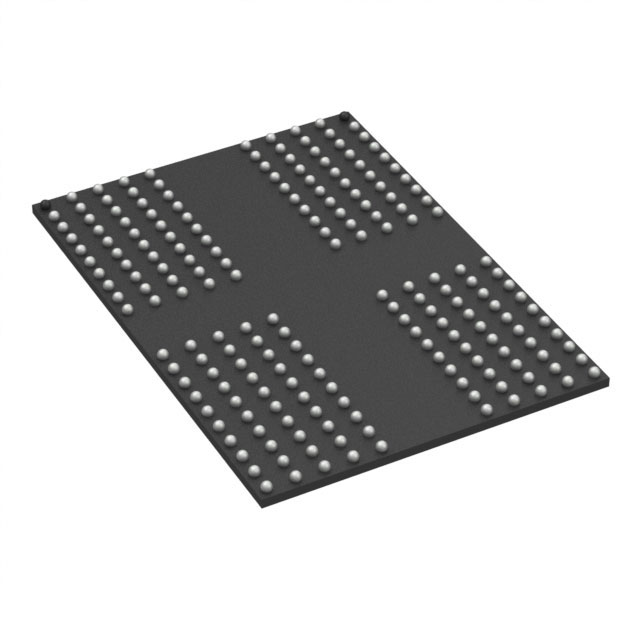

Alliance Memory, Inc. AS4C512M32MD4V-046BIN	200-VFBGA	SDRAM - Mobile LPDDR4X	-40 °C	95 °C	18 ns	4.266 GHz	Surface Mount		32		DRAM	1.06 V 1.7 V	1.17 V 1.95 V	200-FBGA (10x15)	LVSTLE_06	Volatile	3.5 ns				512 M
Alliance Memory, Inc. AS4C512M16D3LA-10BCNTR	96-TFBGA	SDRAM - DDR3L	0 °C	95 °C	15 ns	933 MHz	Surface Mount	512 M	16	1024 KB	DRAM	1.283 V	1.45 V	96-FBGA (13.5x9)	Parallel	Volatile	20 ns
Alliance Memory, Inc. AS4C512M8D4A-75BCN	78-TFBGA	SDRAM - DDR4	0 °C	95 °C	15 ns	1.333 GHz	Surface Mount			512 kB	DRAM			78-FBGA	POD	Volatile	18 ns	11	7.5	512 M
Alliance Memory, Inc. AS4C512M8D4A-75BIN	78-TFBGA	SDRAM - DDR4	-40 °C	95 °C	15 ns	1.333 GHz	Surface Mount			512 kB	DRAM			78-FBGA	POD	Volatile	18 ns	11	7.5	512 M
Alliance Memory, Inc. AS4C512M8D4-83BCN	78-TFBGA	SDRAM - DDR4	0 °C	95 °C	15 ns	1.2 GHz	Surface Mount			512 kB	DRAM			78-FBGA	POD	Volatile	18 ns	10.6	7.5	512 M
