50.62 Series

Catalog

CABLE GLAND 9-13MM M20 S STEEL

Part	Color	Thread Length	Thread Length	Material	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Includes	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]

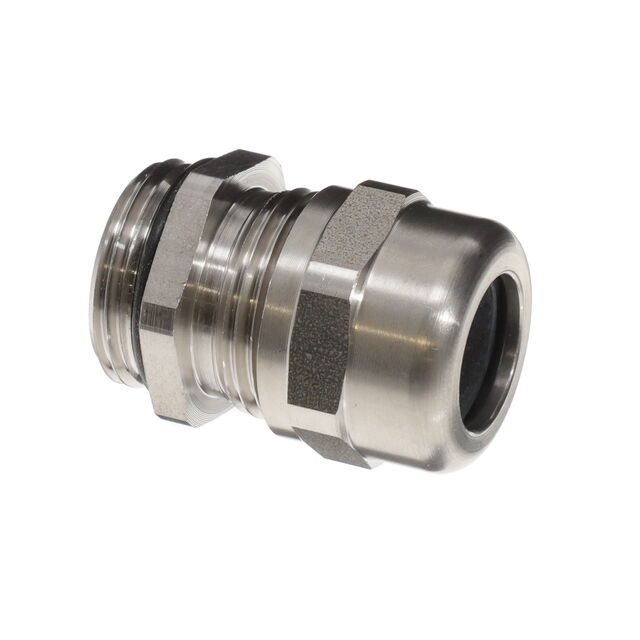

Jacob GmbH 50.620 ES	Silver	6 mm	0.236 in	Stainless Steel	-40 C	100 °C	M20x1.5	0.354 in	9 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	O-Ring Seal

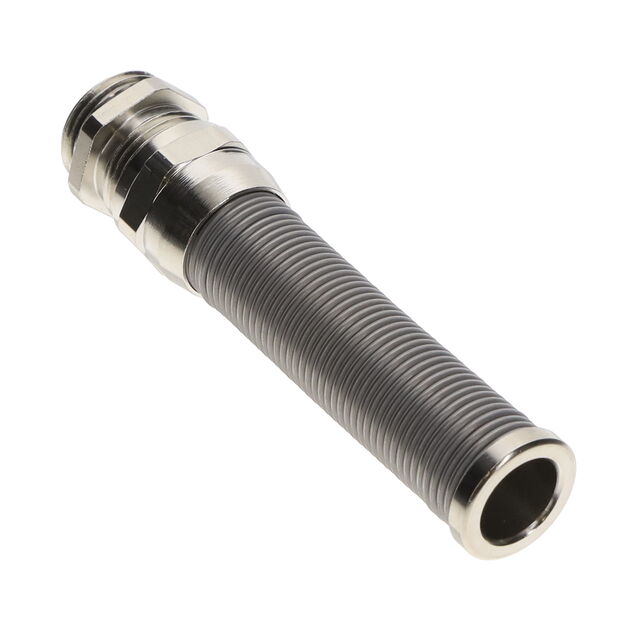

Jacob GmbH 50.620 M/BS	Silver	6 mm	0.236 in	Brass Nickel Plated	-20 ░C	100 °C	M20x1.5	0.354 in	9 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	O-Ring Seal Strain Relief

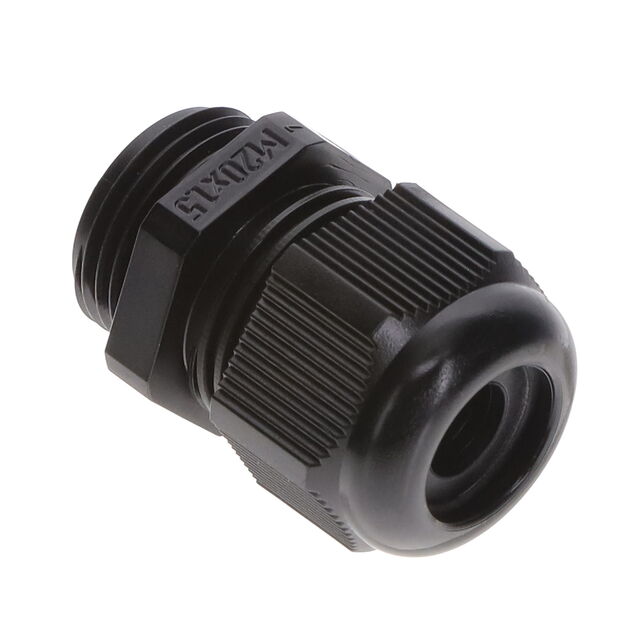

Jacob GmbH 50.620 PA/RSW	Black	8 mm	0.315 "		-40 C	100 °C	M20x1.5	0.197 in	5 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	Sealing Ring

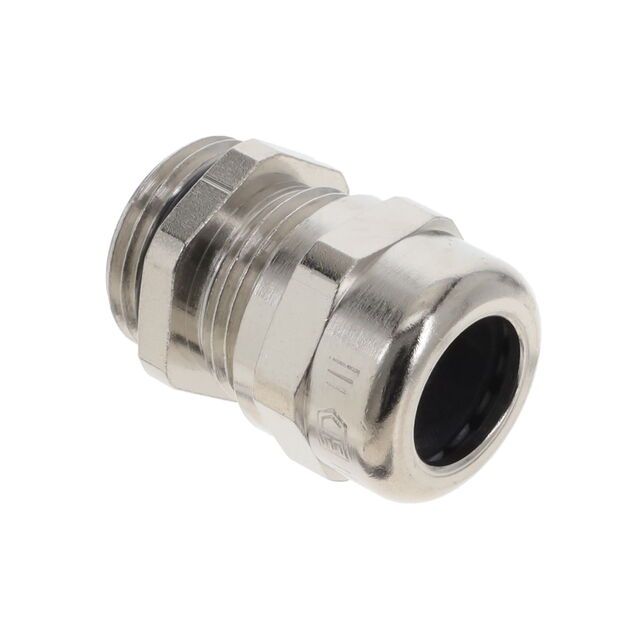

Jacob GmbH 50.620 M/EMVD	Silver	6 mm	0.236 in	Brass Nickel Plated	-40 C	100 °C	M20x1.5	0.354 in	9 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	O-Ring Seal

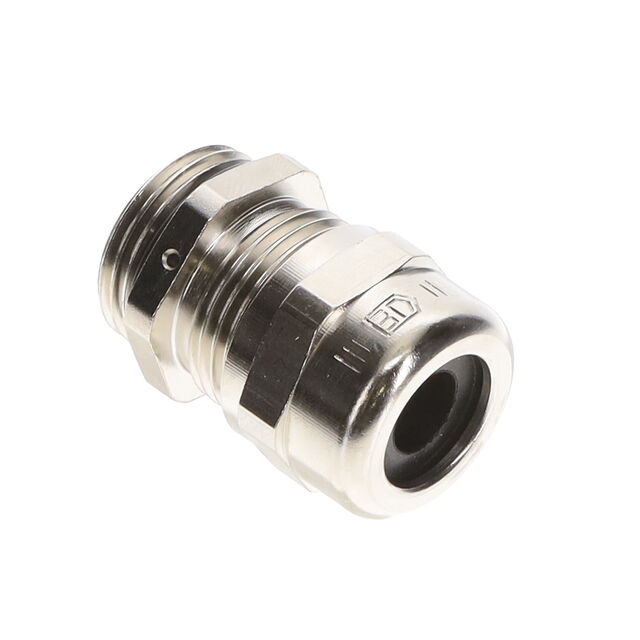

Jacob GmbH 50.620 M/R/AV	Silver	6 mm	0.236 in	Brass Nickel Plated	-20 ░C	100 °C	M20x1.5	0.197 in	5 mm	IP66 IP68	0.512 in	13 mm	Cable Gland	O-Ring Seal

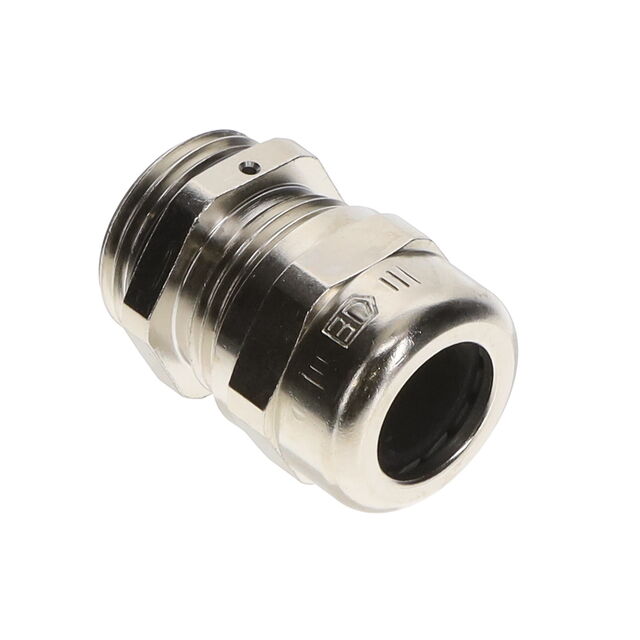

Jacob GmbH 50.620 M/AV	Silver	6 mm	0.236 in	Brass Nickel Plated	-20 ░C	100 °C	M20x1.5	0.354 in	9 mm	IP66 IP68	0.512 in	13 mm	Cable Gland	O-Ring Seal
Jacob GmbH 50.620 PA/FL	Gray	8 mm	0.315 "		-40 C	100 °C	M20x1.5			IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	Sealing Ring	0.315 in	8 mm

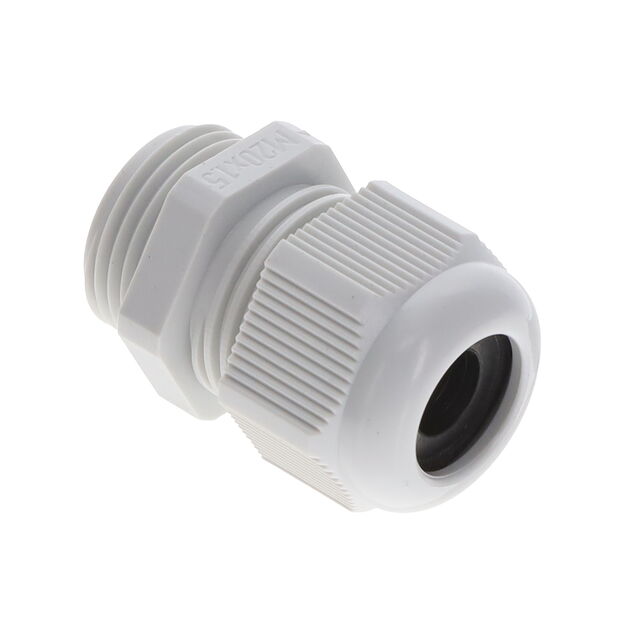

Jacob GmbH 50.620PA/R7035	Gray	8 mm	0.315 "		-40 C	100 °C	M20x1.5	0.197 in	5 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	Sealing Ring

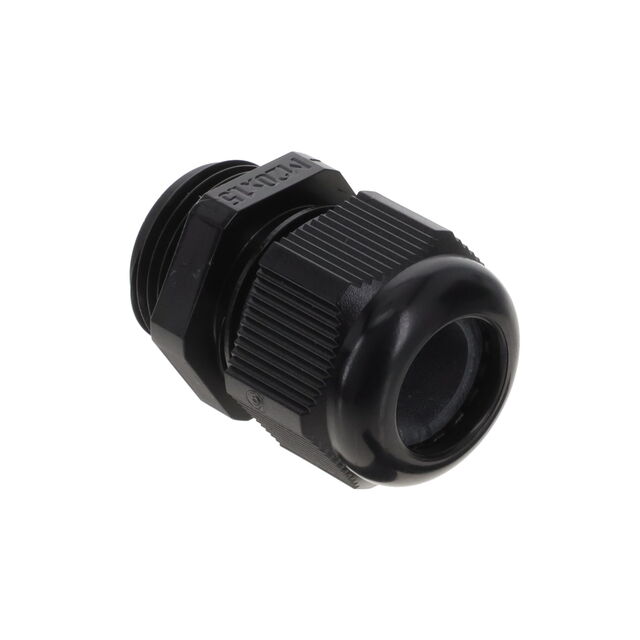

Jacob GmbH 50.620 PA/SW	Black	8 mm	0.315 "		-40 C	100 °C	M20x1.5			IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	Sealing Ring	0.315 in	8 mm

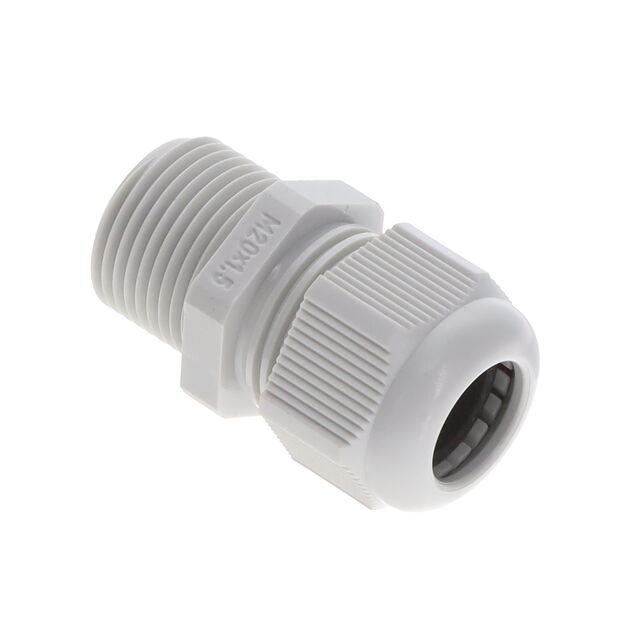

Jacob GmbH 50.620 PA7035L	Gray	15 mm	0.591 in		-40 C	100 °C	M20x1.5			IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	Sealing Ring	0.315 in	8 mm
