PPTC331 Series

Catalog

CONN HDR 33POS 0.1 TIN SMD

Part	Insulation Material	Contact Shape	Contact Material	Mounting Type	Number of Positions [custom]	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Material Flammability Rating	Number of Rows	Number of Positions Loaded	Contact Finish - Post	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Type	Voltage Rating	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post

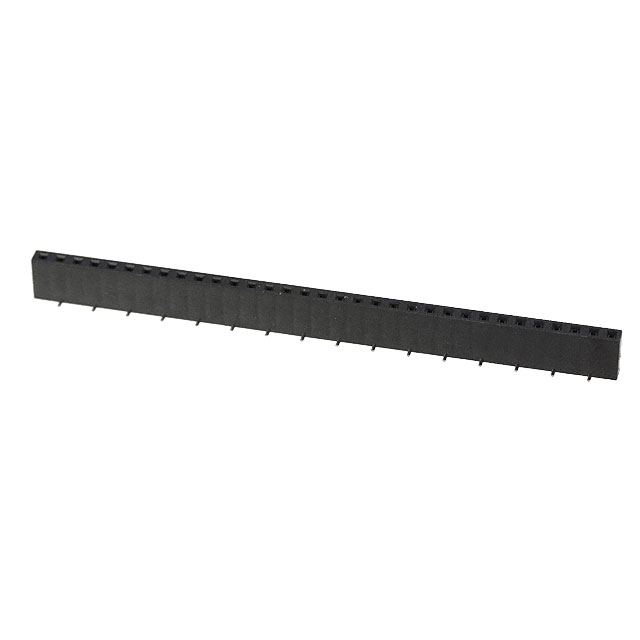

Sullins Connector Solutions PPTC331KFXC	Polyester	Square	Phosphor Bronze	Surface Mount	33	Black	-40 C	105 ░C	Header Top or Bottom Entry	Push-Pull	UL94 V-0	1	All	Tin	3 A	0.1 "	2.54 mm	0.28 in	7.1 mm	Female Socket	250 V	Solder

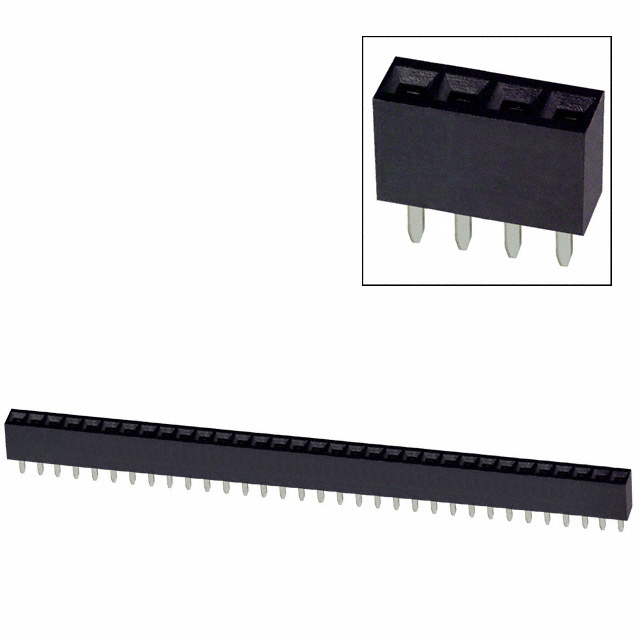

Sullins Connector Solutions PPTC331LFBN-RC	Polyester	Square	Phosphor Bronze	Through Hole	33	Black	-40 C	105 ░C	Header	Push-Pull	UL94 V-0	1	All	Tin	3 A	0.1 "	2.54 mm	0.335 "	8.51 mm	Female Socket	250 V	Solder	0.126 "	3.2 mm

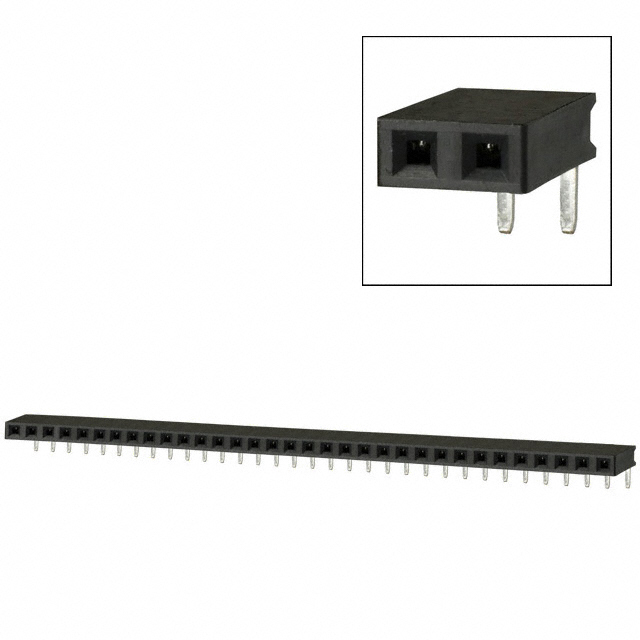

Sullins Connector Solutions PPTC331LGBN-RC	Polyester	Square	Phosphor Bronze	Right Angle Through Hole	33	Black	-40 C	105 ░C	Header	Push-Pull	UL94 V-0	1	All	Tin	3 A	0.1 "	2.54 mm	0.1 in	2.54 mm	Female Socket	250 V	Solder			0.124 in	3.15 mm
