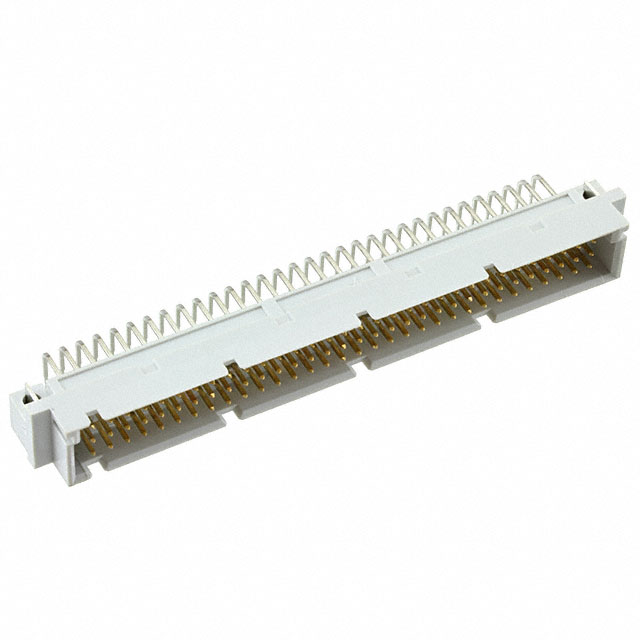

8609396711 Series

Catalog

CONN DIN HDR 96POS

Part	Material Flammability Rating	Number of Positions Loaded	Number of Positions	Number of Rows	Contact Finish	Termination	Mounting Type	Material - Insulation	Current Rating (Amps)	Pitch [x]	Pitch [x]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Level, Class	Style
Amphenol ICC (FCI) 86093967113765BALF	UL94 V-0	All	96	3	Gold	Solder	Through Hole Right Angle	Polyester Thermoplastic	1.5 A	2.54 mm	0.1 in	Header Male Pins	-55 °C	125 °C	1

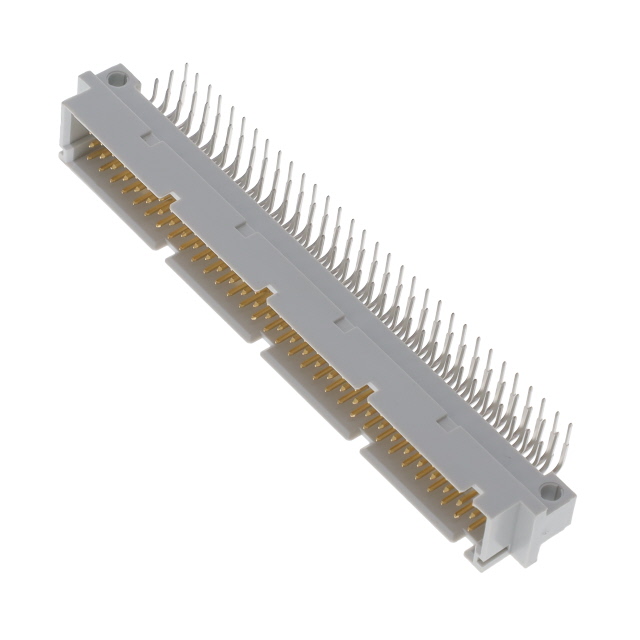

Amphenol ICC (FCI) 86093967113765E1LF	UL94 V-0	All	96	3	Gold	Solder	Through Hole Right Angle	Polyester Thermoplastic	1.5 A	2.54 mm	0.1 in	Header Male Pins	-55 °C	125 °C	1	C
Amphenol ICC (FCI) 86093967113H55000E	UL94 V-0	All	96	3	Gold	Solder	Through Hole Right Angle	Polyester Thermoplastic	1.5 A	2.54 mm	0.1 in	Header Male Pins	-55 °C	125 °C		C
Amphenol ICC (FCI) 86093967113H55E1LF	UL94 V-0	All	96	3	Gold	Solder	Through Hole Right Angle	Polyester Thermoplastic	1.5 A	2.54 mm	0.1 in	Header Male Pins	-55 °C	125 °C		C
Amphenol ICC (FCI) 86093967113H55SRLF	UL94 V-0	All	96	3	Gold	Solder	Through Hole Right Angle	Polyester Thermoplastic	1.5 A	2.54 mm	0.1 in	Header Male Pins	-55 °C	125 °C		C
Amphenol ICC (FCI) 86093967113745AJLF	UL94 V-0	All	96	3	Gold		Through Hole Right Angle	Polyester Thermoplastic	1.5 A	2.54 mm	0.1 in	Header Male Pins	-55 °C	125 °C	3	C
Amphenol ICC (FCI) 86093967113H45ELF	UL94 V-0	All	96	3	Gold	Solder	Through Hole Right Angle	Polyester Thermoplastic	1.5 A	2.54 mm	0.1 in	Header Male Pins	-55 °C	125 °C	3	C

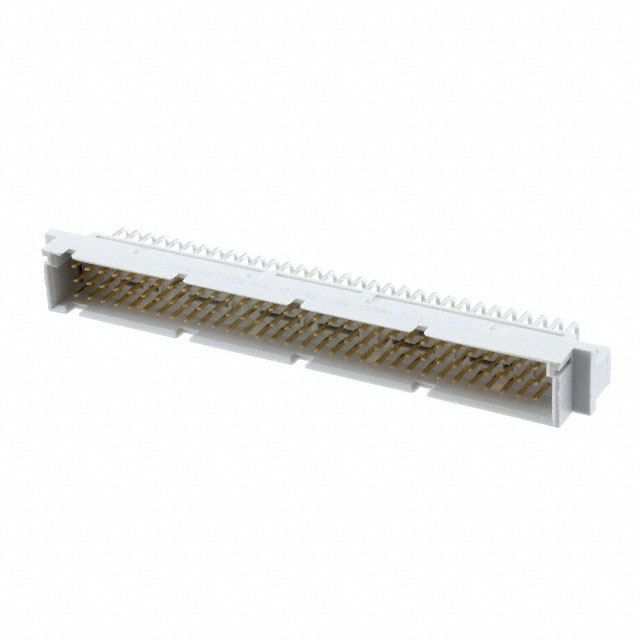

Amphenol ICC (FCI) 86093967113765ELF	UL94 V-0	All	96	3	Gold	Solder	Through Hole Right Angle	Polyester Thermoplastic	1.5 A	2.54 mm	0.1 in	Header Male Pins	-55 °C	125 °C	1	C
Amphenol ICC (FCI) 86093967113785NJLF

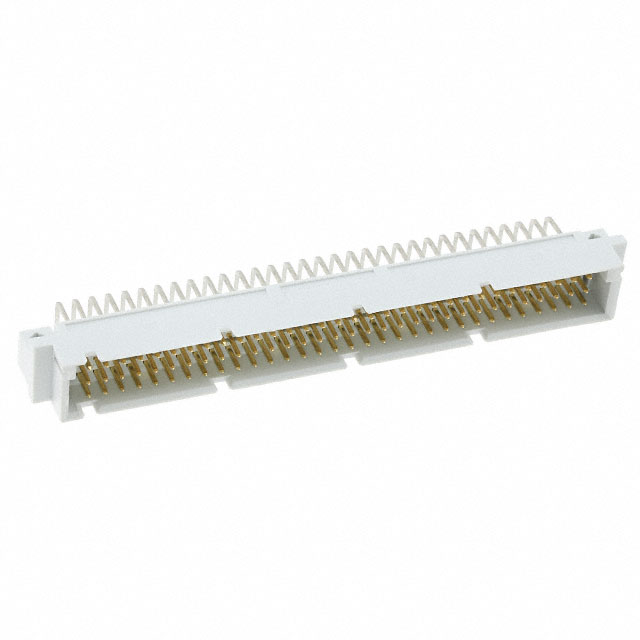

Amphenol ICC (FCI) 86093967113755ELF		All	96	3	Gold	Solder	Through Hole Right Angle	Polyester Thermoplastic Glass Filled		2.54 mm	0.1 in	Header Male Pins	-55 °C	125 °C		C
