PPPC251 Series

Catalog

CONN HDR 25POS 0.1 GOLD PCB R/A

Part	Contact Finish Thickness - Post	Contact Shape	Contact Material	Insulation Material	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Number of Positions	Contact Type	Voltage Rating	Material Flammability Rating	Number of Rows	Mounting Type	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Height	Insulation Height	Insulation Color	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Fastening Type	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]

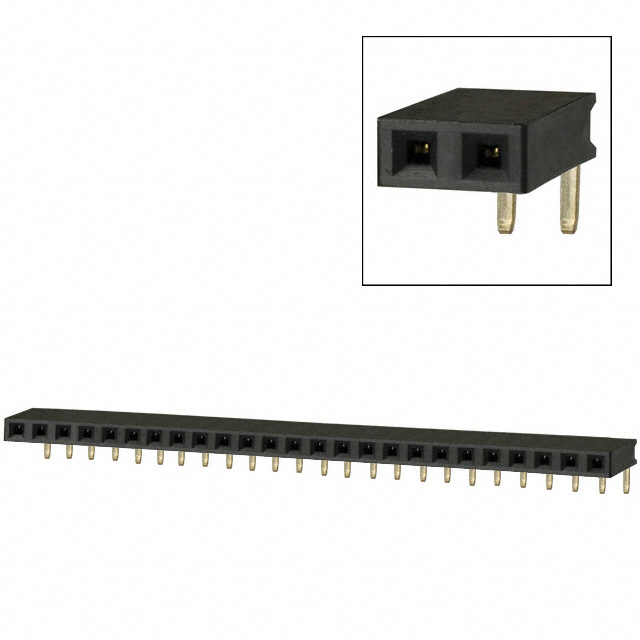

Sullins Connector Solutions PPPC251LGBN-RC	Flash	Square	Phosphor Bronze	Polyester	Gold	0.1 "	2.54 mm	Solder	All	25	Female Socket	250 V	UL94 V-0	1	Right Angle Through Hole	Flash	-40 C	105 ░C	Header	0.1 in	2.54 mm	Black	Gold	0.124 in	3.15 mm	Push-Pull	3 A
Sullins Connector Solutions PPPC251LFBN	Flash	Square	Phosphor Bronze	Polyester	Gold	0.1 "	2.54 mm	Solder	All	25	Female Socket	250 V	UL94 V-0	1	Through Hole	Flash	-40 C	105 ░C	Header	0.335 "	8.51 mm	Black	Gold			Push-Pull	3 A	0.126 "	3.2 mm

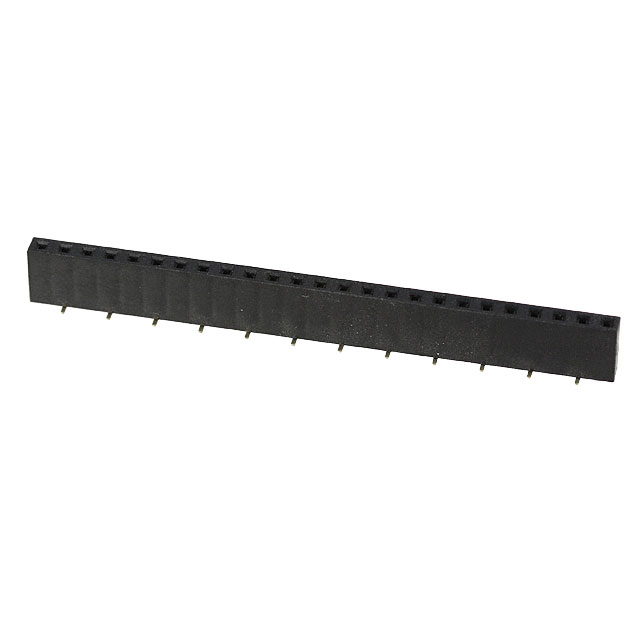

Sullins Connector Solutions PPPC251KFXC	Flash	Square	Phosphor Bronze	Polyester	Gold	0.1 "	2.54 mm	Solder	All	25	Female Socket	250 V	UL94 V-0	1	Surface Mount	Flash	-40 C	105 ░C	Header Top or Bottom Entry	0.28 in	7.1 mm	Black	Gold			Push-Pull	3 A
Sullins Connector Solutions PPPC251LGBN	Flash	Square	Phosphor Bronze	Polyester	Gold	0.1 "	2.54 mm	Solder	All	25	Female Socket	250 V	UL94 V-0	1	Right Angle Through Hole	Flash	-40 C	105 ░C	Header	0.1 in	2.54 mm	Black	Gold	0.124 in	3.15 mm	Push-Pull	3 A
